Infiniti FX35 / FX45. Manual - part 363





DTC P0130, P0150 A/F SENSOR 1

EC-213

< SERVICE INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1.

Start engine and warm it up to normal operating temperature.

2.

Let engine idle for 2 minutes.

3.

Check 1st trip DTC.

4.

If 1st trip DTC is detected, go to

EC-217, "Diagnosis Procedure"

.

PROCEDURE FOR MALFUNCTION B

CAUTION:

Always drive vehicle at a safe speed.

 With CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Select “A/F SEN1 (B1)” or “A/F SEN1 (B2)” in “DATA MONITOR” mode with CONSULT-III.

3.

Check “A/F SEN1 (B1)” or “A/F SEN1 (B2)” indication.
If the indication is constantly approx. 1.5V and does not fluctuates, go to

EC-217, "Diagnosis Procedure"

.

If the indication fluctuates around 1.5V, go to next step.

4.

Select “A/F SEN1 (B1) P1276” (for DTC P0130) or “A/F SEN1 (B2) P1286” (for DTC P0150) of “A/F
SEN1” in “DTC WORK SUPPORT” mode with CONSULT-III.

5.

Touch “START”.

6.

When the following conditions are met, “TESTING” will be displayed on the CONSULT-III screen.

If “TESTING” is not displayed after 20 seconds, retry from step 2.

7.

Release accelerator pedal fully.
NOTE:
Never apply brake during releasing the accelerator pedal.

8.

Make sure that “TESTING” changes to “COMPLETED”.
If “TESTING” changed to “OUT OF CONDITION”, retry from step 6.

9.

Make sure that “OK” is displayed after touching “SELF-DIAG RESULT”.
If “NG” is displayed, go to

EC-217, "Diagnosis Procedure"

.

Overall Function Check

INFOID:0000000001326049

PROCEDURE FOR MALFUNCTION B

Use this procedure to check the overall function of the A/F sensor 1 circuit. During this check, a 1st trip DTC
might not be confirmed.

With GST

1.

Start engine and warm it up to normal operating temperature.

2.

Drive the vehicle at a speed of 80 km/h (50 MPH) for a few minutes in the suitable gear position.

3.

Set D position, then release the accelerator pedal fully until the vehicle speed decreases to 50 km/h (30
MPH).
NOTE:
Never apply brake during releasing the accelerator pedal.

4.

Repeat steps 2 to 3 for five times.

5.

Stop the vehicle and turn ignition switch OFF.

6.

Wait at least 10 seconds and restart engine.

7.

Repeat steps 2 to 3 for five times.

8.

Stop the vehicle and connect GST to the vehicle.

9.

Make sure that no 1st trip DTC is displayed.
If 1st trip DTC is displayed, go to

EC-217, "Diagnosis Procedure"

.

ENG SPEED

1,100 - 3,200 rpm

VHCL SPEED SE

More than 64 km/h (40 MPH)

B/FUEL SCHDL

1.0 - 8.0 msec

Shift lever

D position

EC-214

< SERVICE INFORMATION >

[VQ35DE]

DTC P0130, P0150 A/F SENSOR 1

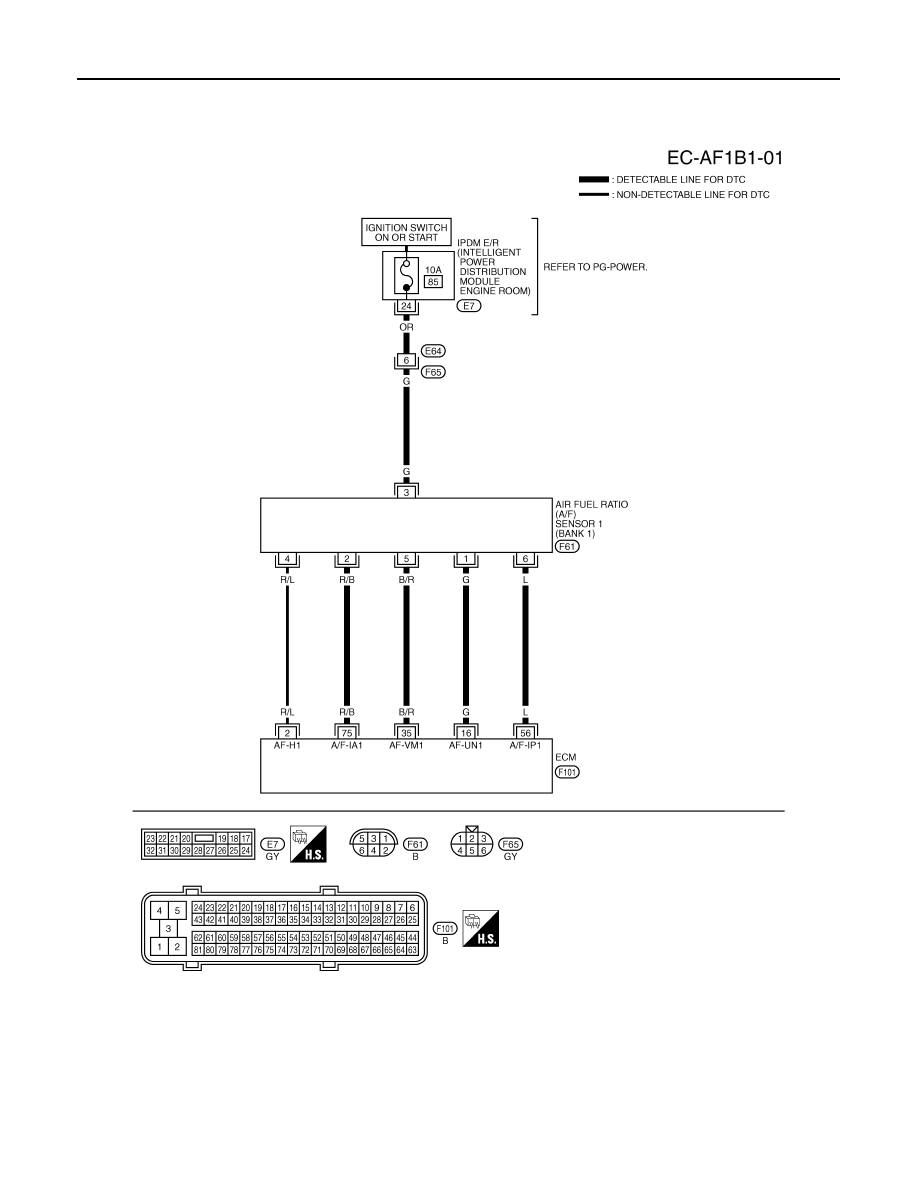

Wiring Diagram

INFOID:0000000001326050

BANK 1

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.

CAUTION:

TBWM1598E

DTC P0130, P0150 A/F SENSOR 1

EC-215

< SERVICE INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

2

R/L

A/F sensor 1 heater
(bank 1)

[Engine is running]
• Warm-up condition
• Idle speed

Approximately 5V

16

G

A/F sensor 1 (bank 1)

[Engine is running]
• Warm-up condition
• Idle speed

Approximately 3.1V

35

B/R

Approximately 2.6V

56

L

Approximately 2.3V

75

R/B

Approximately 2.3V

PBIB1584E

EC-216

< SERVICE INFORMATION >

[VQ35DE]

DTC P0130, P0150 A/F SENSOR 1

BANK 2

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TBWM1599E
