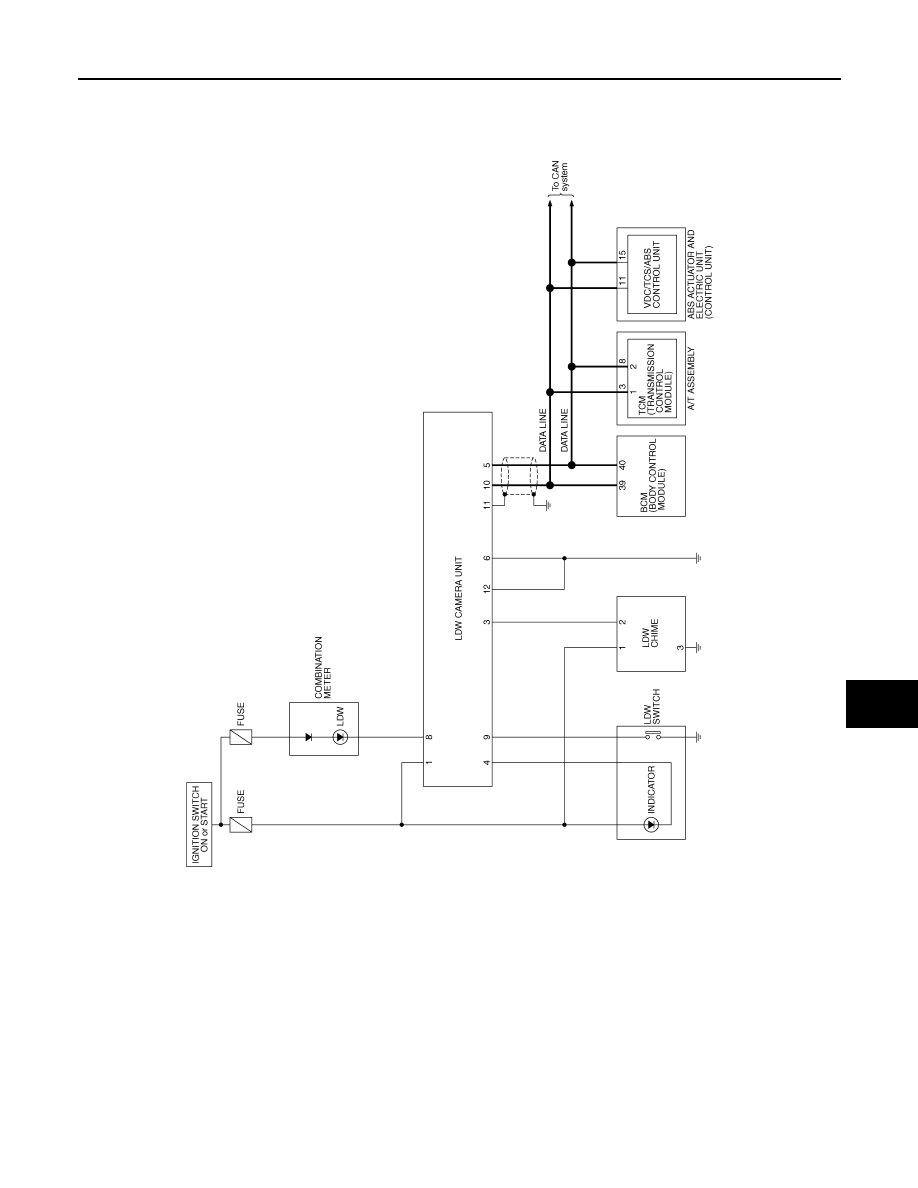

LANE DEPARTURE WARNING SYSTEM
DI-75
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
M
A
B
DI
N
O
P
Measure the wheel arch height. And calculate “Dh”.
NOTE:
“Dh” may be calculated as a minus value.
AIMING ADJUSTMENT
Operation Procedure
CAUTION:
• Perform the adjustment under unloaded vehicle condition.
• LDW indicator is turned off after the removal/installation, and blinks after replacement.
NOTE:
When the DTC (C1B01 CAM AIMING INCMP) is displayed on CONSULT-III screen, perform the aiming
adjustment after erasing the DTC.
1.
Select “Work Support” on LDW with CONSULT-III.
2.
Select “AUTO AIM”.
3.
Confirm following.
a.
The target should be accurately placed.
b.
The vehicle should be stopped.
4.
Select “Start” to perform aiming.
CAUTION:
Never Select “Start” when the target is not placed.
5.
Input “Dh”, and then select “Start”.
NOTE:
Check the value “Dh”. Refer to "VEHICLE HEIGHT CHECK".
CAUTION:
Never change “Ht” and “Dt”.
6.
Check it display item.
a.
“Normally Completed” is displayed, then selecting “Completion”.
b.
Perform the following services when displayed “SUSPENSION” or “ABNORMALLY COMPLETED”.
NOTE:
Replace camera unit if “SUSPENSION” is repeatedly indicated though the above two service is performed.
7.
Check if “Normally Completed” is displayed and close the aiming adjustment procedure by selecting
“End”.
Check After The Adjustment
1.
Perform self-diagnosis of LDW camera unit. Refer to
DI-81, "CONSULT-III Function (LDW)"
.
2.
Test the LDW system operation by running test. Refer to
.
Dh [mm] = (Hfl + Hfr)
÷
2
−
840
where,
Hfl: Front left wheel arch height [mm]
Hfr: Front right wheel arch height [mm]
SKIB3164E
Displays item
Service procedure
SUSPENSION
00H Routine not activated
Position the target appropriately again. Perform the aiming again.
Refer to "Camera Aiming Adjustment".
10H Writing error
ABNORMALLY COMPLETED
—
