Infiniti FX35 / FX45. Manual - part 241





BODY REPAIR

BL-231

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

BL

N

O

P

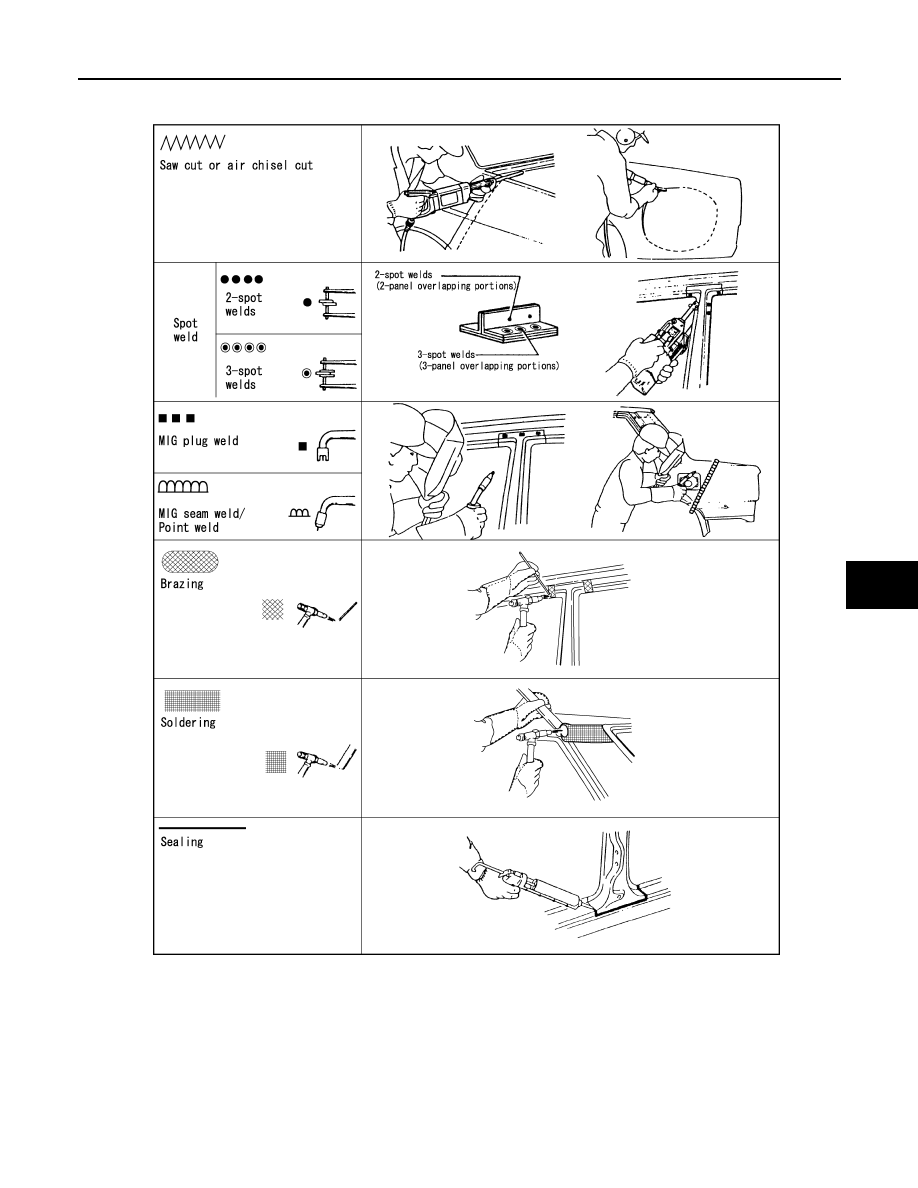

The symbols used in this section for cutting and welding / brazing operations are shown below.

PIIA0149E

BL-232

< SERVICE INFORMATION >

BODY REPAIR

• Front pillar butt joint can be determined anywhere within shaded

area as shown in the figure. The best location for the butt joint is at
position A due to the construction of the vehicle. Refer to the front
pillar section.

• Determine cutting position and record distance from the locating

indent. Use this distance when cutting the service part. Cut outer
front pillar over 60 mm above inner front pillar cut position.

• Prepare a cutting jig to make outer pillar easier to cut. Also, this will

permit service part to be accurately cut at joint position.

• An example of cutting operation using a cutting jig is as follows.
1.

Mark cutting lines.
A: Cut position of outer pillar
B: Cut position of inner pillar

2.

Align cutting line with notch on jig. Clamp jig to pillar.

3.

Cut outer pillar along groove of jig. (At position A)

4.

Remove jig and cut remaining portions.

5.

Cut inner pillar at position B in same manner.

PIIA0150E

PIIA0151E

PIIA0152E

PIIA0153E

BODY REPAIR

BL-233

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

BL

N

O

P

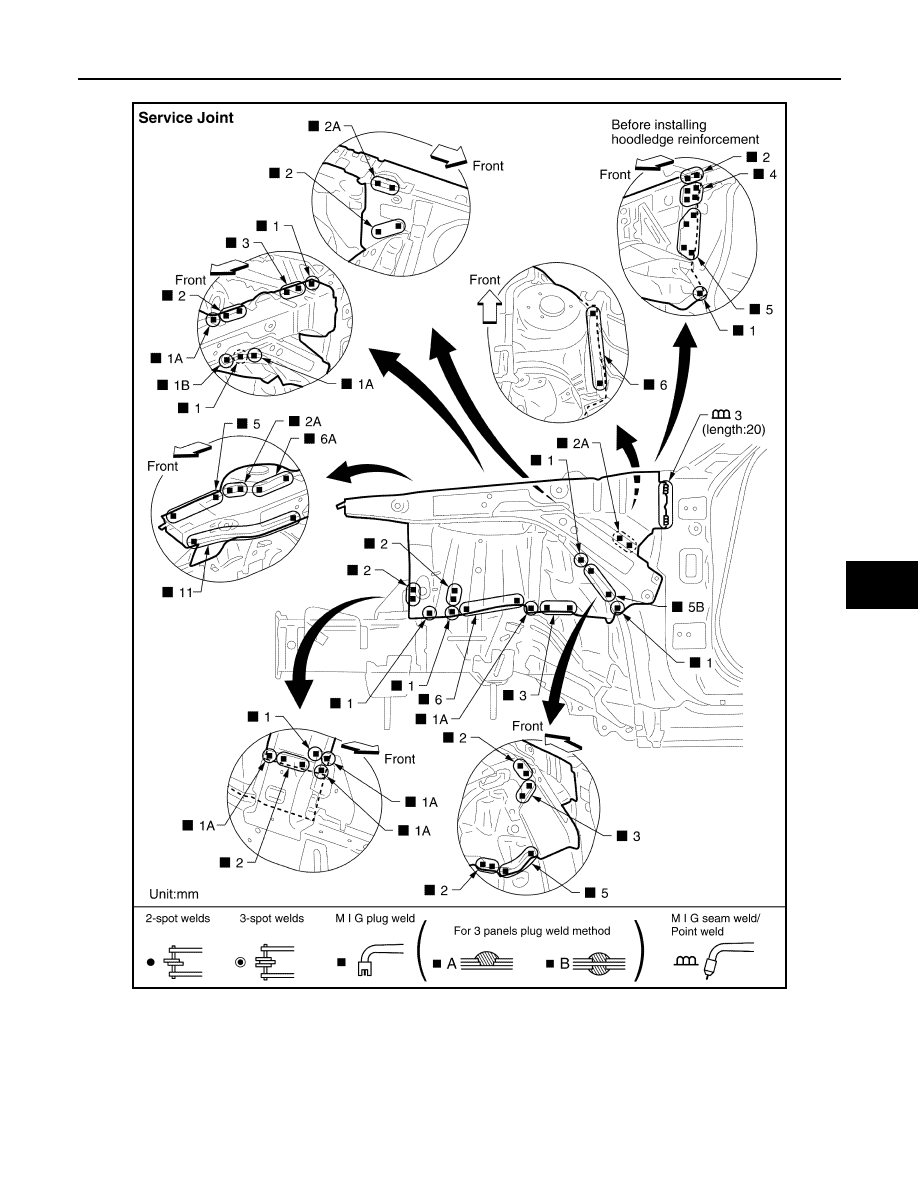

HOODLEDGE

FRONT SIDE MEMBER

SIIA2707E

Change parts

Hoodledge assembly (LH)

Hoodledge reinforcement (LH)

BL-234

< SERVICE INFORMATION >

BODY REPAIR

• Work after hoodledge has been removed.

SIIA2708E
