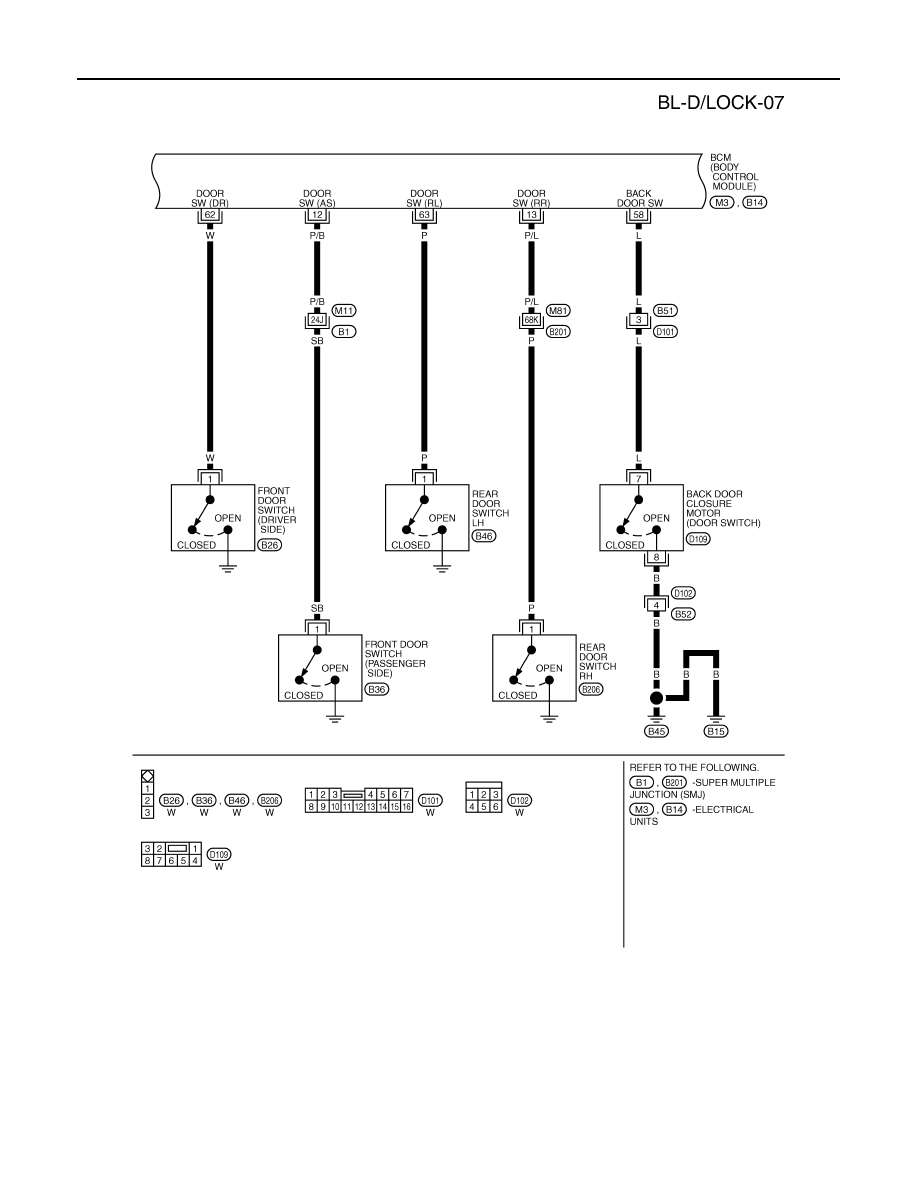

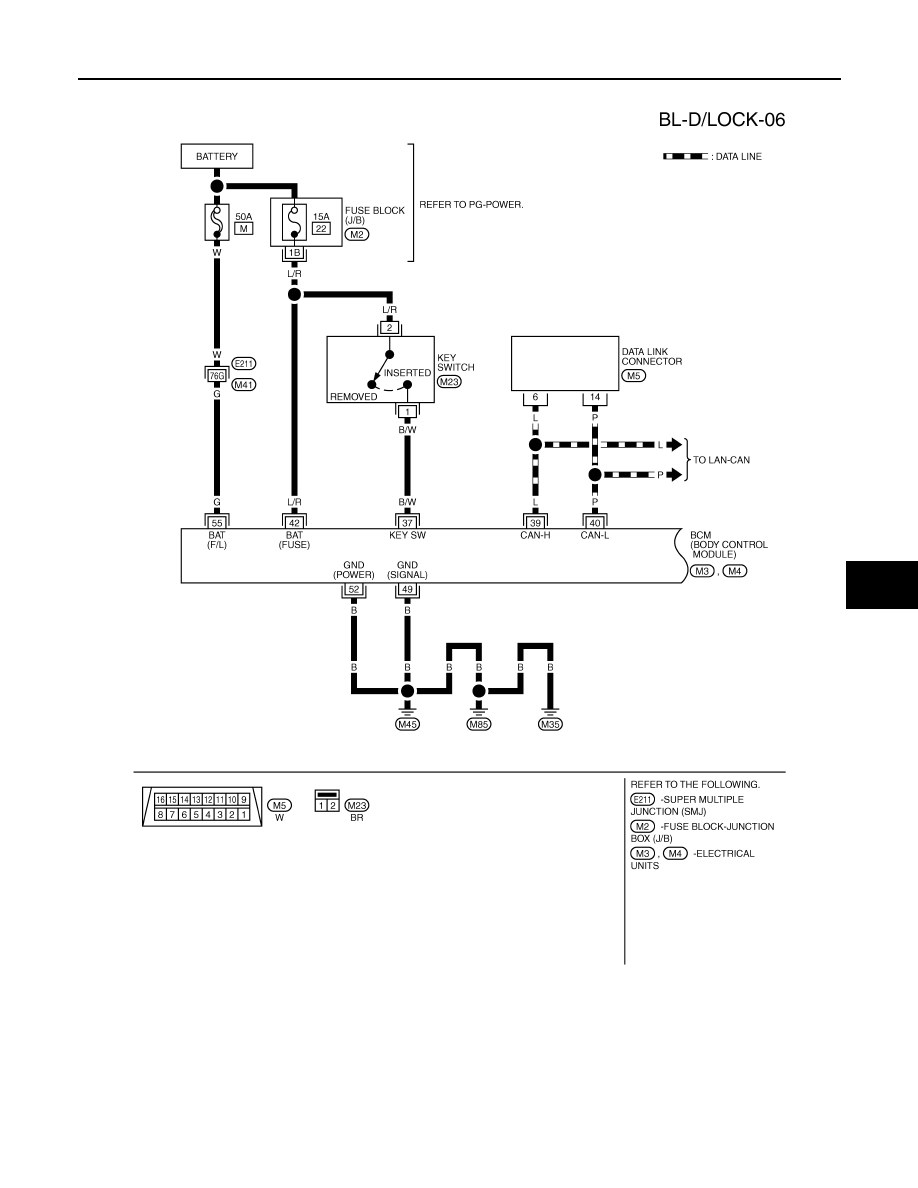

Wiring Diagram - D/LOCK -/Without Intelligent Key

INFOID:0000000001327796

TIWM1653E

BL-32

< SERVICE INFORMATION >

POWER DOOR LOCK SYSTEM

TIWM1654E

POWER DOOR LOCK SYSTEM

BL-33

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

BL

N

O

P

TIWM1655E

BL-34

< SERVICE INFORMATION >

POWER DOOR LOCK SYSTEM

TIWH0039E
