BCM (BODY CONTROL MODULE)

BCS-5

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BCS

N

O

P

BCM reads operation status of combination switch using combinations shown in table below.

NOTE:
Headlamp system has a dual switch.

Sample Operation: (When Lighting Switch 1ST Position Turned ON)

• When lighting switch 1ST position is turned ON, contact in combination switch turns ON. At this time if OUT-

PUT 4 transistor is activated, BCM detects that voltage changes in INPUT 5.

• When OUTPUT 4 transistor is ON, BCM detects that voltage changes in INPUT 5, and judges that lighting

switch 1ST position is ON. Then BCM sends tail lamp and clearance lamp request signal to IPDM E/R using
CAN communication.

• When OUTPUT 4 transistor is activated again, BCM detects that voltage changes in INPUT 5, and recog-

nizes that lighting switch 1ST position is continuously ON.

NOTE:
Each OUTPUT terminal transistor is activated at 10 ms intervals. Therefore after switch is turned ON, electri-
cal loads are activated with time delay. But this time delay is so short that it cannot be detected by human
senses.

Operation Mode

Combination switch reading function has operation modes shown below.

1.

Normal status

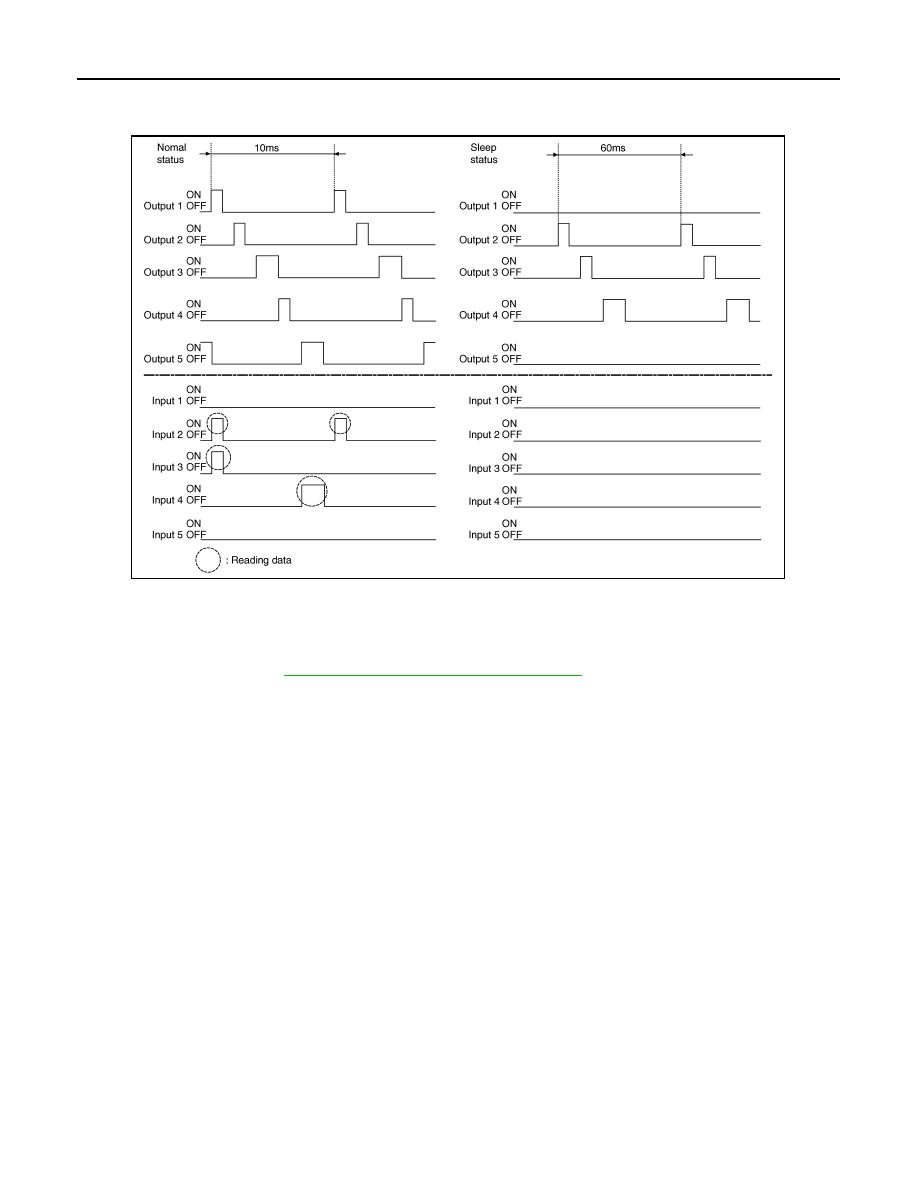

When BCM is not in sleep status, OUTPUT terminals (1-5) send out ON signal every 10 ms.

2.

Sleep status

SKIA4959E

PKID0854E

BCS-6

< SERVICE INFORMATION >

BCM (BODY CONTROL MODULE)

When BCM is in sleep status, transistors of OUTPUT 1 and 5 stop the output, and BCM enters low power
mode. Mean while OUTPUT 2, 3, and 4 send out ON signal every 60 ms, and accept input from lighting
switch system.

CAN COMMUNICATION CONTROL

CAN communication allows a high rate of information transmission through the two communication lines (CAN
L line, CAN H line) connecting the various control units in the system. Each control unit transmits/receives
data but selectively reads required data only. For details of signals that are transmitted/received by BCM via
CAN communication, refer to

LAN-43, "CAN System Specification Chart"

.

BCM STATUS CONTROL

BCM changes its status depending on the operation status in order to save power consumption.
1.

CAN communication status
• With ignition switch ON, CAN communicates with other control units normally.
• Control by BCM is being operated properly.
• When ignition switch is OFF, switching to sleep mode is possible.
• Even when ignition switch is OFF, if CAN communication with IPDM E/R and combination meter is

active, CAN communication status is active.

2.

Sleep transient status
• This status shuts down CAN communication when ignition switch is turned OFF.
• It transmits sleep request signal to IPDM E/R and combination meter.
• 2 seconds after CAN communication of all control units stops, sleep transient status is switched to CAN

communication inactive status.

3.

CAN communication inactive status
• With ignition switch OFF, CAN communication is not active.
• With ignition switch OFF, control performed only by BCM is active.
• 3 seconds after CAN communication of all control units stops, CAN communication inactive status is

switched to sleep status.

4.

Sleep status
• BCM is activated with low power mode.
• CAN communication is not active.
• When CAN communication operation is detected, it switches to CAN communication status.
• When a state of the following switches changes, it switches to CAN communication state.
- Key switch
- Hazard switch

PKIC4919E

BCM (BODY CONTROL MODULE)

BCS-7

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BCS

N

O

P

- Door lock/unlock switch
- Front door switch (driver side, passenger side)
- Rear door switch (LH, RH)
- Back door opener switch
- Combination switch (passing, lighting switch 1ST position, front fog lamp)
- Key fob (lock/unlock signal)
- Key cylinder switch
• When control performed only by BCM is required by switch, it shifts to CAN communication inactive

mode.

• Operation mode of combination switch reading function is changed.

SYSTEMS CONTROLLED BY BCM DIRECTLY

NOTE:

Power supply only. No system control.

SYSTEMS CONTROLLED BY BCM AND IPDM E/R

SYSTEMS CONTROLLED BY BCM AND COMBINATION METER

SYSTEMS CONTROLLED BY BCM AND INTELLIGENT KEY UNIT

SYSTEMS CONTROLLED BY BCM, COMBINATION METER AND IPDM E/R

System

Reference

Power door lock system

BL-21

Remote keyless entry system

BL-50

Power window system

NOTE

GW-15

Sunroof

NOTE

RF-10

Room lamp timer

LT-138

Rear wiper and washer system

WW-30

System

Reference

Panic alarm

BL-50

BL-76

Theft warning system

BL-163

IVIS (NATS)

BL-185

Headlamp

LT-5

Daytime light system

LT-32

Auto light system

LT-47

Front fog lamp

LT-66

• Parking, license plate, side marker and tail lamps
• Exterior lamp battery saver control

LT-118

Front wiper and washer system

WW-4

Rear window defogger

GW-60

System

Reference

Warning chime

DI-51

Turn signal and hazard warning lamps

LT-78

Tire pressure monitoring system

WT-10

System

Reference

Intelligent Key system

BL-76

BCS-8

< SERVICE INFORMATION >

BCM (BODY CONTROL MODULE)

MAJOR COMPONENTS AND CONTROL SYSTEM

System

Reference

Oil pressure warning lamp

DI-34

System

Input

Output

Remote control entry system

Key fob

• All-door locking actuator
• Fuel lid Lock actuator
• Turn signal lamp (LH, RH)
• Combination meter

Intelligent Key system

Intelligent Key unit

• All-door locking actuator
• Fuel lid Lock actuator
• Turn signal lamp (LH, RH)
• Combination meter

Power door lock system

• Power window main switch

 (door lock and unlock switch)

• Power window sub switch (passenger side)

(door lock and unlock switch)

All-door locking actuator

Power supply (IGN) to power window, sunroof

Ignition power supply

Power window and sunroof system

Power supply (BAT) to power window, sunroof
and power seat

Battery power supply

Power window, sunroof system and
power seat

Panic alarm

• Key switch
• Key fob

IPDM E/R

Theft warning system

• All-door switch
• Hood switch
• Key fob
• Power window main switch (door lock and

unlock switch)

• Power window sub switch (passenger side)

(door lock and unlock switch)

• IPDM E/R
• Security indicator lamp

Auto light system

• Optical sensor
• Combination switch
• Ignition switch

IPDM E/R

Exterior lamp battery saver control

• Ignition switch
• Combination switch

IPDM E/R

Headlamp

Combination switch

IPDM E/R

Daytime light system

• Combination meter
• ECM
• Combination switch
• Ignition switch

IPDM E/R

Parking, license plate, side marker and tail
lamps

Combination switch

IPDM E/R

Front fog lamp

Combination switch

IPDM E/R

Turn signal lamp

• Combination switch
• Ignition switch

• Turn signal lamp
• Combination meter

Hazard lamp

Hazard switch

• Turn signal lamp
• Combination meter

Room lamp timer

• Key switch
• Key fob
• Power window main switch (door lock and

unlock switch)

• Front door switch driver side
• All-door switch

Interior room lamp

Key warning chime

• Key switch
• Front door switch driver side

Combination meter
(warning buzzer)
