Infiniti FX35 / FX45. Manual - part 138

AV-6

< SERVICE INFORMATION >

AUDIO

Component Parts Location

INFOID:0000000001328673

SKIB8644E

AUDIO

AV-7

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

AV

N

O

P

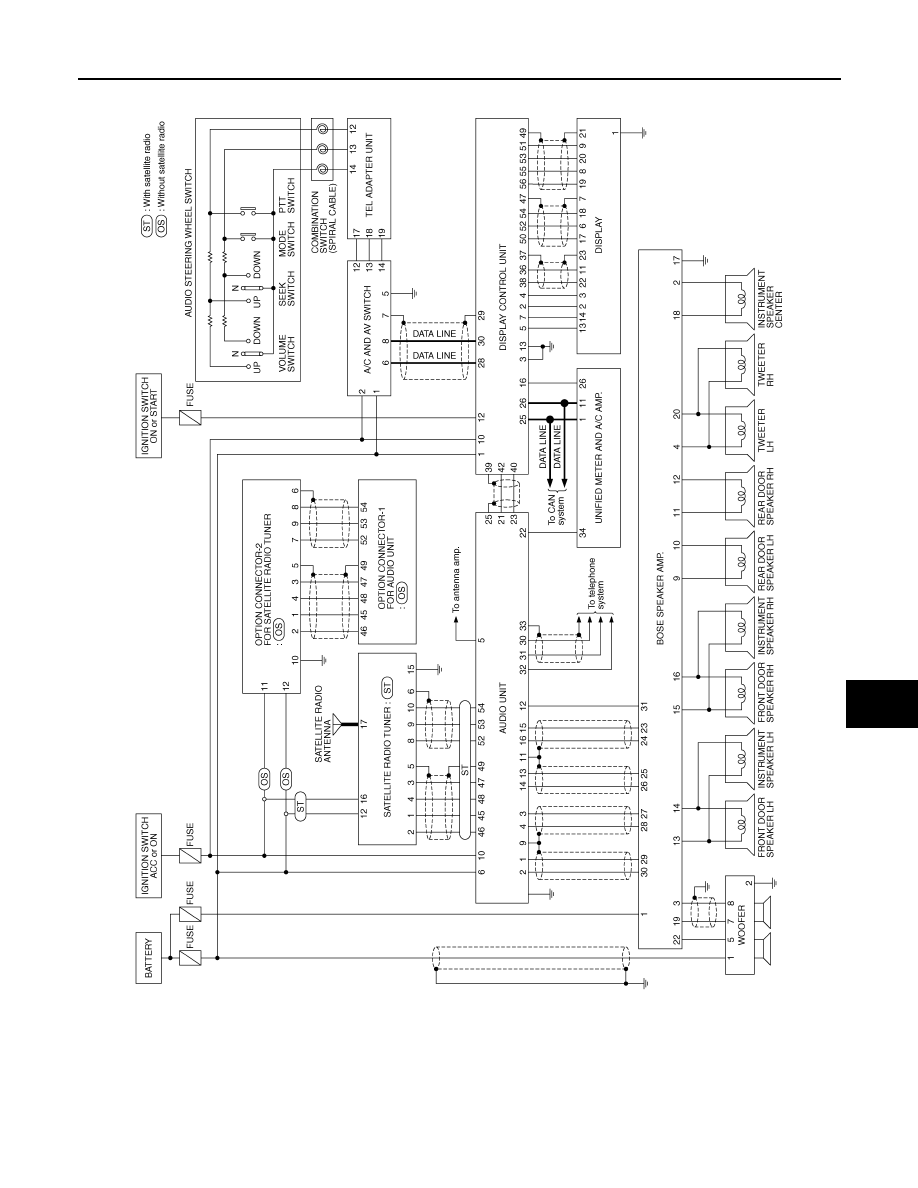

Schematic - AUDIO - / with Navigation System

INFOID:0000000001328674

TKWM4382E

AV-8

< SERVICE INFORMATION >

AUDIO

Wiring Diagram - AUDIO - / with Navigation System

INFOID:0000000001328675

TKWM4383E

AUDIO

AV-9

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

AV

N

O

P

TKWM4384E
