ATC-132

< SERVICE INFORMATION >

REFRIGERANT LINES

Removal and Installation of High-pressure Pipe 1 and 2 (Engine Compartment)

INFOID:0000000001328224

REMOVAL

1.

Remove low-pressure pipe 1. Refer to

ATC-131, "Removal and Installation of Low-Pressure Pipe 1

(Engine Compartment)"

.

2.

Remove high-pressure flexible hose and low-pressure flexible hose. Refer to

ATC-129, "Removal and

Installation of High-pressure Flexible Hose"

 and

ATC-128, "Removal and Installation of Low-Pressure

Flexible Hose"

.

3.

Remove high-pressure pipe 1 and 2 from clips.

4.

Disconnect one-touch joint between condenser and high-pres-
sure pipe 1.

a.

Set a disconnector (SST: 9253089908) on A/C piping.

b.

Slide a disconnector upward until it clicks.

c.

Slide A/C piping upward and disconnect it.

CAUTION:

Cap or wrap the joint of condenser and high-pressure pipe
1 with suitable material such as vinyl tape to avoid the entry
of air.

5.

Disconnect one-touch joint between high-pressure pipe 1 and 2.

a.

Set a disconnector (SST: 9253089908) on A/C piping.

b.

Slide a disconnector toward vehicle rear until it clicks.

c.

Slide A/C piping toward vehicle rear and disconnect it.

CAUTION:

Cap or wrap the joint of high-pressure pipe 1 and 2 with
suitable material such as vinyl tape to avoid the entry of air.

6.

Remove high-pressure pipe 1.

Low-pressure pipe 1 bracket and low-pressure flexible hose bracket mounting bolts

: 5.5 N·m (0.56 kg-m, 49 in-lb)

RJIA2070E

RJIA2071E

RJIA2072E

REFRIGERANT LINES

ATC-133

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ATC

N

O

P

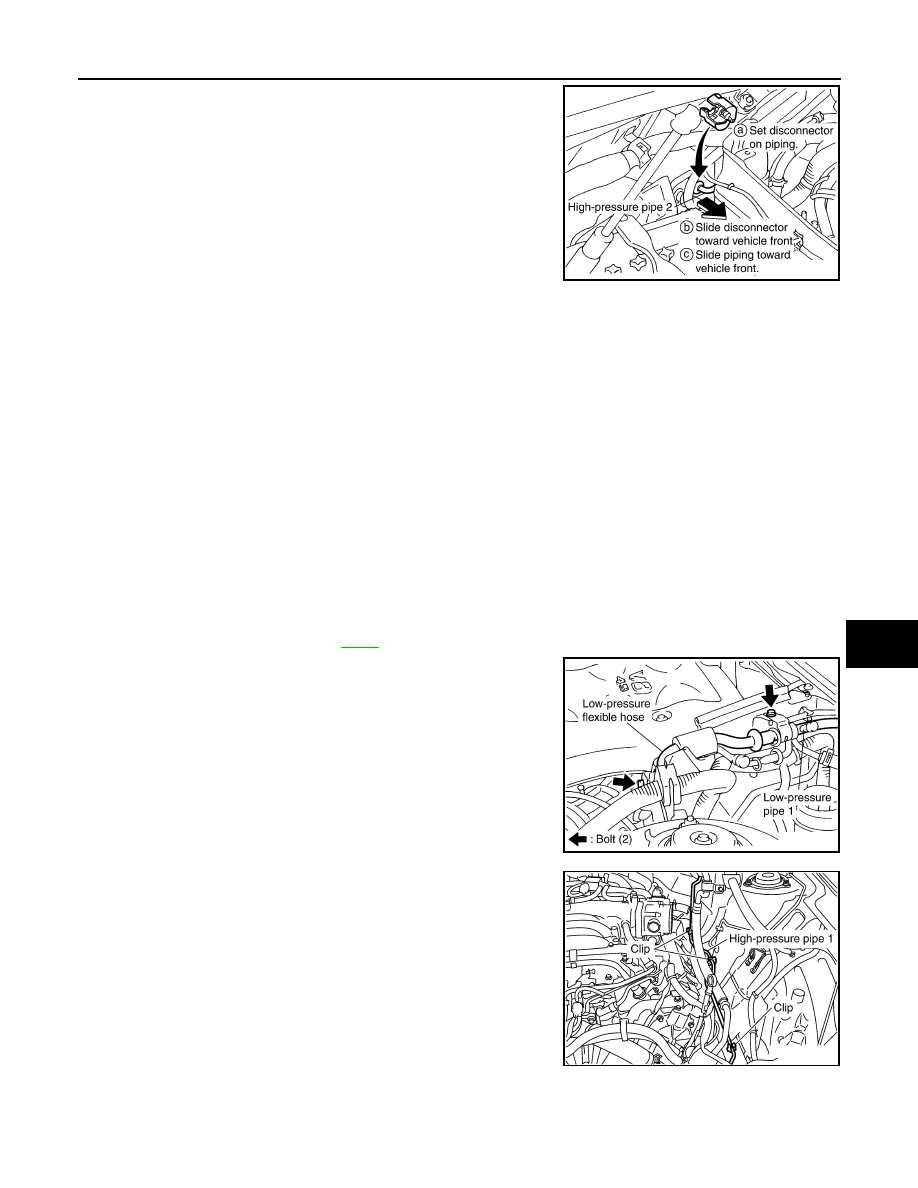

7.

Disconnect one-touch joint between high-pressure pipe 2 and 3.

a.

Set a disconnector (SST: 9253089908) on A/C piping.

b.

Slide a disconnector toward vehicle front until it clicks.

c.

Slide A/C piping toward vehicle front and disconnect it.

8.

Remove high-pressure pipe 2.

CAUTION:

Cap or wrap the joint of high-pressure pipe 2 and 3 with
suitable material such as vinyl tape to avoid the entry of air.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of high-pressure pipe 1 and 2 with new ones, and then apply compressor oil to it

when installing it.

• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• When recharging refrigerant, check for leaks.

Removal and Installation of Low-Pressure Pipe 2 and High-pressure Pipe 3

INFOID:0000000001328225

REMOVAL

1.

Set the temperature (passenger side) at 18

°

C (60

°

F), and then disconnect the battery cable from the neg-

ative terminal.

2.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

3.

Remove cowl top cover. Refer to

EI-23

.

4.

Remove low-pressure pipe 1 bracket and low-pressure flexible
hose bracket mounting bolts.

5.

Remove high-pressure pipe 1 from vehicle clips.

RJIA2073E

RJIA2068E

RJIA2070E

ATC-134

< SERVICE INFORMATION >

REFRIGERANT LINES

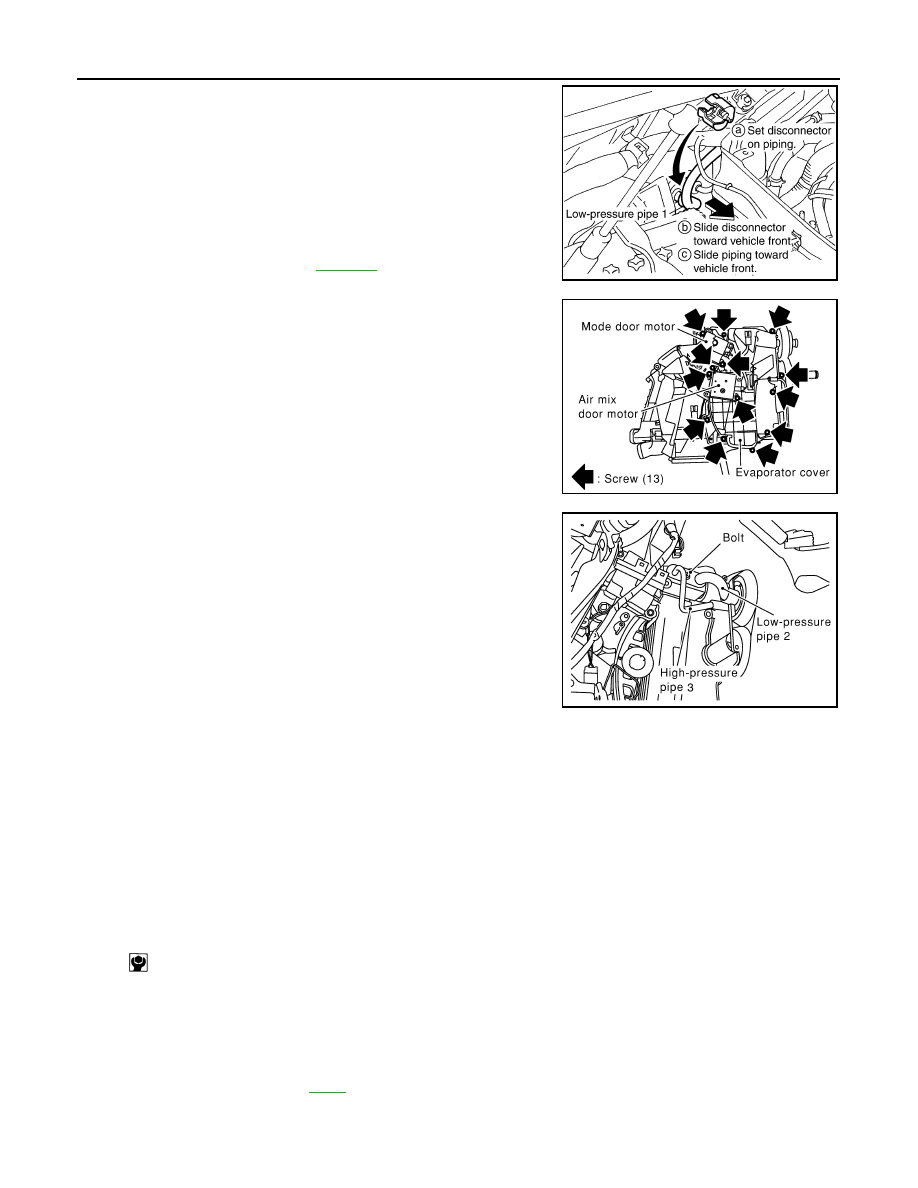

6.

Disconnect one-touch joints.

a.

Set a disconnector [high-pressure side (SST: 9253089908), low-
pressure side (SST: 9253089916)] on A/C piping.

b.

Slide a disconnector toward vehicle front until it clicks.

c.

Slide A/C piping toward vehicle front and disconnect it.

CAUTION:

Cap or wrap the joint of low-pressure pipe 1 and high-pres-
sure pipe 2 with suitable material such as vinyl tape to
avoid the entry of air.

7.

Remove blower unit. Refer to

ATC-103

.

8.

Remove mounting screws, and then remove air mix door motor
(passenger side), mode door motor and evaporator cover.

9.

Remove mounting bolt, and then remove low-pressure pipe 2
and high-pressure pipe 3.

CAUTION:

Cap or wrap the joint of expansion valve with suitable mate-
rial such as vinyl tape to avoid the entry of air.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of low-pressure pipe 1, 2 and high-pressure pipe 2, 3 with new ones, and then apply

compressor oil to it when installing it.

• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• When recharging refrigerant, check for leaks.

Removal and Installation of Liquid Tank

INFOID:0000000001328226

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove front grille. Refer to

EI-22

.

3.

Clean liquid tank and its surrounding area, and remove dust and rust from liquid tank.

CAUTION:

RJIA2037E

RJIA0940E

RJIA2038E

Low-pressure pipe 1 bracket and low-pressure flexible hose bracket mounting bolts

: 5.5 N·m (0.56 kg-m, 49 in-lb)

REFRIGERANT LINES

ATC-135

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ATC

N

O

P

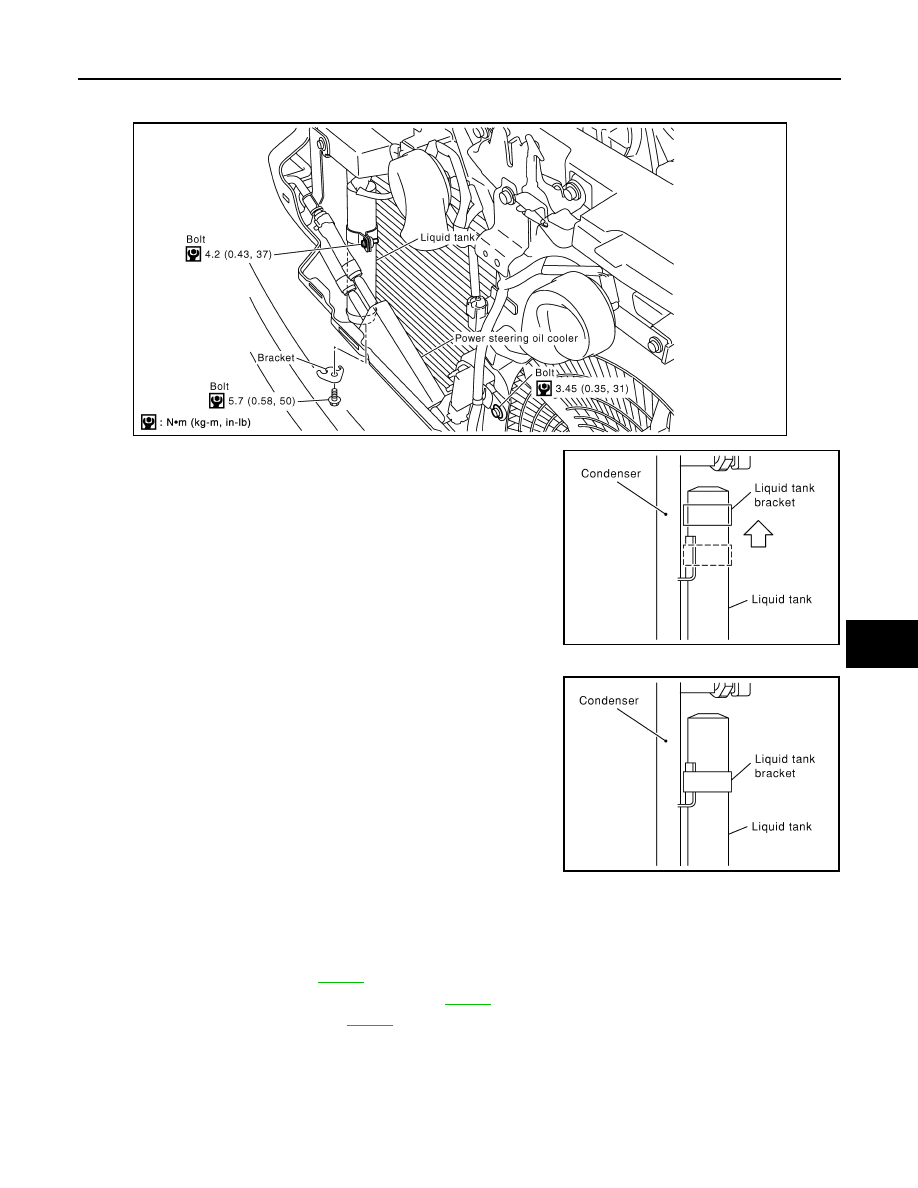

Be sure to clean carefully.

4.

Remove liquid tank and power steering oil cooler mounting bolts.

5.

Lift liquid tank bracket upward. Remove liquid tank bracket from
protruding part of condenser.

6.

Slide liquid tank upward, and then remove liquid tank.

INSTALLATION

 Install liquid tank, and then install liquid tank bracket on condenser.

CAUTION:

• Make sure liquid tank bracket is securely installed at protru-

sion of condenser. (Make sure liquid tank bracket does not
move to a position below center of liquid tank.)

• Replace O-rings of condenser pipe with new ones, and then

apply compressor oil to it when installing it.

• When recharging refrigerant, check for leaks.

Removal and Installation of Condenser

INFOID:0000000001328227

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove cooling fan. Refer to

CO-48

 (VK45DE).

3.

Remove radiator cooling fan assembly. Refer to

CO-13

 (VQ35DE).

4.

Remove radiator shroud. Refer to

CO-40

 (VK45DE).

SJIA1644E
