REFRIGERANT LINES

REFRIGERANT LINES

HFC-134a (R-134a) Service Procedure

INFOID:0000000001328217

SETTING OF SERVICE TOOLS AND EQUIPMENT

Discharging Refrigerant

WARNING:

Avoid breathing A/C refrigerant and lubricant vapor or mist. Exposure may irritate eyes, nose and
throat. Remove HFC-134a (R-134a) from A/C system using certified service equipment meeting
requirements of SAE J-2210 [HFC-134a (R-134a) recycling equipment] or J-2209 [HFC-134a (R-134a)
recovery equipment]. If accidental system discharge occurs, ventilate work area before resuming ser-
vice. Additional health and safety information may be obtained from refrigerant and lubricant manu-
facturers.

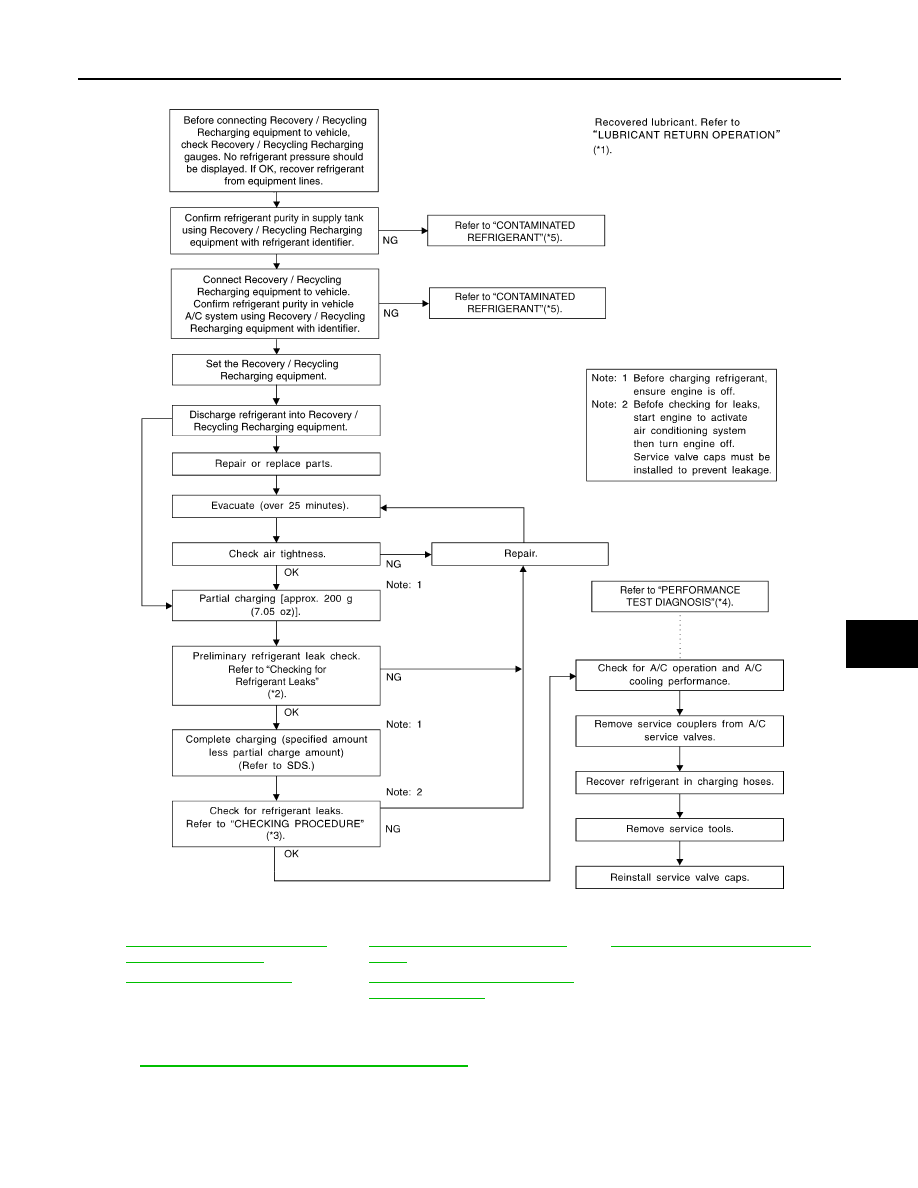

Evacuating System and Charging Refrigerant

WJIA0614E

WJIA0615E

REFRIGERANT LINES

ATC-121

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ATC

N

O

P

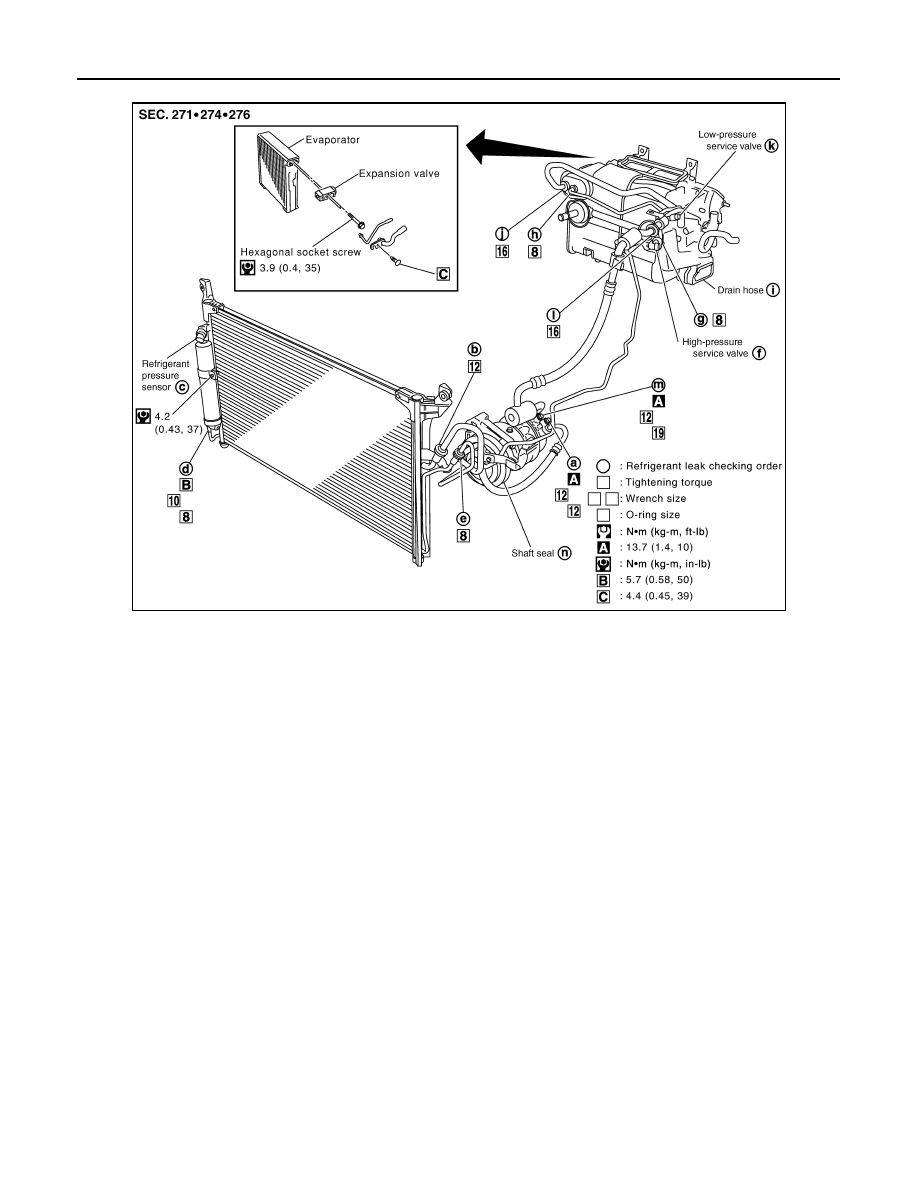

Component

INFOID:0000000001328218

Refer to

ATC-5, "Precaution for Refrigerant Connection"

.

*1

ATC-22, "Maintenance of Lubricant
Quantity in Compressor"

*2

ATC-138, "Checking of Refrigerant
Leaks"

*3

ATC-139, "Electrical Leak Detector"

*4

ATC-75, "Insufficient Cooling"

*5

ATC-4, "Precaution for Working with
HFC-134a (R-134a)"

SJIA1275E

ATC-122

< SERVICE INFORMATION >

REFRIGERANT LINES

VQ35DE

SJIA1734E

REFRIGERANT LINES

ATC-123

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ATC

N

O

P

VK45DE

Removal and Installation of Compressor

INFOID:0000000001328219

REMOVAL

VQ35DE

SJIA1735E

SJIA1643E
