Infiniti FX35 / FX45. Manual - part 130





ATC-116

< SERVICE INFORMATION >

DUCTS AND GRILLES

DUCTS AND GRILLES

Removal and Installation

INFOID:0000000001328216

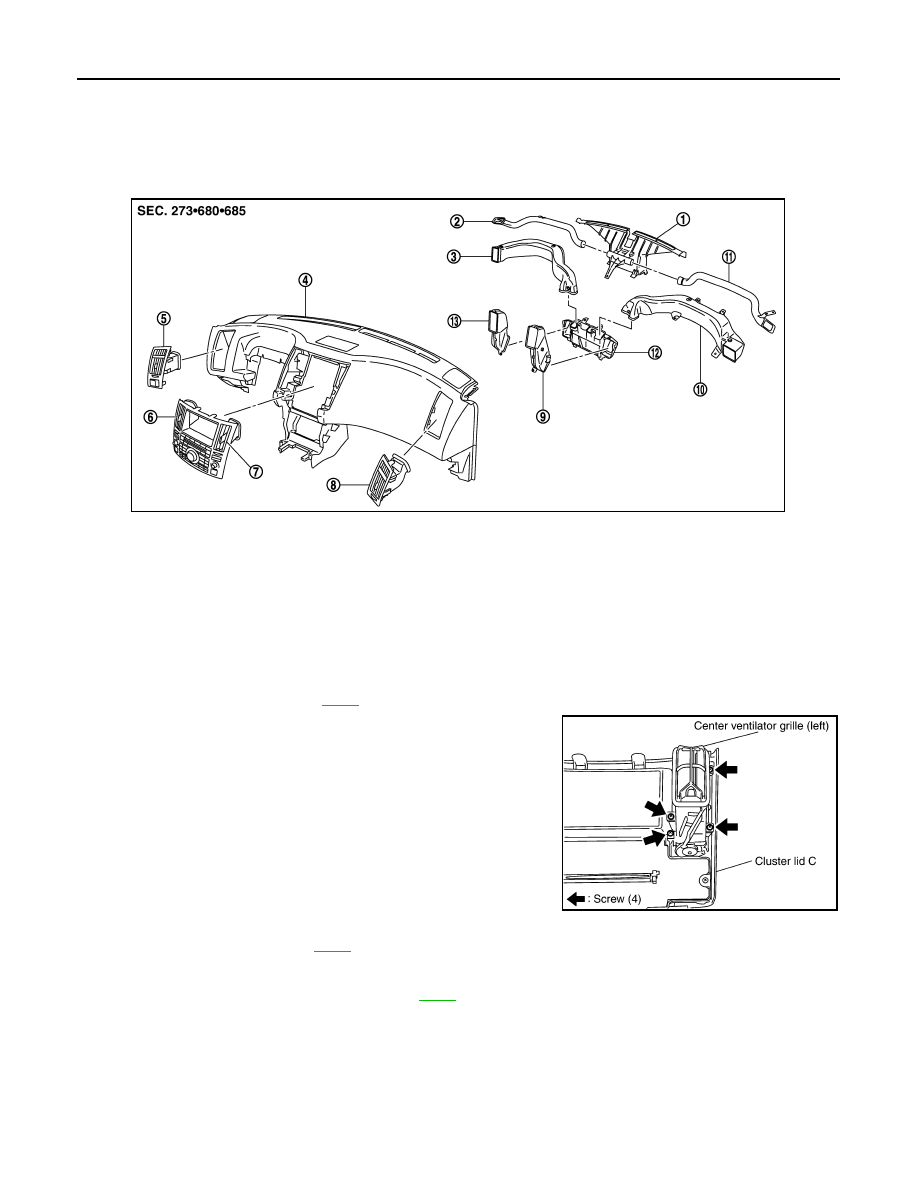

COMPONENT LAYOUT

REMOVAL

Removal of Center Ventilator Grilles

1.

Remove cluster lid C. Refer to

IP-10

.

2.

Remove mounting screws, and then remove center ventilator
grilles.

Removal of Side Ventilation

Remove side ventilation. Refer to

IP-10

.

Removal of Rear Ventilator Grilles

1.

Remove center pillar lower garnish. Refer to

IP-10

.

1.

Defroster nozzle

2.

Side defroster duct (left)

3.

Side ventilator duct (left)

4.

Instrument panel

5.

Side ventilation (left)

6.

Center ventilator grille (left)

7.

Center ventilator grille (right)

8.

Side ventilation (right)

9.

Center ventilator duct (right)

10. Side ventilator duct (right)

11. Side defroster duct (right)

12. Center ventilator duct

13. Center ventilator duct (left)

PJIA0166E

RJIA2048E

DUCTS AND GRILLES

ATC-117

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ATC

N

O

P

2.

Remove mounting clips, and then remove rear ventilator grilles.

Removal of Defroster Nozzle, Ducts and Ventilator Ducts

1.

Remove instrument panel and pad. Refer to

IP-10

.

2.

Remove mounting screws, and then remove side defroster ducts.

3.

Remove mounting screws, and then remove defroster nozzle.

4.

Remove mounting screws, and then remove side ventilator ducts (right and left).

5.

Remove mounting screws, and then remove center ventilator duct.

Removal of Rear Ventilator Ducts

1.

Remove center console. Refer to

IP-10

.

2.

Slide rear ventilator duct 2 toward vehicle front, and then remove it.

3.

Remove floor carpet. Refer to

EI-41

.

RJIA2050E

RJIA2051E

SJIA1227E

ATC-118

< SERVICE INFORMATION >

DUCTS AND GRILLES

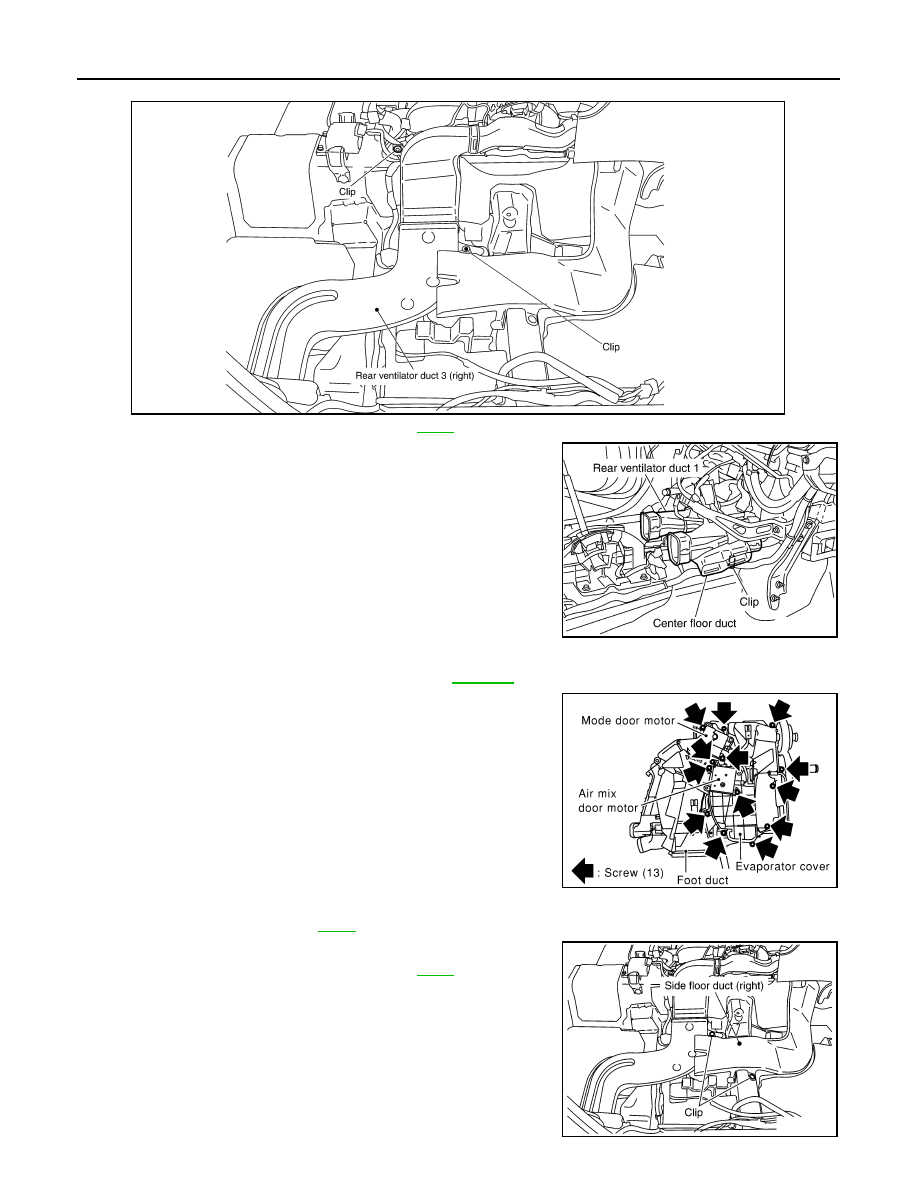

4.

Remove mounting clips, and then remove rear ventilator duct 3.

5.

Remove instrument panel and pad. Refer to

IP-10

.

6.

Remove rear ventilator duct 1 with center floor duct attached.

7.

Remove rear ventilator duct 1 from center floor duct.

Removal of Foot Ducts

1.

Remove heater & cooling unit assembly. Refer to

ATC-108

.

2.

Remove mounting screws, and then remove air mix door motor
(right), mode door motor, evaporator cover and foot duct (right).

3.

Remove foot duct (left).

Removal of Floor Ducts

1.

Remove floor carpet. Refer to

EI-41

.

2.

Remove mounting clips, and then remove side floor ducts.

3.

Remove instrument panel and pad. Refer to

IP-10

.

RJIA2053E

RJIA2054E

RJIA0962E

RJIA2055E

DUCTS AND GRILLES

ATC-119

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ATC

N

O

P

4.

Remove mounting clip, and then remove center floor duct with
rear ventilator duct 1 attached.

5.

Remove center floor duct from rear ventilator duct 1.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA2054E
