TROUBLE DIAGNOSIS

ATC-85

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ATC

N

O

P

Memory Function

INFOID:0000000001328195

SYMPTOM: Memory function does not operate.

INSPECTION FLOW

*1

ATC-50, "Operational Check"

*2

ATC-52, "Power Supply and Ground
Circuit for Auto Amp"

*3

ATC-32, "How to Perform Trouble Di-
agnosis for Quick and Accurate Re-
pair"

SJIA1803E

ATC-86

< SERVICE INFORMATION >

TROUBLE DIAGNOSIS

Ambient Sensor Circuit

INFOID:0000000001328196

COMPONENT DESCRIPTION

Ambient Sensor

The ambient sensor is attached on the hood lock stay. It detects
ambient temperature and converts it into a resistance value which is
then input into the unified meter and A/C amp.

AMBIENT TEMPERATURE INPUT PROCESS

The unified meter and A/C amp. includes a processing circuit for the ambient sensor input. However, when the
temperature detected by the ambient sensor increases quickly, the processing circuit retards the unified meter
and A/C amp. function. It only allows the unified meter and A/C amp. to recognize an ambient temperature
increase of 0.33

°

C (0.6

°

F) per 100 seconds.

As an example, consider stopping for a few minutes after high speed driving. Although the actual ambient tem-
perature has not changed, the temperature detected by the ambient sensor will increase. This is because the
heat from the engine compartment can radiate to the front grille area, location of the ambient sensor.

DIAGNOSIS PROCEDURE FOR AMBIENT SENSOR

*1

ATC-52, "Power Supply and Ground
Circuit for Auto Amp"

*2

ATC-50, "Operational Check"

*3

ATC-43, "Self-Diagnosis Function"

SJIA1595E

RJIA2016E

TROUBLE DIAGNOSIS

ATC-87

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ATC

N

O

P

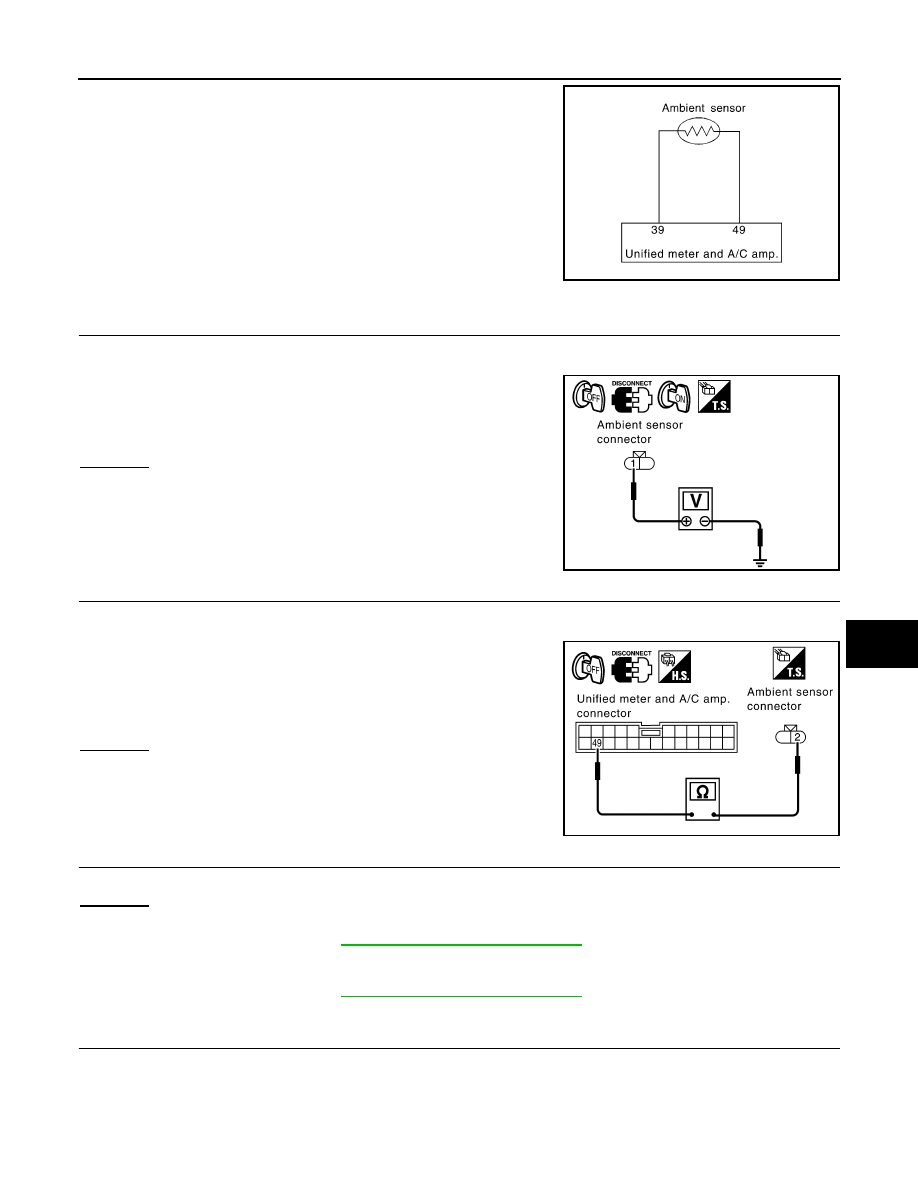

SYMPTOM: Ambient sensor circuit is open or shorted. (21 or

21 is

indicated on unified meter and A/C amp. as a result of performing
self-diagnosis STEP-2.)

1.

CHECK VOLTAGE BETWEEN AMBIENT SENSOR AND GROUND

1.

Disconnect ambient sensor connector.

2.

Turn ignition switch ON.

3.

Check voltage between ambient sensor harness connector E34
terminal 1 and ground.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 4.

2.

CHECK CIRCUIT CONTINUITY BETWEEN AMBIENT SENSOR AND UNIFIED METER AND A/C AMP.

1.

Turn ignition switch OFF.

2.

Disconnect unified meter and A/C amp. connector.

3.

Check continuity between ambient sensor harness connector
E34 terminal 2 and unified meter and A/C amp. harness connec-
tor M57 terminal 49.

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness or connector.

3.

CHECK AMBIENT SENSOR

Refer to "Ambient Sensor".

OK or NG

OK

>> 1.

Replace unified meter and A/C amp.

2.

Go to self-diagnosis

ATC-43, "Self-Diagnosis Function"

 and perform self-diagnosis STEP-2.

Confirm that code No. 20 is displayed.

NG

>> 1.

Replace ambient sensor.

2.

Go to self-diagnosis

ATC-43, "Self-Diagnosis Function"

 and perform self-diagnosis STEP-2.

Confirm that code No. 20 is displayed.

4.

CHECK CIRCUIT CONTINUITY BETWEEN AMBIENT SENSOR AND UNIFIED METER AND A/C AMP.

1.

Turn ignition switch OFF.

2.

Disconnect unified meter and A/C amp. connector.

RJIA1461E

1 – Ground

: Approx. 5 V

RJIA2017E

2 – 49

: Continuity should exist.

RJIA2018E
