AT-324

< SERVICE INFORMATION >

ASSEMBLY

5.

Tighten oil pump mounting bolts to specified torque. Refer to

AT-

249, "Component"

.

CAUTION:

Apply ATF to oil pump bushing.

6.

Install O-ring to input clutch assembly.

CAUTION:

• Do not reuse O-ring.
• Apply ATF to O-ring.

7.

Install converter housing to transmission case, and then tighten
converter housing mounting bolts (1) to the specified torque.
Refer to

AT-249, "Component"

.



:  Bolt  (8)

CAUTION:

Do not reuse self-sealing bolt (2).

8.

Make sure that brake band does not close turbine revolution
sensor hole.

9.

Install control valve with TCM.

a.

Connect TCM connector and park/neutral position switch con-
nector.

SCIA2300E

SCIA5011E

SCIA7985E

SCIA5034E

SCIA5449E

ASSEMBLY

AT-325

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

b.

Install A/T assembly harness connector from control valve with
TCM.

c.

Connect TCM connectors.

d.

Install O-ring to A/T assembly harness connector.

CAUTION:

• Do not reuse O-ring.
• Apply ATF to O-ring.

e.

Install A/T fluid temperature sensor 2 to bracket.

f.

Install A/T fluid temperature sensor 2 (with bracket) in control
valve with TCM, and then tighten A/T fluid temperature sensor 2
mounting bolts to the specified torque. Refer to

AT-249, "Com-

ponent"

.

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve.

SCIA5450E

SCIA5447E

SCIA5155E

SCIA5264E

SCIA5301E

AT-326

< SERVICE INFORMATION >

ASSEMBLY

g.

Install control valve with TCM in transmission case.

CAUTION:

• Make sure that turbine revolution sensor securely installs

turbine revolution sensor hole.

• Hang down revolution sensor harness toward outside so

as not to disturb installation of control valve with TCM.

• Adjust A/T assembly harness connector of control valve

with TCM to terminal hole of transmission case.

• Assemble it so that manual valve cutout is engaged with

manual plate projection.

h.

Install bolts A, B and C to control valve with TCM.

 : Front

i.

Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After
that tighten them in order (1

 2

 3), and then tighten other

bolts to the specified torque. Refer to

AT-249, "Component"

.

: Front

SCIA5034E

SCIA5035E

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8077E

SCIA8078E

ASSEMBLY

AT-327

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

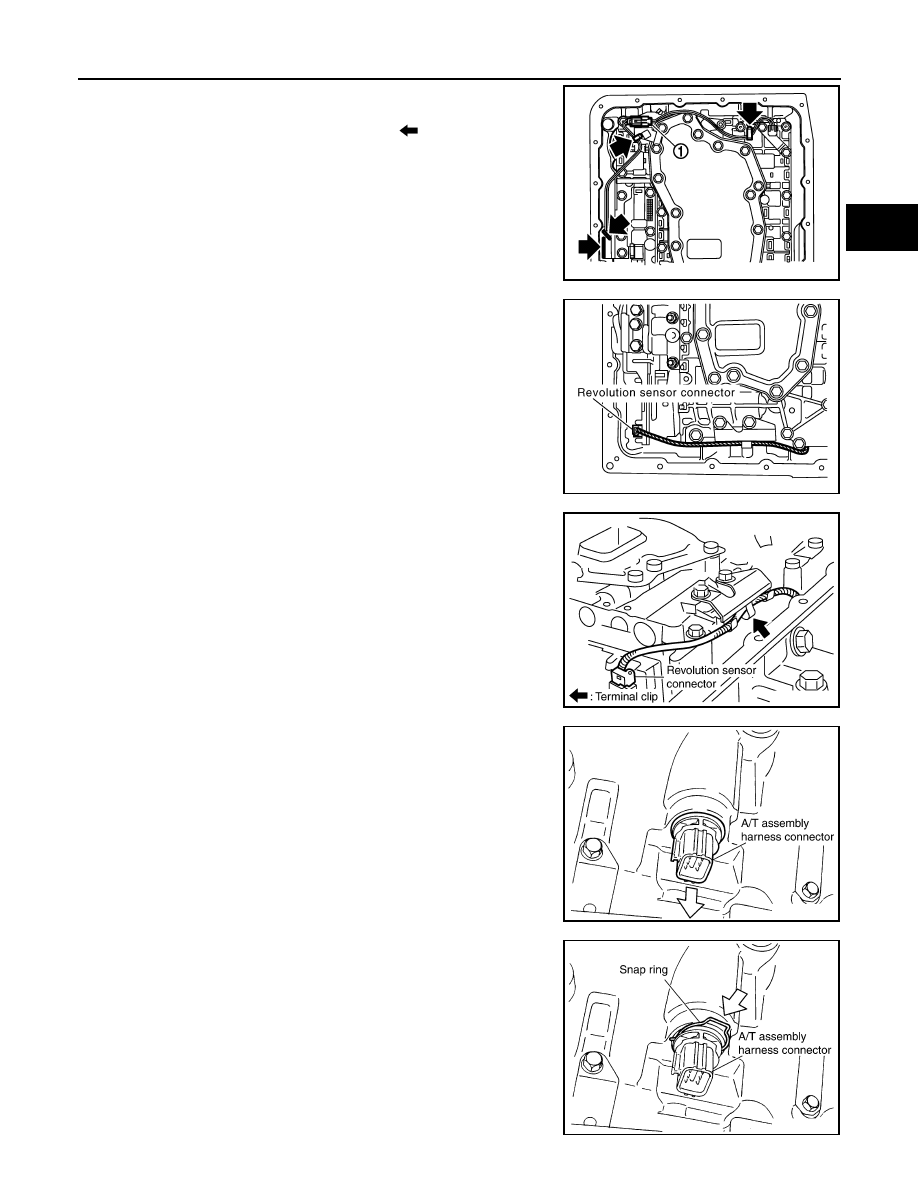

10. Connect A/T fluid temperature sensor 2 connector (1).

11. Securely fasten terminal cord assembly and A/T fluid tempera-

ture sensor 2 harness with terminal clips (

).

12. Connect revolution sensor connector.

13. Securely fasten revolution sensor 2 harness with terminal clip.

14. Pull down A/T assembly harness connector.

CAUTION:

Be careful not to damage connector.

15. Install snap ring to A/T assembly harness connector.

SCIA8069E

SCIA7524E

SCIA7526E

SCIA5299E

SCIA5300E
