Infiniti FX35 / FX45. Manual - part 96

AT-312

< SERVICE INFORMATION >

ASSEMBLY

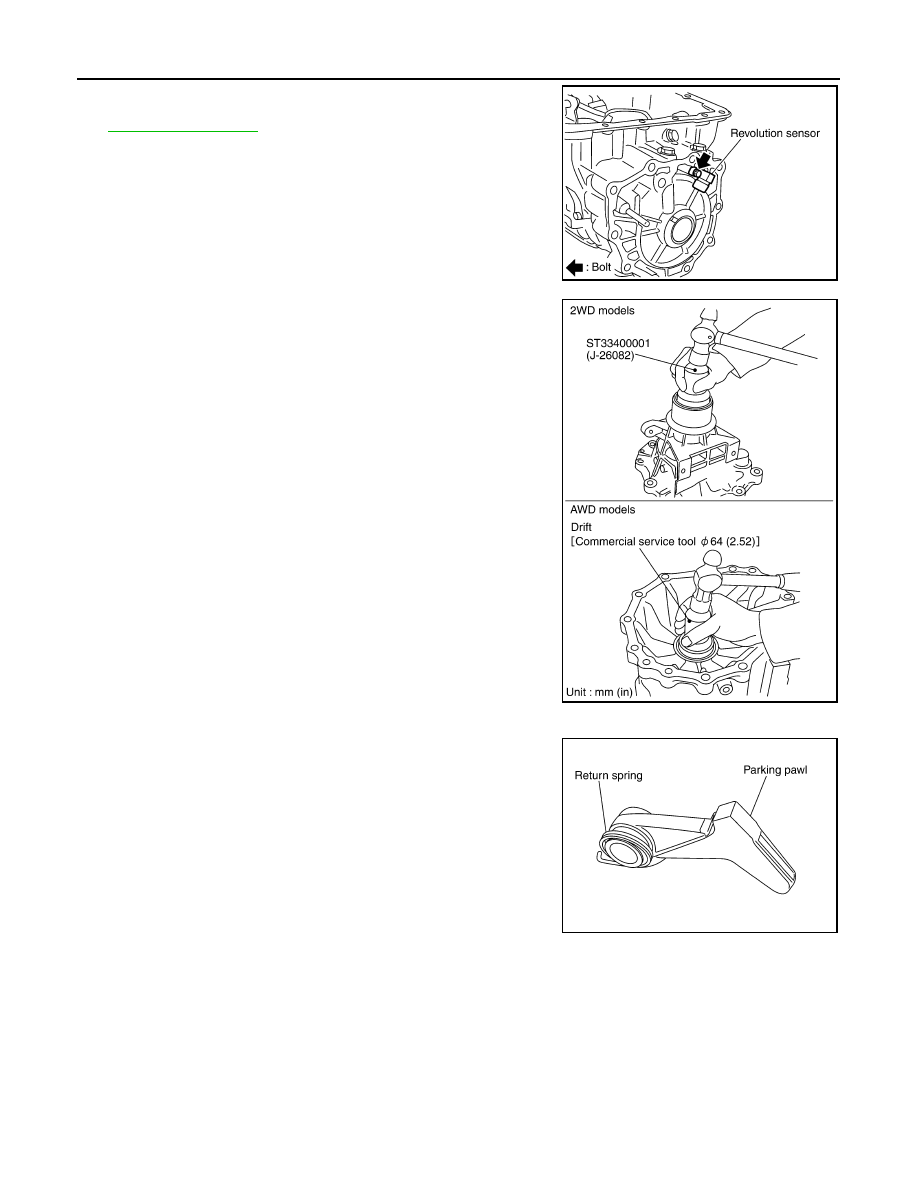

24. Install revolution sensor to transmission case, and then tighten

revolution sensor mounting bolt to the specified torque. Refer to

AT-249, "Component"

.

CAUTION:

• Do not subject it to impact by dropping or hitting it.
• Do not disassemble.
• Do not allow metal filings, etc. to get on the sensor's front

edge magnetic area.

• Do not place in an area affected by magnetism.

25. As shown in the figure, use the drift to drive rear oil seal into the

rear extension (2WD models) or adapter case (AWD models)
until it is flush.

CAUTION:

• Do not reuse rear oil seal.
• Apply ATF to rear oil seal.

26. Install return spring to parking pawl.

• VQ35DE models

SCIA2320E

SCIA5477E

SCIA2445E

ASSEMBLY

AT-313

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

• VK45DE models
- Return spring (1)
- Parking pawl (2)

27. Install parking pawl (with return spring) and pawl shaft to rear

extension (2WD models) or adapter case (AWD models).

28. Install parking actuator support to rear extension (2WD models)

or adapter case (AWD models).

29. Install needle bearing to rear extension (2WD models) or

adapter case (AWD models).

CAUTION:

• Take care with the direction of needle bearing. Refer to

AT-264, "Location of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings"

.

• Apply petroleum jelly to needle bearing.

30. Install seal rings to output shaft.

CAUTION:

• Do not reuse seal rings.
• Apply petroleum jelly to seal rings.

SCIA6180J

SCIA3424E

SCIA3423E

SCIA5221E

SCIA5209E

AT-314

< SERVICE INFORMATION >

ASSEMBLY

31. Install parking gear to output shaft.

32. Install output shaft in transmission case.

CAUTION:

Be careful not to mistake front for rear because both sides
looks similar. (Thinner end is front side.)

33. Install bearing race to output shaft.

34. Install rear extension assembly (2WD models) or adapter case assembly (AWD models) according to the

following procedures.

a.

2WD models

i.

Apply recommended sealant (Genuine Anaerobic Liquid Gasket
or equivalent. Refer to

GI-44, "Recommended Chemical Product

and Sealant"

.) to rear extension assembly as shown in the fig-

ure.

CAUTION:

Completely remove all moisture, oil and old sealant, etc.
from the transmission case and rear extension assembly
mounting surfaces.

SCIA5247E

SCIA5030E

SCIA5245E

SCIA8228E

ASSEMBLY

AT-315

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

ii.

Install rear extension assembly to transmission case.

CAUTION:

Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the rear
extension assembly.

iii.

Tighten rear extension assembly mounting bolts to specified
torque. Refer to

AT-249, "Component"

.

CAUTION:

Do not reuse self-sealing bolts.

b.

AWD models

i.

Install gasket onto transmission case.

CAUTION:

• Do not reuse gasket.
• Completely remove all moisture, oil and old gasket, etc.

from the transmission case and adapter case assembly
mounting surfaces.

ii.

Install adapter case assembly to transmission case.

CAUTION:

Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the rear
extension assembly.

SCIA5029E

SCIA6941E

SCIA5231E

SCIA5186E
