AT-296
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS
VK45DE models

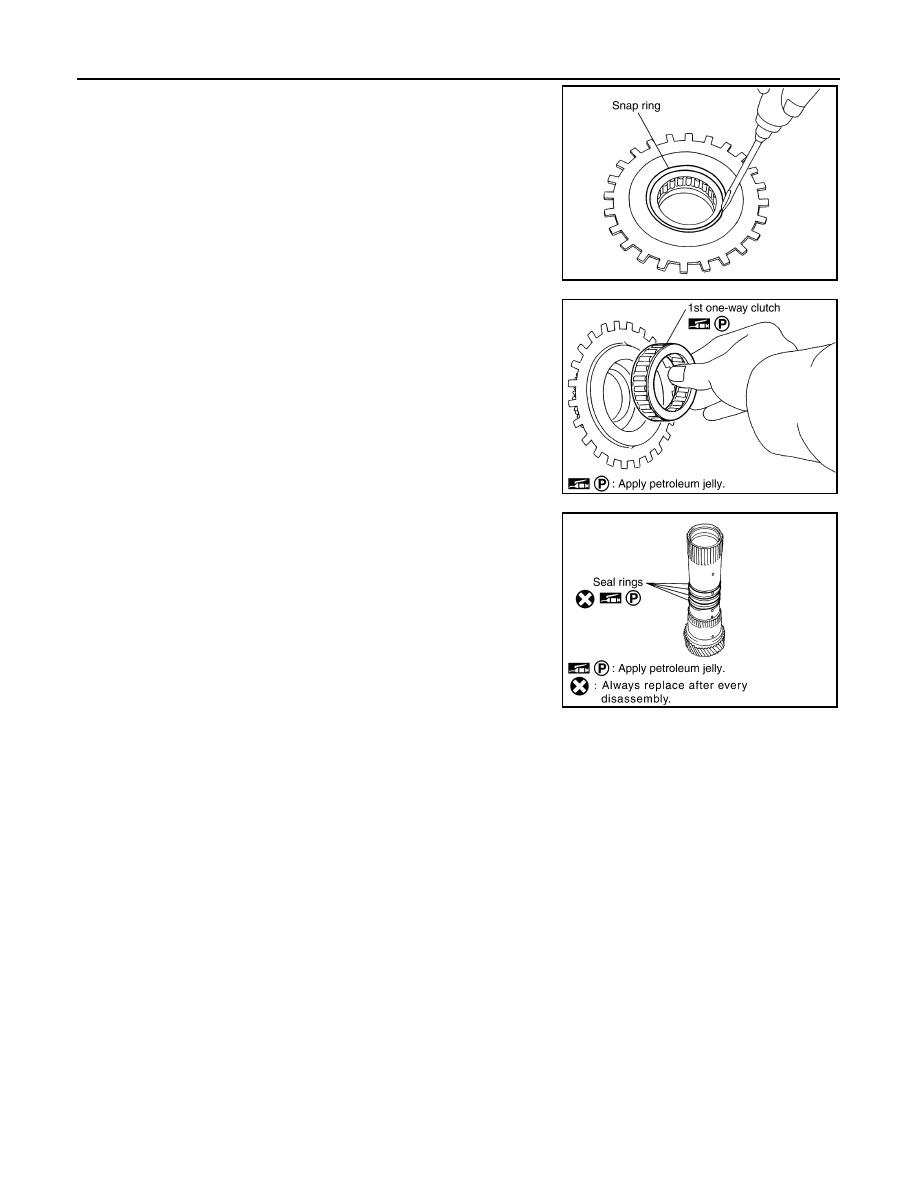

DISASSEMBLY
1.
Remove needle bearing and bearing races from high and low reverse clutch hub.
• VQ35DE models
• VK45DE models
1.
Needle bearing
2.
Bearing race
3.
Snap ring
4.
High and low reverse clutch hub
5.
Needle bearing
6.
Snap ring
7.
1st one-way clutch
8.
Rear sun gear
9.
Seal ring
10. Mid sun gear
SCIA7072E
1.
Needle bearing
2.
Bearing race
3.
Snap ring
4.
High and low reverse clutch hub
5.
Needle bearing
6.
Snap ring
7.
1st one-way clutch
8.
Rear sun gear
9.
Seal ring
10. Mid sun gear
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to
GI-8, "Component"
.
SCIA2854E
SCIA5238E
