Infiniti FX35 / FX45. Manual - part 87

AT-276

< SERVICE INFORMATION >

DISASSEMBLY

i.

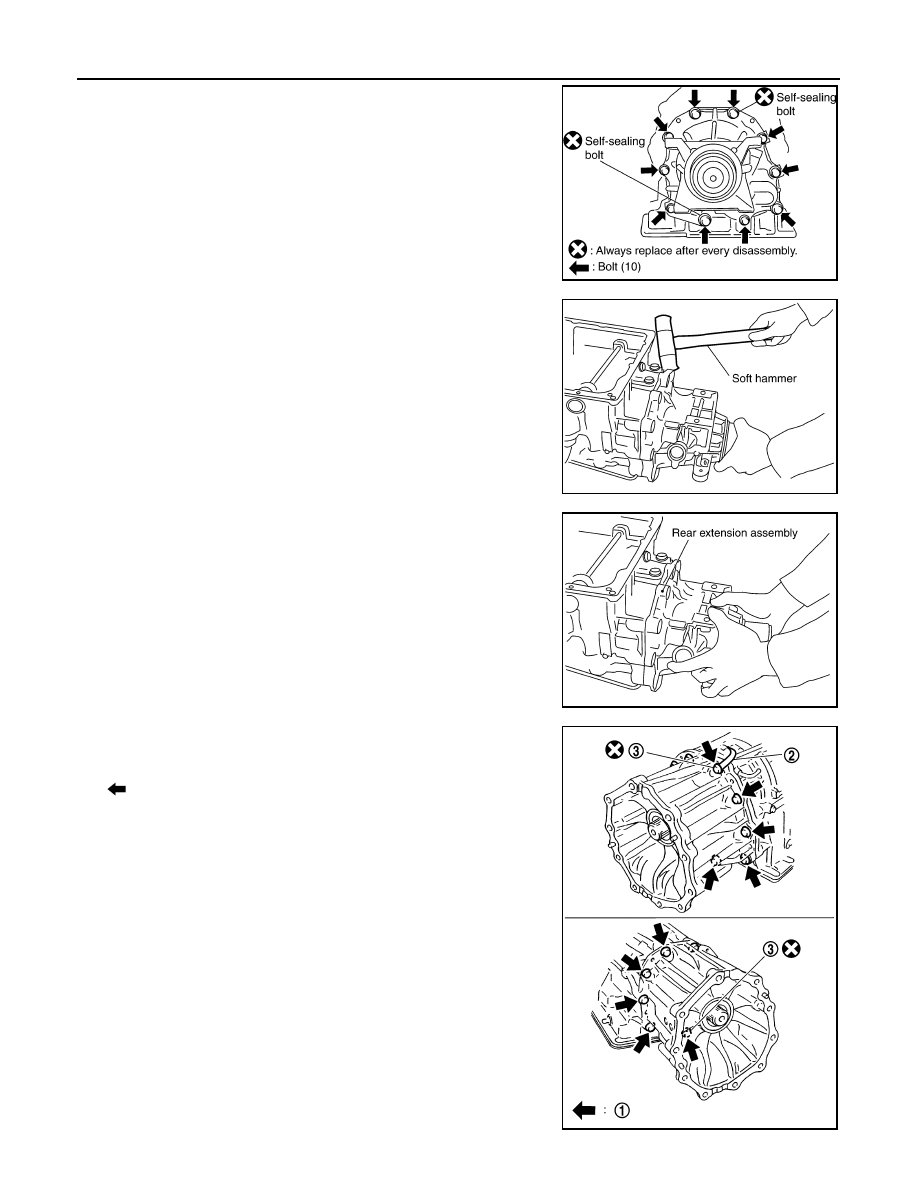

Remove tightening bolts for rear extension assembly and trans-
mission case.

ii.

Tap rear extension assembly with soft hammer.

iii.

Remove rear extension assembly from transmission case. (With
needle bearing.)

b.

AWD models

i.

Remove tightening bolts (1) for adapter case assembly and
transmission case. [With bracket (2).]

: Bolt (10)

• Self-sealing bolts (3)

SCIA6941E

SCIA5028E

SCIA5029E

SCIA7210E

DISASSEMBLY

AT-277

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

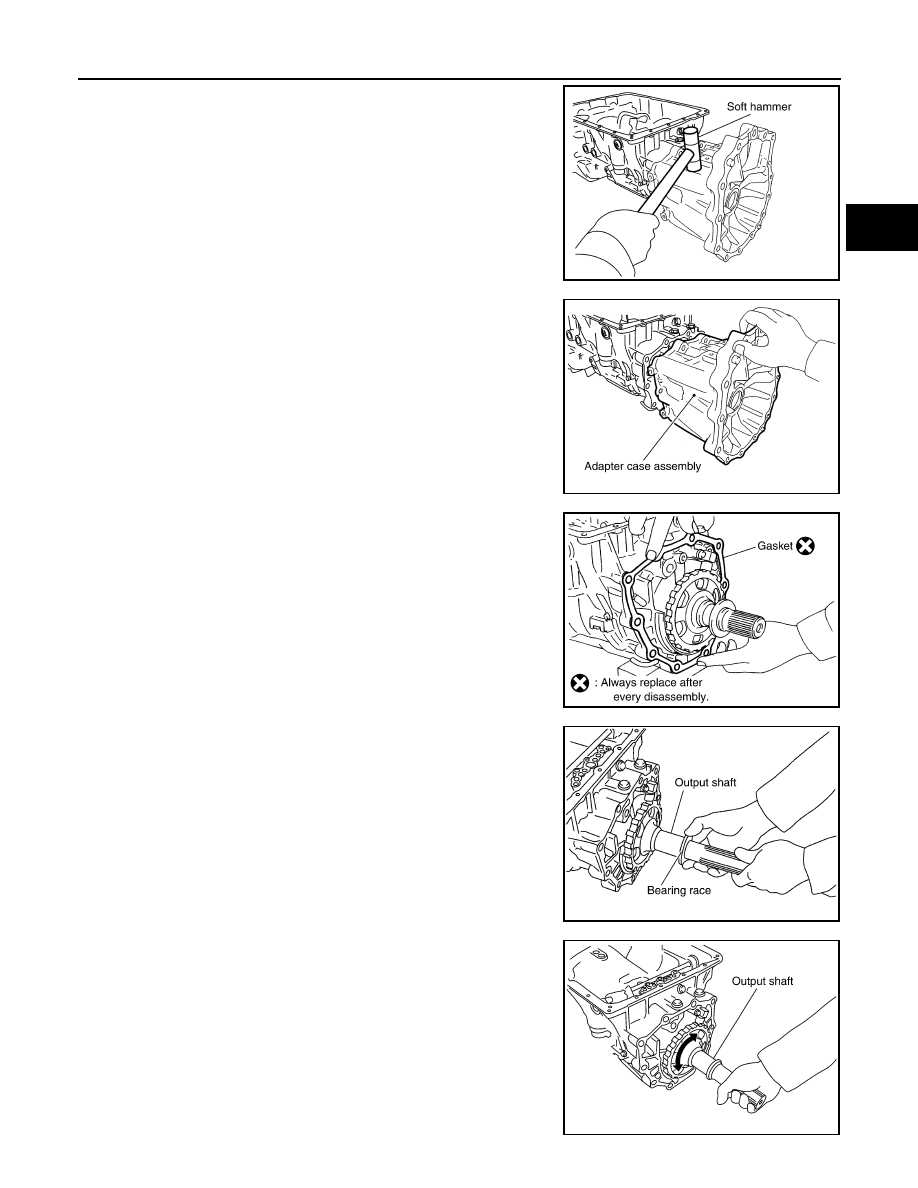

ii.

Tap adapter case assembly with soft hammer.

iii.

Remove adapter case assembly from transmission case. (With
needle bearing)

iv.

Remove gasket from transmission case.

45. Remove bearing race from output shaft.

46. Remove output shaft from transmission case by rotating left/

right.

SCIA5201E

SCIA5186E

SCIA5231E

SCIA5245E

SCIA5030E

AT-278

< SERVICE INFORMATION >

DISASSEMBLY

47. Remove parking gear from output shaft.

48. Remove seal rings from output shaft.

49. Remove needle bearing from transmission case.

50. Remove revolution sensor from transmission case.

CAUTION:

• Do not subject it to impact by dropping or hitting it.
• Do not disassemble.
• Do not allow metal filings, etc. to get on the sensor's front

edge magnetic area.

• Do not place in an area affected by magnetism.

51. Remove reverse brake snap ring (fixing plate) using 2 flat-

bladed screwdrivers.
NOTE:
Press out snap ring from the transmission case oil pan side gap
using a flat-bladed screwdriver, and remove it using another
screwdriver.

52. Remove reverse brake retaining plate from transmission case.

• Check facing for burns, cracks or damage. If necessary,

replace the plate.

SCIA5247E

SCIA5209E

SCIA5031E

SCIA2320E

SCIA5032E

DISASSEMBLY

AT-279

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

53. Remove N-spring from transmission case.

54. Remove reverse brake drive plates, driven plates and dish plate

from transmission case.
• Check facing for burns, cracks or damage. If necessary,

replace the plate.

55. Remove snap ring (fixing spring retainer) using a flat-bladed

screwdriver.

56. Remove spring retainer and return spring from transmission

case.

57. Remove seal rings from drum support.

SCIA5214E

SCIA2322E

SCIA2323E

SCIA2324E

SCIA3333E
