AT-272

< SERVICE INFORMATION >

DISASSEMBLY

24. Remove high and low reverse clutch assembly from direct clutch

assembly.

CAUTION:

Make sure that needle bearing is installed to the high and
low reverse clutch assembly edge surface.

25. Remove direct clutch assembly from reverse brake.

26. Remove needle bearing from drum support.

27. Remove snap ring from A/T assembly harness connector.

28. Push A/T assembly harness connector.

CAUTION:

Be careful not to damage connector.

SCIA2306E

SCIA5019E

SCIA5198E

SCIA5021E

SCIA5022E

DISASSEMBLY

AT-273

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

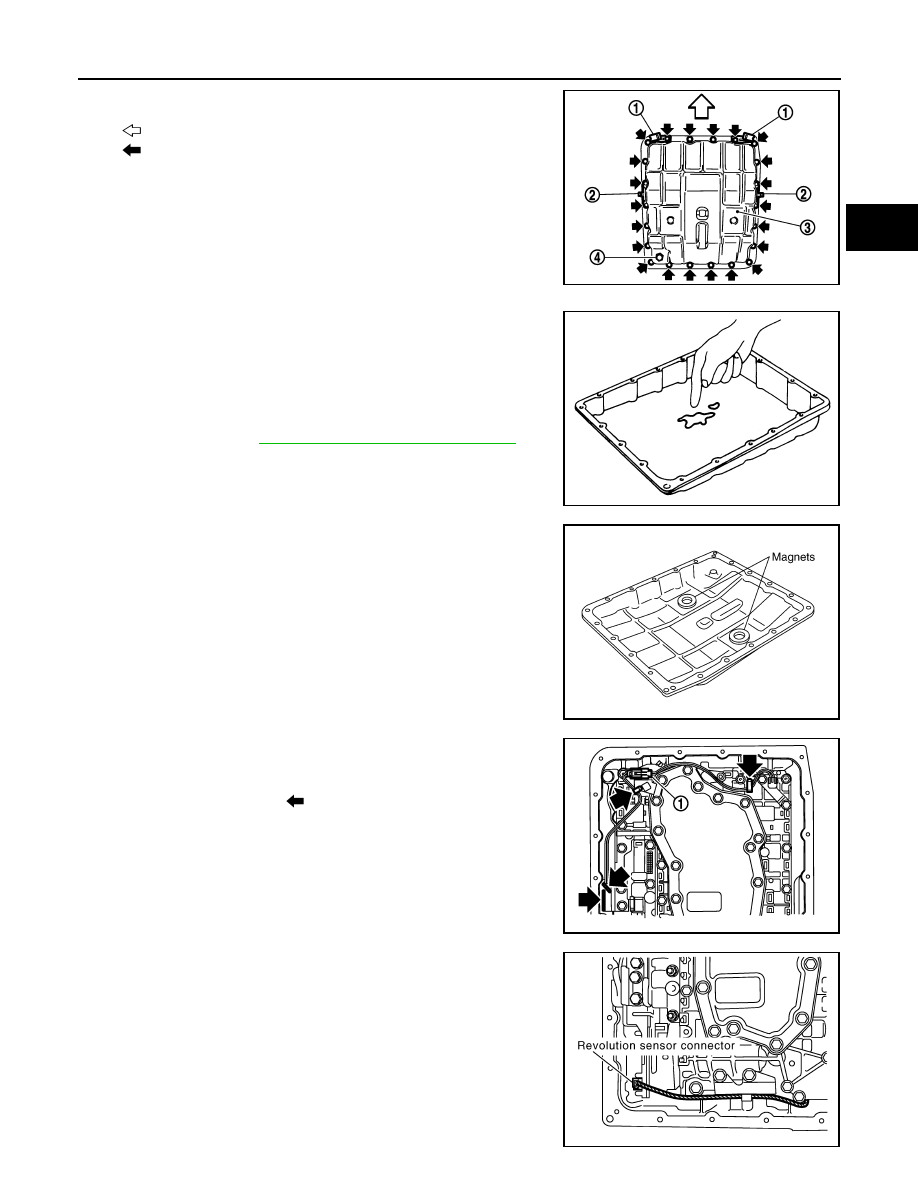

29. Remove bracket (1) (VK45DE), clips (2), oil pan (3) and oil pan

gasket.

: Vehicle front

: Bolt (22)

• Drain plug (4)

30. Check foreign materials in oil pan to help determine causes of

malfunction. If the ATF is very dark, smells burned, or contains
foreign particles, the frictional material (clutches, band) may
need replacement. A tacky film that will not wipe clean indicates
varnish build up. Varnish can cause valves, servo, and clutches
to stick and can inhibit pump pressure.
• If frictional material is detected, perform A/T fluid cooler

cleaning. Refer to

AT-13, "A/T Fluid Cooler Cleaning"

.

31. Remove magnets from oil pan.

32. Disconnect A/T fluid temperature sensor 2 connector (1).

CAUTION:

Be careful not to damage connector.

33. Straighten terminal clips (

) to free terminal cord assembly and

A/T fluid temperature sensor 2 harness.

34. Disconnect revolution sensor connector.

CAUTION:

Be careful not to damage connector.

SCIA8128E

SCIA5199E

SCIA5200E

SCIA8069E

SCIA7524E

AT-274

< SERVICE INFORMATION >

DISASSEMBLY

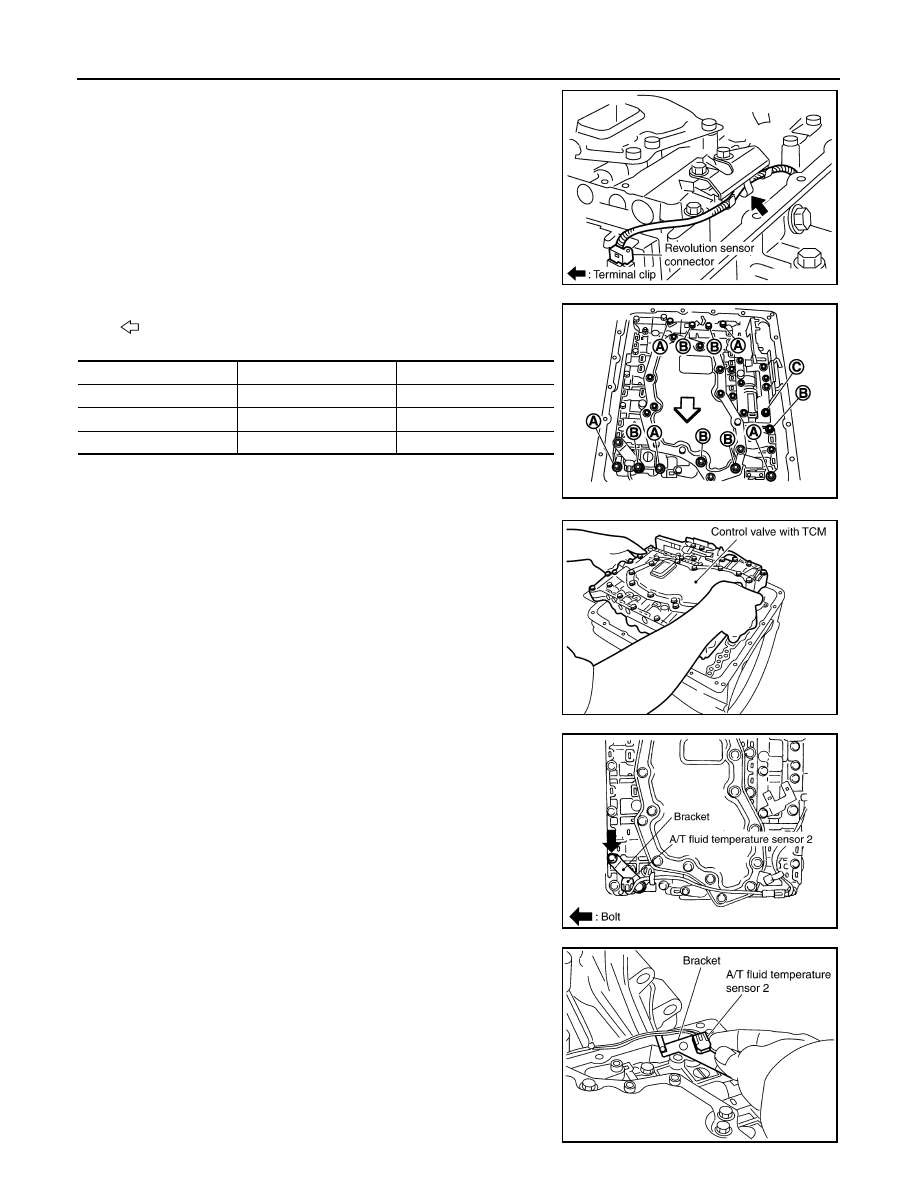

35. Straighten terminal clip to free revolution sensor harness.

36. Remove bolts A, B and C from control valve with TCM.

 : Front

37. Remove control valve with TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and
manual plate height. Remove it vertically.

38. Remove A/T fluid temperature sensor 2 with bracket from con-

trol valve with TCM.

39. Remove bracket from A/T fluid temperature sensor 2.

SCIA7526E

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8077E

SCIA5260E

SCIA5301E

SCIA5264E

DISASSEMBLY

AT-275

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

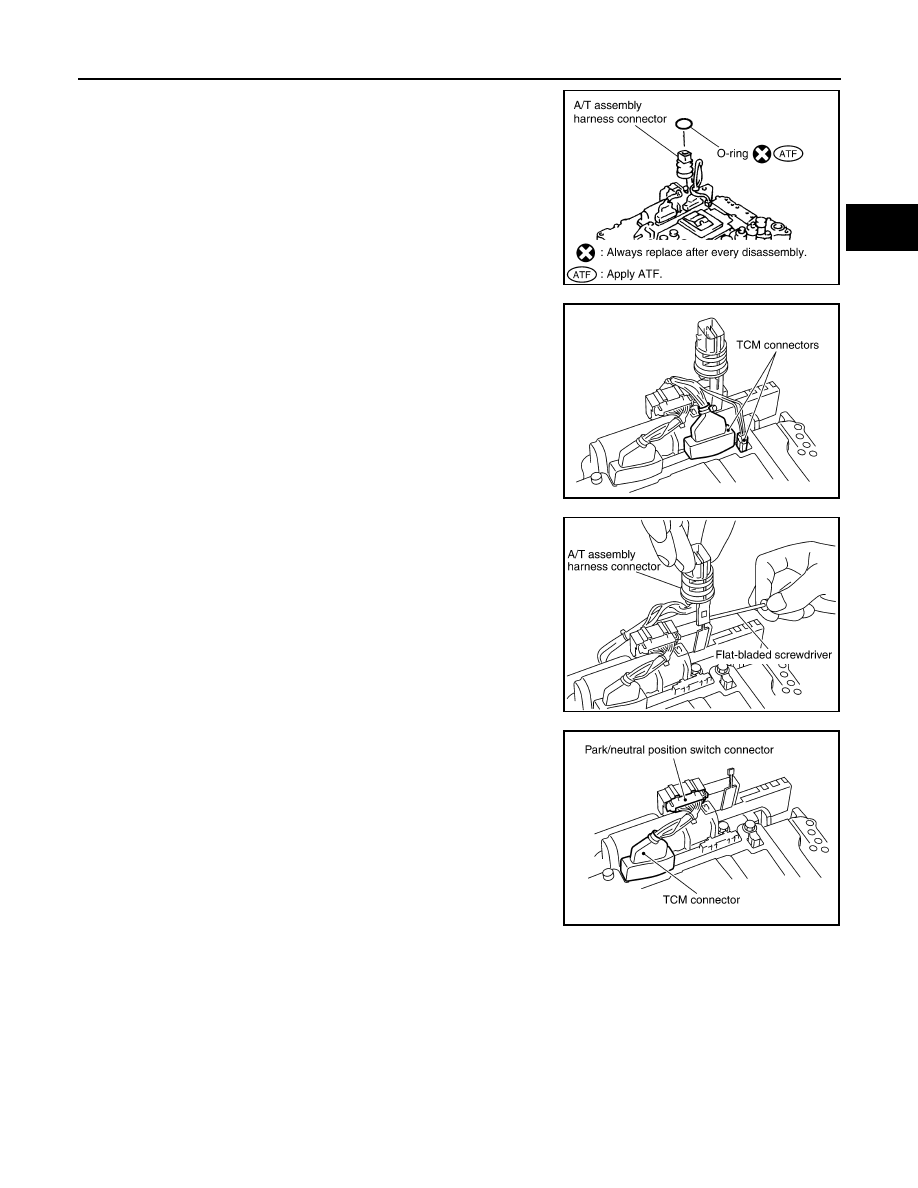

40. Remove O-ring from A/T assembly harness connector.

41. Disconnect TCM connectors.

CAUTION:

Be careful not to damage connectors.

42. Remove A/T assembly harness connector from control valve

with TCM using a flat-bladed screwdriver.

43. Disconnect TCM connector and park/neutral position switch

connector.

CAUTION:

Be careful not to damage connectors.

44. Remove rear extension assembly (2WD models) or adapter case assembly (AWD models) according to

the following procedures.

a.

2WD models

SCIA5155E

SCIA5447E

SCIA5448E

SCIA5449E
