AT-216

< SERVICE INFORMATION >

ON-VEHICLE SERVICE

6.

Remove snap ring from A/T assembly harness connector.

7.

Push A/T assembly harness connector.

CAUTION:

Be careful not to damage connector.

8.

Remove bracket (1) (VK45DE), clips (2), oil pan (3) and oil pan
gasket.

: Vehicle front

: Bolt (22)

• Drain plug (4)

9.

Check foreign materials in oil pan to help determine causes of
malfunction. If the ATF is very dark, smells burned, or contains
foreign particles, the frictional material (clutches, band) may
need replacement. A tacky film that will not wipe clean indicates
varnish build up. Varnish can cause valves, servo, and clutches
to stick and can inhibit pump pressure.
• If frictional material is detected, perform A/T fluid cooler

cleaning. Refer to

AT-13, "A/T Fluid Cooler Cleaning"

.

10. Remove magnets from oil pan.

SCIA5021E

SCIA5022E

SCIA8128E

SCIA5199E

SCIA5200E

ON-VEHICLE SERVICE

AT-217

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

11. Disconnect A/T fluid temperature sensor 2 connector (1).

CAUTION:

Be careful not to damage connector.

12. Straighten terminal clips (

) to free terminal cord assembly and

A/T fluid temperature sensor 2 harness.

13. Disconnect revolution sensor connector.

CAUTION:

Be careful not to damage connector.

14. Straighten terminal clip to free revolution sensor harness.

15. Remove bolts A, B and C from control valve with TCM.

: Vehicle front

16. Remove control valve with TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and
manual plate height. Remove it vertically.

SCIA8069E

SCIA7524E

SCIA7525E

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8074E

SCIA5142E

AT-218

< SERVICE INFORMATION >

ON-VEHICLE SERVICE

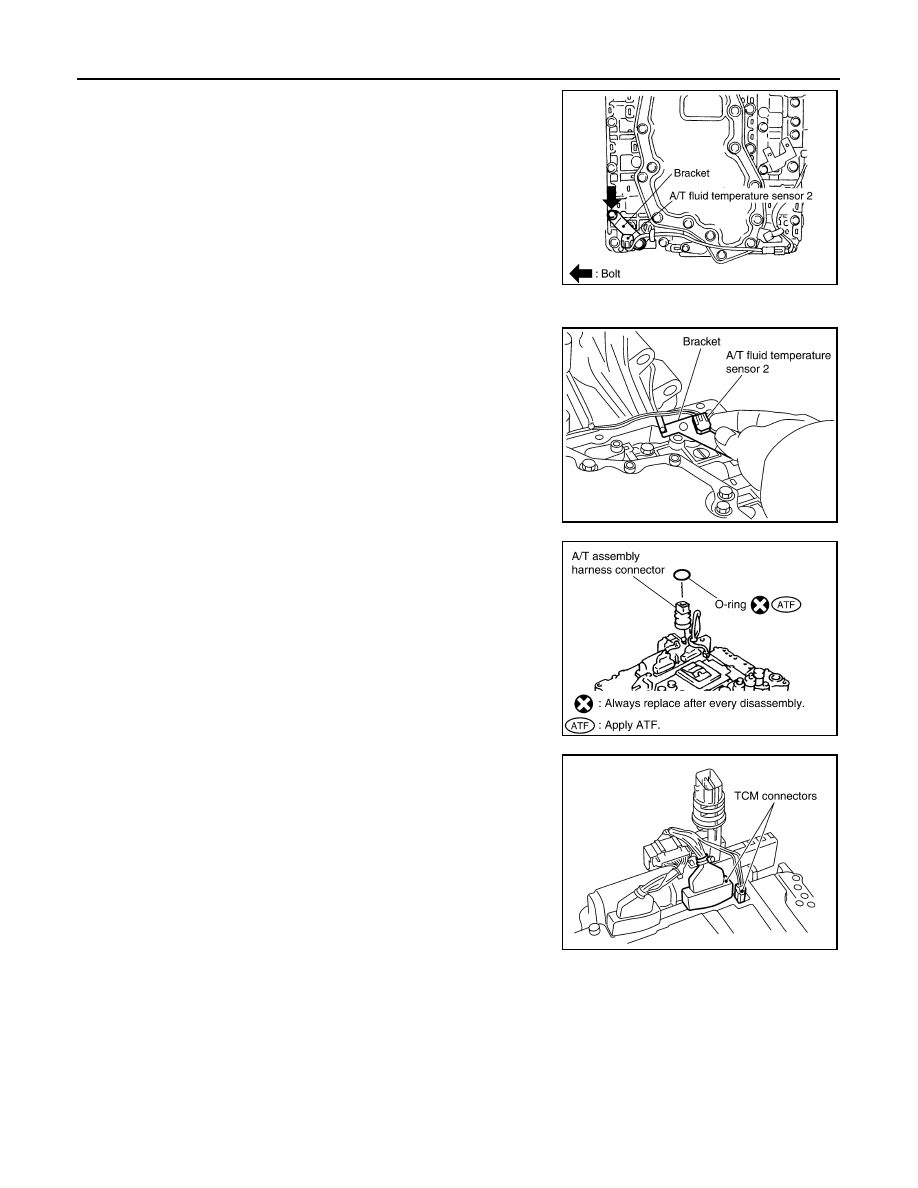

17. Remove A/T fluid temperature sensor 2 with bracket from con-

trol valve with TCM.

18. Remove bracket from A/T fluid temperature sensor 2.

19. Remove O-ring from A/T assembly harness connector.

20. Disconnect TCM connectors.

CAUTION:

Be careful not to damage connectors.

SCIA5301E

SCIA5264E

SCIA5155E

SCIA5447E

ON-VEHICLE SERVICE

AT-219

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

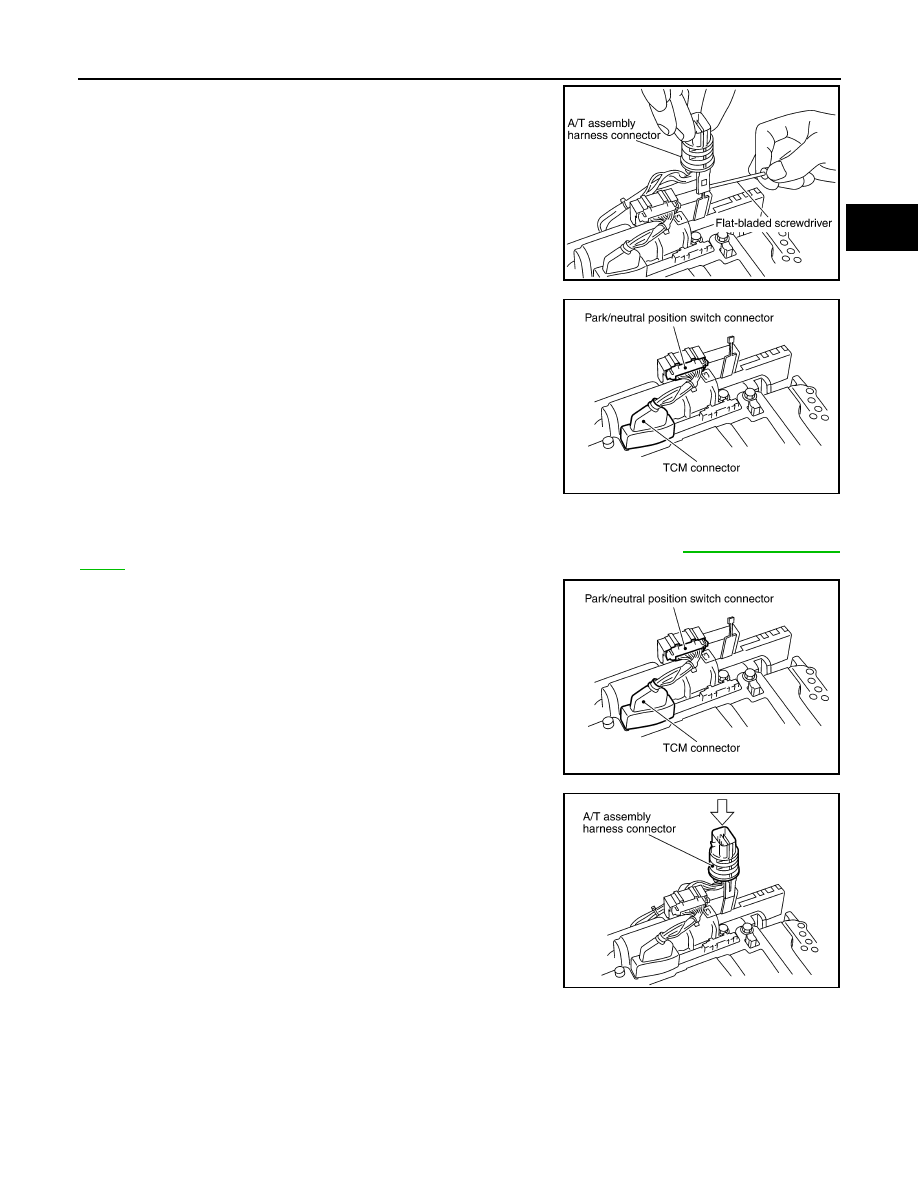

21. Remove A/T assembly harness connector from control valve

with TCM using a flat-bladed screwdriver.

22. Disconnect TCM connector and park/neutral position switch

connector.

CAUTION:

Be careful not to damage connectors.

Installation

CAUTION:

After completing installation, check A/T fluid leakage and A/F fluid level. Refer to

AT-11, "Checking A/T

Fluid"

.

1.

Connect TCM connector and park/neutral position switch con-
nector.

2.

Install A/T assembly harness connector from control valve with
TCM.

SCIA5448E

SCIA5449E

SCIA5449E

SCIA5450E
