AT-212

< SERVICE INFORMATION >

KEY INTERLOCK CABLE

KEY INTERLOCK CABLE

Component

INFOID:0000000001327391

CAUTION:

• Install key interlock cable in such a way that it will not be damaged by sharp bends, twists or interfer-

ence with adjacent parts.

• After installing key interlock cable to control device, make sure that casing cap and bracket are

firmly secured in their positions. If casing cap be removed with an external load of less than 39.2 N
(4.0 kg, 8.8 lb), replace key interlock cable with new one.

Removal and Installation

INFOID:0000000001327392

REMOVAL

1.

Key interlock cable

2.

Key cylinder

A.

Holder

B.

Clip

C.

Slider

D.

Adjuster holder

E.

Interlock rod

F.

Unlock

G.

Lock

SCIA7755E

KEY INTERLOCK CABLE

AT-213

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

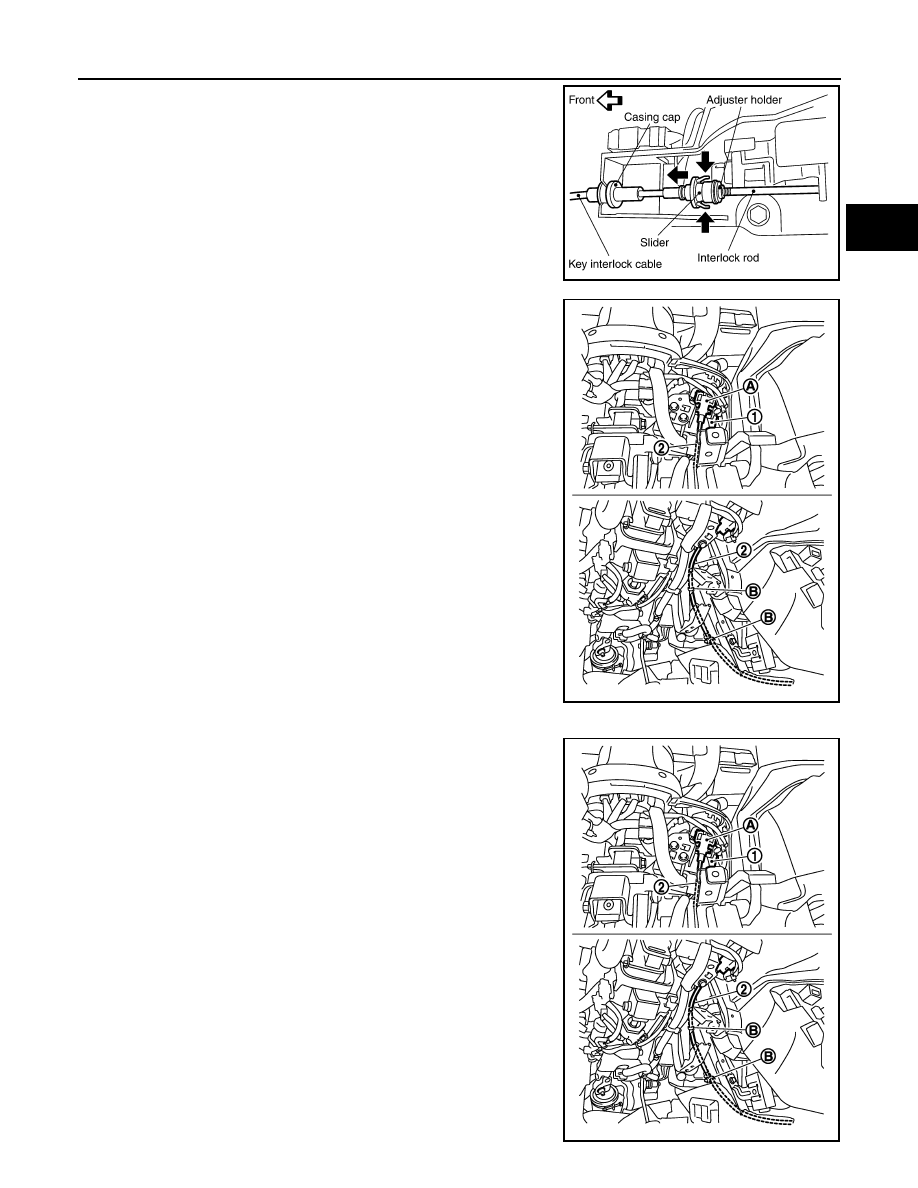

1.

Unlock slider by squeezing lock tabs on slider from adjuster
holder.

2.

Remove casing cap from bracket of control device assembly
and remove interlock rod from adjuster holder.

3.

Remove holder (A) from key cylinder (1) and remove key inter-
lock cable (2).
(B) : Clips

INSTALLATION

1.

Set key interlock cable (2) to key cylinder (1) and install holder
(A).

2.

Clamp key interlock cable (2) and fix to key interlock cable (2)
with clips (B).

3.

Turn ignition key to “LOCK” position.

4.

Set selector lever to “P” position.

SCIA1230E

SCIA7761E

SCIA7761E

AT-214

< SERVICE INFORMATION >

KEY INTERLOCK CABLE

5.

Insert interlock rod into adjuster holder.

6.

Install casing cap to bracket.

7.

Move slider in order to fix adjuster holder to interlock rod.

CAUTION:

Do not touch adjacent parts of key interlock cable when
slider is being held.
Insert slider into key interlock rod straightly.

SCIA1232E

ON-VEHICLE SERVICE

AT-215

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

ON-VEHICLE SERVICE

Control Valve with TCM and A/T Fluid Temperature Sensor 2

INFOID:0000000001327393

COMPONENTS

CONTROL VALVE WITH TCM ASSEMBLY REMOVAL AND INSTALLATION

Removal

1.

Disconnect the battery cable from the negative terminal.

2.

Drain ATF through drain plug.

3.

Remove front cross bar. Refer to

FSU-6, "Removal and Installation"

.

4.

Disconnect heated oxygen sensor 2 harness connector.

5.

Disconnect A/T assembly harness connector.

1.

A/T

2.

Snap ring

3.

Sub-harness

4.

Control valve with TCM

5.

Bracket

6.

A/T fluid temperature sensor 2

7.

Oil pan gasket

8.

Clip

9.

Bracket (VK45DE)

10. Bracket (VK45DE)

11.

Oil pan mounting bolt

12. Oil pan

13. Magnet

14. Drain plug

15. Drain plug gasket

16. Terminal cord assembly

17. O-ring

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to

GI-8, "Component"

.
