TROUBLE DIAGNOSIS FOR SYMPTOMS

NG

>> Repair or replace damaged parts.

2.

CHECK SELF-DIAGNOSIS RESULTS

 With CONSULT-III

• Perform self-diagnosis.

Without CONSULT-III

• Perform self-diagnosis. Refer to

AT-91, "Diagnosis Procedure without CONSULT-III"

.

Is any malfunction detected by self-diagnostic results?

YES

>> Check the malfunctioning system. Refer to

AT-84, "CONSULT-III Function (TRANSMISSION)"

,

AT-91, "Diagnosis Procedure without CONSULT-III"

.

NO

>> INSPECTION END

A/T Does Not Shift: 5th Gear

→

 4th Gear

INFOID:0000000001327378

SYMPTOM:

When shifted from M5 to M4 position in manual mode, does not downshift from 5th to 4th gear.

DIAGNOSTIC PROCEDURE

1.

CHECK SELF-DIAGNOSTIC RESULTS

 With CONSULT-III

• Perform self-diagnosis.

 Without CONSULT-III

• Perform self-diagnosis. Refer to

AT-91, "Diagnosis Procedure without CONSULT-III"

.

Is any malfunction detected by self-diagnostic results?

YES

>> Check the malfunctioning system. Refer to

AT-84, "CONSULT-III Function (TRANSMISSION)"

,

AT-91, "Diagnosis Procedure without CONSULT-III"

.

NO

>> GO TO 2.

2.

CHECK A/T FLUID LEVEL

Check A/T fluid level. Refer to

AT-11, "Checking A/T Fluid"

.

OK or NG

OK

>> GO TO 3.

NG

>> Refill ATF.

3.

CHECK A/T POSITION

Check the A/T position. Refer to

AT-207, "Checking of A/T Position"

.

OK or NG

OK

>> GO TO 4.

NG

>> Adjust A/T position. Refer to

AT-207, "Adjustment of A/T

Position"

.

4.

CHECK MANUAL MODE SWITCH

SAT638A

SCIA2119E

TROUBLE DIAGNOSIS FOR SYMPTOMS

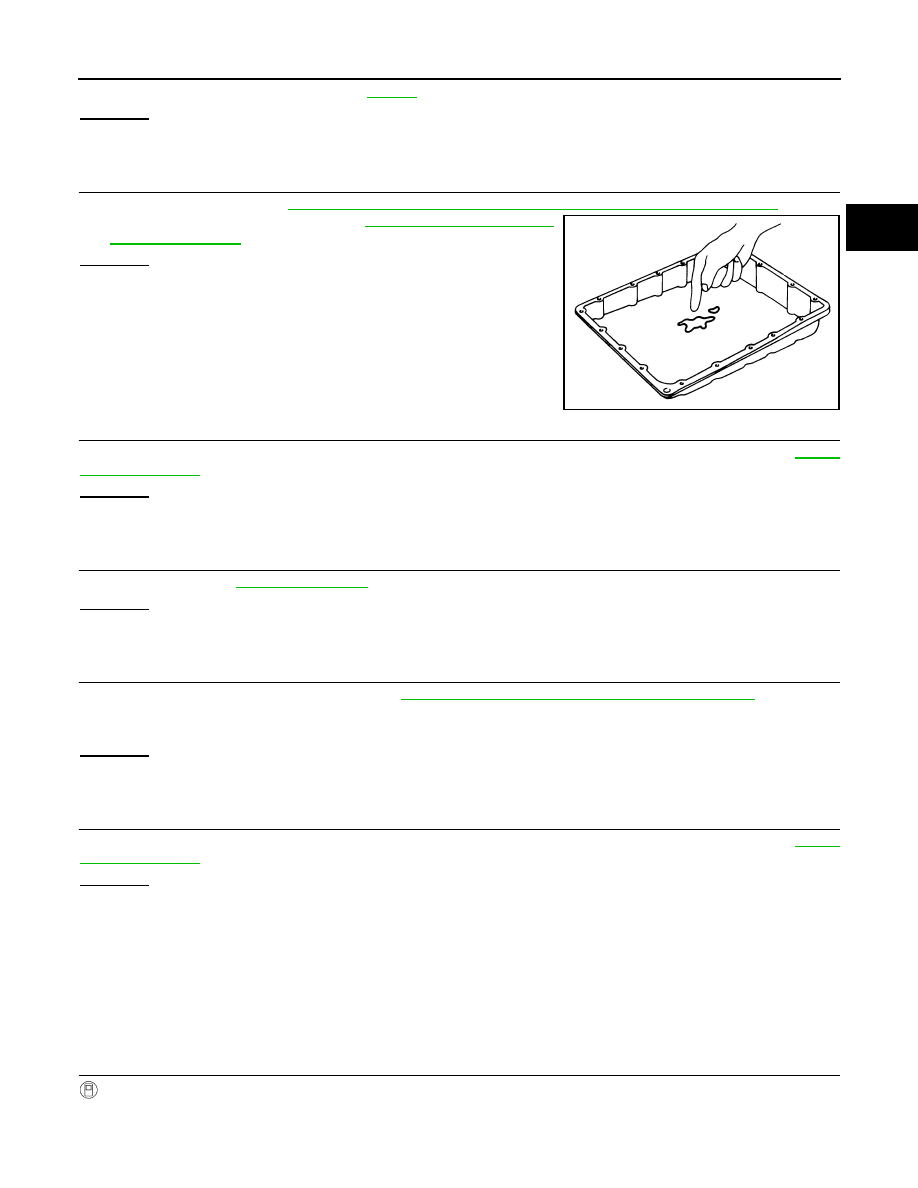

AT-197

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

Check the manual mode switch. Refer to

AT-155

.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace damaged parts.

5.

CHECK A/T FLUID CONDITION

1.

Remove oil pan. Refer to

AT-215, "Control Valve with TCM and A/T Fluid Temperature Sensor 2"

.

2.

Check A/T fluid condition. Refer to

AT-49, "Inspections Before

Trouble Diagnosis"

.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 9.

6.

DETECT MALFUNCTIONING ITEM

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to

AT-59,

"Symptom Chart"

 (Symptom No.47).

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

7.

CHECK SYMPTOM

Check again. Refer to

AT-53, "Road Test"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 8.

8.

CHECK TCM

1.

Check TCM input/output signals. Refer to

AT-83, "TCM Input/Output Signal Reference Value"

.

2.

If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness
connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

9.

DETECT MALFUNCTIONING ITEM

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to

AT-59,

"Symptom Chart"

 (Symptom No.47).

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

A/T Does Not Shift: 4th Gear

→

 3rd Gear

INFOID:0000000001327379

SYMPTOM:

When shifted from M4 to M3 position in manual mode, does not downshift from 4th to 3rd gear.

DIAGNOSTIC PROCEDURE

1.

CHECK SELF-DIAGNOSTIC RESULTS

 With CONSULT-III

• Perform self-diagnosis.

SCIA5199E

AT-198

< SERVICE INFORMATION >

TROUBLE DIAGNOSIS FOR SYMPTOMS

 Without CONSULT-III

• Perform self-diagnosis. Refer to

AT-91, "Diagnosis Procedure without CONSULT-III"

.

Is any malfunction detected by self-diagnostic results?

YES

>> Check the malfunctioning system. Refer to

AT-84, "CONSULT-III Function (TRANSMISSION)"

,

AT-91, "Diagnosis Procedure without CONSULT-III"

.

NO

>> GO TO 2.

2.

CHECK A/T FLUID LEVEL

Check A/T fluid level. Refer to

AT-11, "Checking A/T Fluid"

.

OK or NG

OK

>> GO TO 3.

NG

>> Refill ATF.

3.

CHECK A/T POSITION

Check the A/T position. Refer to

AT-207, "Checking of A/T Position"

.

OK or NG

OK

>> GO TO 4.

NG

>> Adjust A/T position. Refer to

AT-207, "Adjustment of A/T

Position"

.

4.

CHECK MANUAL MODE SWITCH

Check the manual mode switch. Refer to

AT-155

.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace damaged parts.

5.

CHECK A/T FLUID CONDITION

1.

Remove oil pan. Refer to

AT-215, "Control Valve with TCM and A/T Fluid Temperature Sensor 2"

.

2.

Check A/T fluid condition. Refer to

AT-49, "Inspections Before

Trouble Diagnosis"

.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 9.

6.

DETECT MALFUNCTIONING ITEM

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to

AT-59,

"Symptom Chart"

 (Symptom No.48).

OK or NG

OK

>> GO TO 7.

SAT638A

SCIA2119E

SCIA5199E

TROUBLE DIAGNOSIS FOR SYMPTOMS

AT-199

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

NG

>> Repair or replace damaged parts.

7.

CHECK SYMPTOM

Check again. Refer to

AT-53, "Road Test"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 8.

8.

CHECK TCM

1.

Check TCM input/output signals. Refer to

AT-83, "TCM Input/Output Signal Reference Value"

.

2.

If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness
connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

9.

DETECT MALFUNCTIONING ITEM

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to

AT-59,

"Symptom Chart"

 (Symptom No.48).

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

A/T Does Not Shift: 3rd Gear

→

 2nd Gear

INFOID:0000000001327380

SYMPTOM:

When shifted from M3 to M2 position in manual mode, does not downshift from 3rd to 2nd gear.

DIAGNOSTIC PROCEDURE

1.

CHECK SELF-DIAGNOSTIC RESULTS

 With CONSULT-III

• Perform self-diagnosis.

 Without CONSULT-III

• Perform self-diagnosis. Refer to

AT-91, "Diagnosis Procedure without CONSULT-III"

.

Is any malfunction detected by self-diagnostic results?

YES

>> Check the malfunctioning system. Refer to

AT-84, "CONSULT-III Function (TRANSMISSION)"

,

AT-91, "Diagnosis Procedure without CONSULT-III"

.

NO

>> GO TO 2.

2.

CHECK A/T FLUID LEVEL

Check A/T fluid level. Refer to

AT-11, "Checking A/T Fluid"

.

OK or NG

OK

>> GO TO 3.

NG

>> Refill ATF.

3.

CHECK A/T POSITION

SAT638A
