DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)

Description

INFOID:0000000001327196

The revolution sensor detects the revolution of the parking gear and emits a pulse signal. The pulse signal is
sent to the TCM which converts it into vehicle speed.

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000001327197

On Board Diagnosis Logic

INFOID:0000000001327198

Diagnostic trouble code “P0720 VEH SPD SEN/CIR AT” with CONSULT-III or 1st judgement flicker without
CONSULT-III is detected under the following conditions.
• When TCM does not receive the proper voltage signal from the sensor.
• After ignition switch is turned ON, irregular signal input from vehicle speed sensor MTR before the vehicle

starts moving.

Possible Cause

INFOID:0000000001327199

• Harness or connectors

(Sensor circuit is open or shorted.)

• Revolution sensor
• Vehicle speed sensor MTR

DTC Confirmation Procedure

INFOID:0000000001327200

CAUTION:

• Always drive vehicle at a safe speed.
• Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-III

1.

Turn ignition switch ON.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Touch “START”.

4.

Drive vehicle and check for an increase of “VHCL/S SE-A/T” value in response to “VHCL/S SE-MTR”
value.
If the check result is NG, go to

AT-110, "Diagnosis Procedure"

.

If the check result is OK, go to following step.

5.

Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III
and check monitor “VHCL/S SE-A/T”, “ACCELE POSI”, “ENGINE SPEED” and “SLCT LVR POSI”.

6.

Start engine and maintain the following conditions for at least 5 consecutive seconds.
VHCL/S SE-A/T: 30 km/h (19 MPH) or more
ACCELE POSI: More than 1.0/8
SLCT LVR POSI: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
If the check result is NG, go to

AT-110, "Diagnosis Procedure"

.

If the check result is OK, go to following step.

7.

Maintain the following conditions for at least 5 consecutive seconds.
ENGINE SPEED: 3,500 rpm or more
ACCELE POSI: More than 1.0/8
SLCT LVR POSI: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.

Item name

Condition

Display value

VHCL/S SE-A/T

During driving

Approximately matches the speedometer reading.

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)

AT-109

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

8.

If DTC is detected, go to

AT-110, "Diagnosis Procedure"

.

 WITH GST

Follow the procedure “WITH CONSULT-III”.

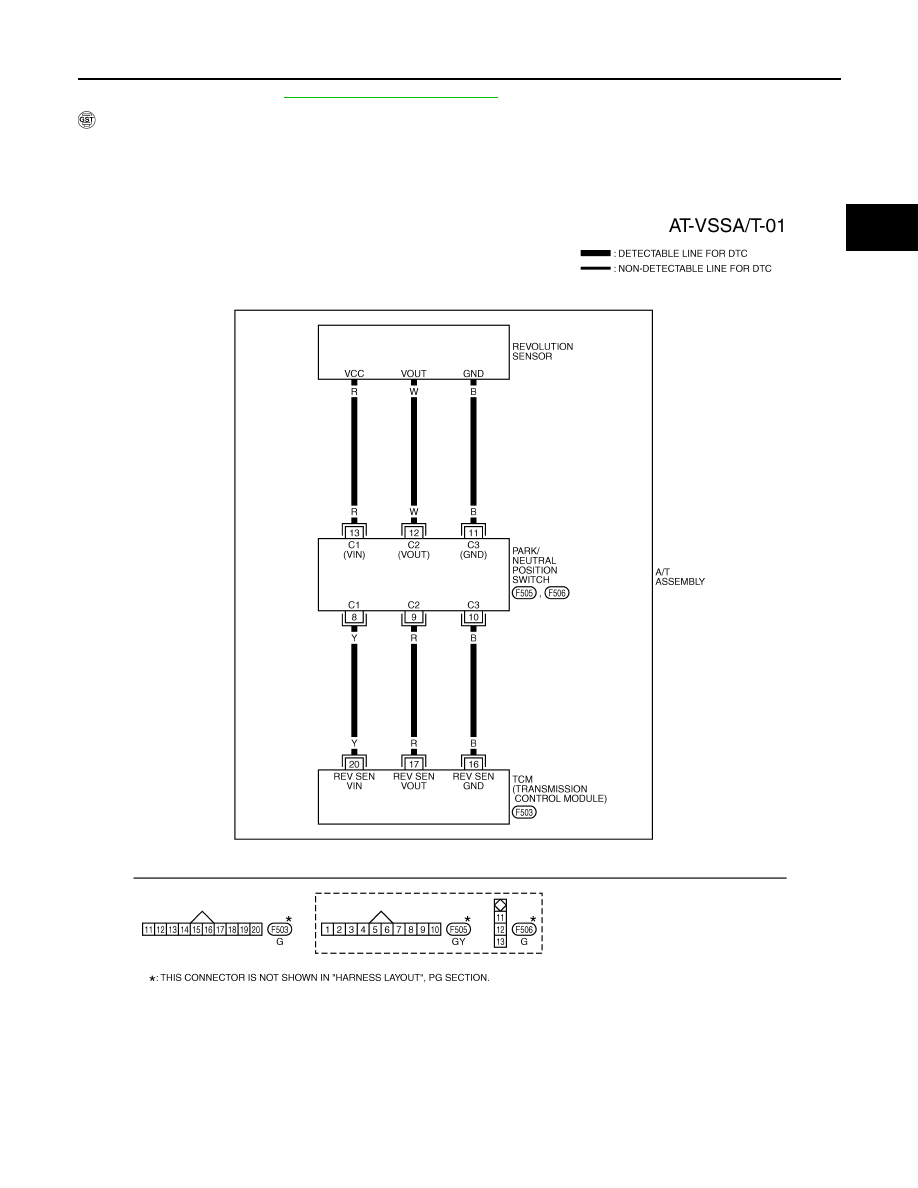

Wiring Diagram - AT - VSSA/T

INFOID:0000000001327201

TCWM0249E

AT-110

< SERVICE INFORMATION >

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)

Diagnosis Procedure

INFOID:0000000001327202

1.

CHECK INPUT SIGNAL

 With CONSULT-III

1.

Turn ignition switch ON.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Start engine.

4.

Read out the value of “VHCL/S SE-A/T” while driving.
Check the value changes according to driving speed.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-160

.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check A/T assembly harness connector pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace damaged parts.

4.

CHECK SUB-HARNESS

1.

Remove control valve with TCM. Refer to

AT-215, "Control Valve with TCM and A/T Fluid Temperature

Sensor 2"

.

2.

Disconnect park/neutral position switch connector and TCM connector.

3.

Check continuity between park/neutral position switch connector
terminals and TCM connector terminals.

4.

If OK, check harness for short to ground and short to power.

5.

Reinstall any part removed.

OK or NG

OK

>> GO TO 5.

NG

>> Replace open circuit or short to ground and short to power in harness or connectors.

5.

REPLACE THE REVOLUTION SENSOR AND CHECK DTC

1.

Replace the revolution sensor. Refer to

AT-233, "Revolution Sensor Component (2WD Models Only)"

(2WD models) or

AT-267, "Disassembly"

AT-249, "Component"

 (AWD models).

Item name

Condition

Display value

VHCL/S SE-A/T

During driving

Approximately matches the speedometer
reading.

Item

 Connector

Terminal

Continuity

Park/neutral position switch
connector

F505

Yes

TCM connector

F503

20

Park/neutral position switch
connector

F505

9

Yes

TCM connector

F503

17

Park/neutral position switch
connector

F505

10

Yes

TCM connector

F503

16

SCIA5458E

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)

AT-111

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

2.

Perform

AT-108, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> Replace the control valve with TCM. Refer to

AT-215, "Control Valve with TCM and A/T Fluid Tem-

perature Sensor 2"

.

6.

CHECK DTC

Perfor

AT-108, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.
