NOTE:
CAN data of the air bag diagnosis sensor unit is not used by usual service work, thus it is omitted.

Front wiper stop position signal

R

T

High beam status signal

R

R

T

Hood switch signal

R

T

Low beam status signal

R

R

T

Push-button ignition switch status signal

R

T

Steering lock unit status signal

R

T

Signal name/Connecting unit

ECM

AFS

AV

LANE

4WD

BCM

M&A

STRG

TCM

ADP

ABS

ICC

IPDM

-E

LAN-32

< COMPONENT DIAGNOSIS >

[CAN]

CAN COMMUNICATION SYSTEM

COMPONENT DIAGNOSIS

CAN COMMUNICATION SYSTEM

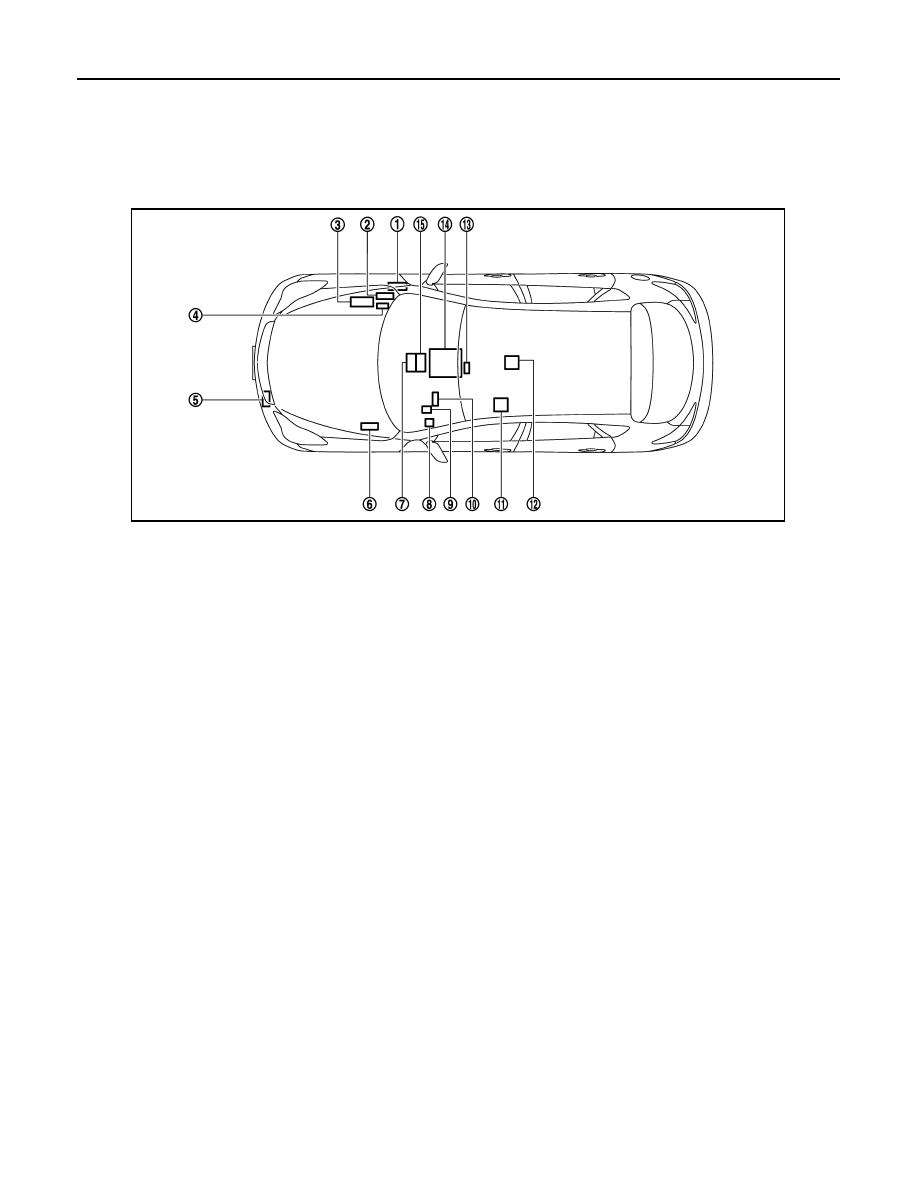

Component Parts Location

INFOID:0000000003137633

1.

BCM M122

2.

ECM M107

3.

IPDM E/R E6

4.

AWD control unit F108

5.

ICC sensor integrated unit E67

6.

ABS actuator and electric unit (con-
trol unit) E41

7.

Unified meter and A/C amp. M67

8.

AFS control unit M16

9.

Data link connector M24

10. Steering angle sensor M37

11.

Driver seat control unit B451

12. Air bag diagnosis sensor unit M147

13. Lane camera unit R8

14. A/T assembly F51

15. AV control unit

M85: Without NAVI
M87: With NAVI

JPMIA0912ZZ

LAN

CAN COMMUNICATION SYSTEM

LAN-33

< COMPONENT DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Wiring Diagram - CAN SYSTEM -

INFOID:0000000003137634

JCMWM1405GB

LAN-34

< COMPONENT DIAGNOSIS >

[CAN]

CAN COMMUNICATION SYSTEM

JCMWM1406GB
