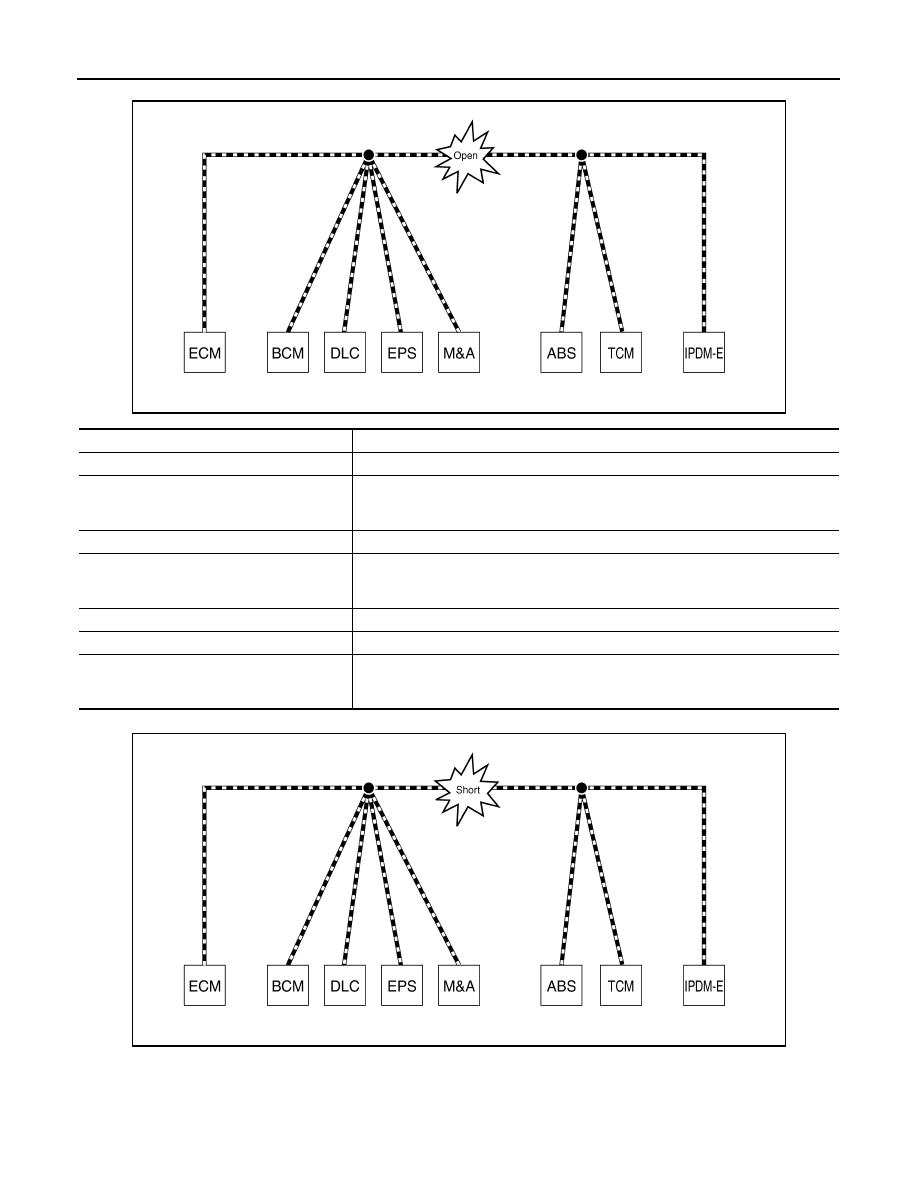

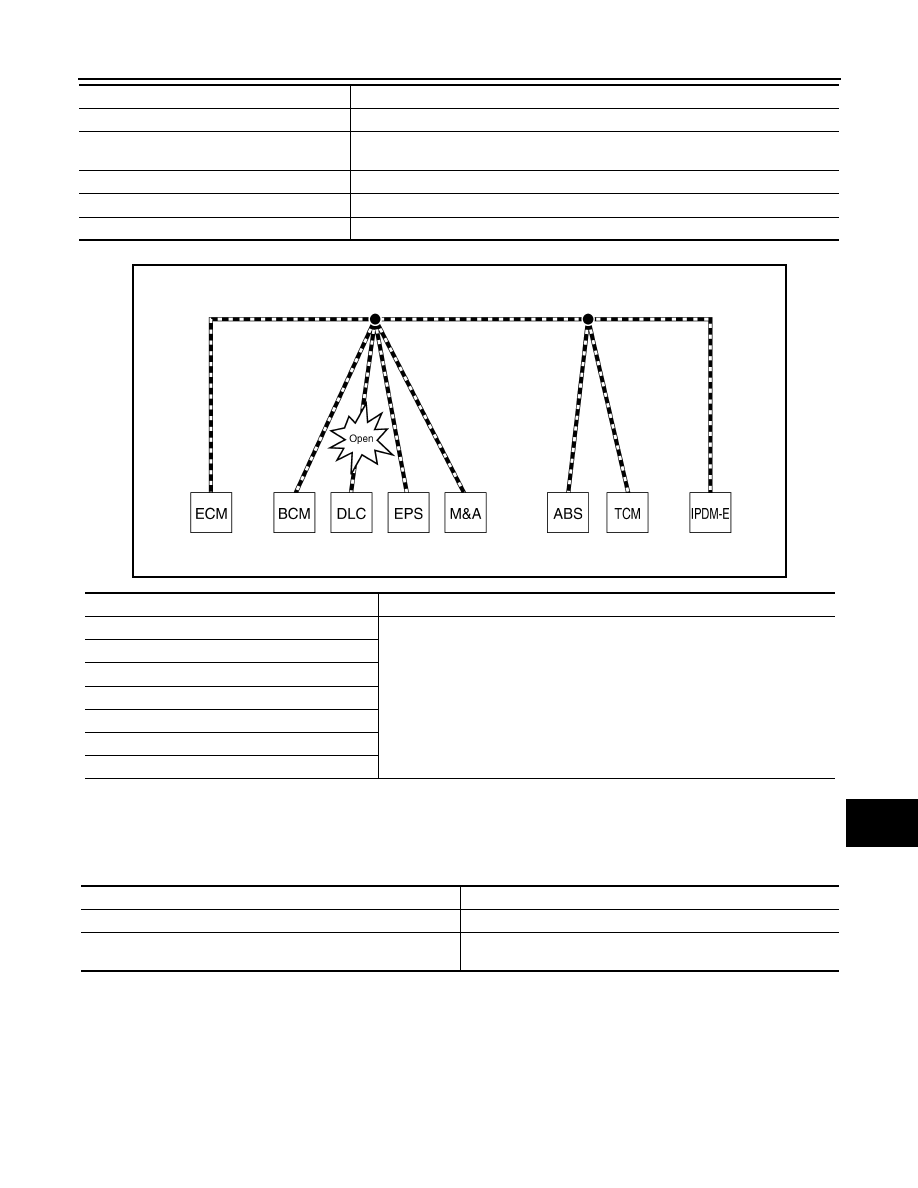

LAN DIAG ON CAN LAN-11 < FUNCTION DIAGNOSIS > [CAN FUNDAMENTAL] C D E F G H I J K L B A O P N DIAG ON CAN Description INFOID:0000000003516095 “Diag on CAN” is a diagnosis using CAN communication instead of previous DDL1 and DDL2 communication System Diagram INFOID:0000000003516096 SKIB8714E Name Harness Description DDL1 Tx It is used for trouble diagnosis. (CAN-H and CAN-L are used for controlling) DDL2 K-LINE It is used for trouble diagnosis. (CAN-H and CAN-L are used for controlling) Diag on CAN CAN-H It is used for trouble diagnosis and control. |
