Infiniti EX35. Manual - part 972





FRONT DOOR FINISHER

INT-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

7.

Disconnect lock knob cable (1), inside handle cable (2) and the
seat position switch harness connector (A).

8.

Disconnect the power window switch finisher harness connectors.

9.

Remove the front door finisher.

10. Remove the following parts after removing the front door finisher.

• Front door inside handle. Refer to

DLK-247, "INSIDE HANDLE : Removal and Installation"

.

• Seat memory switch. Refer to

ADP-211, "Removal and Installation"

.

• The power window switch finisher.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing door finisher, check that clips are securely fitted in panel holes on body, and then
press them in.

PASSENGER SIDE

JMJIA1512ZZ

INT-14

< ON-VEHICLE REPAIR >

FRONT DOOR FINISHER

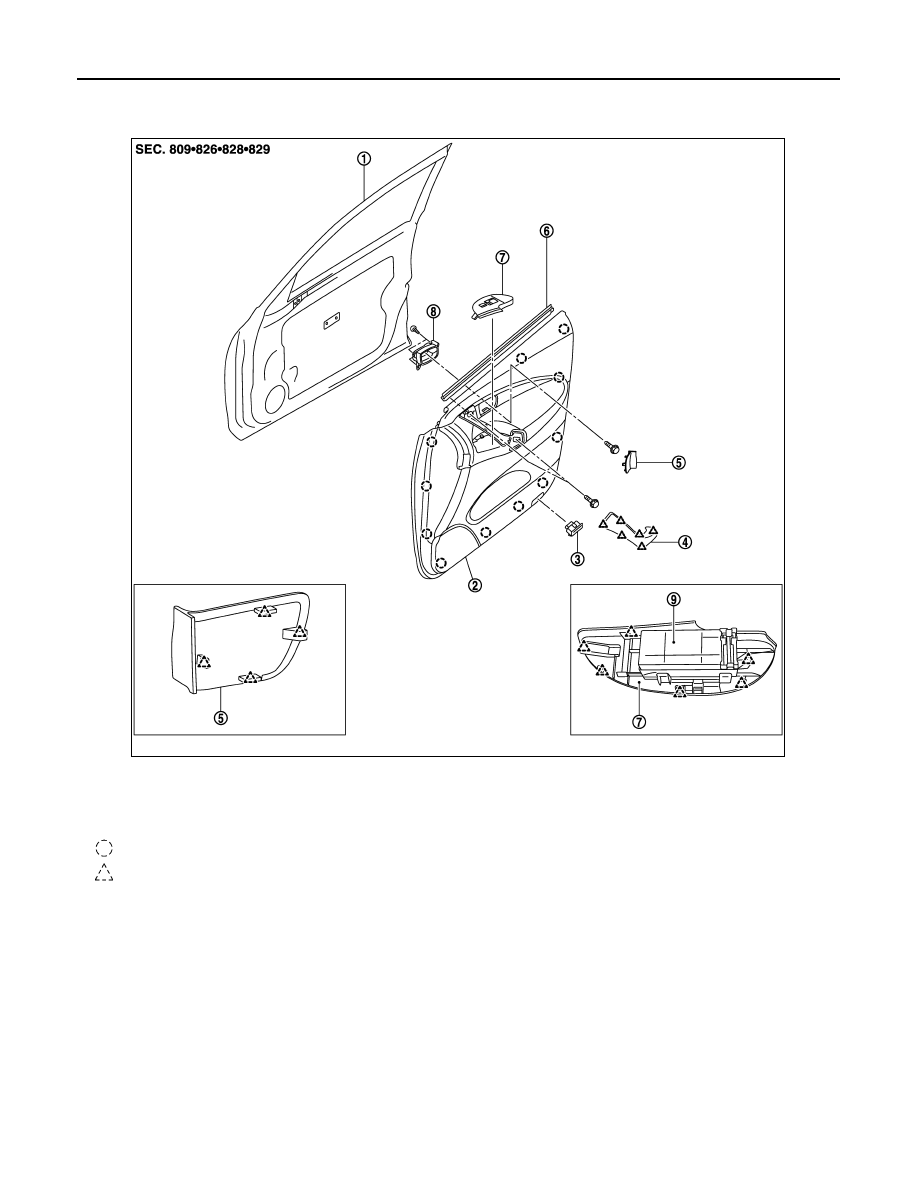

PASSENGER SIDE : Exploded View

INFOID:0000000003591417

PASSENGER SIDE : Removal and Installation

INFOID:0000000003591454

CAUTION:

Wrap the tip of flat-bladed screwdriver with a cloth before remove.

REMOVAL

1.

Fully open door window.

1.

Front door panel

2.

Front door finisher

3.

Step lamp

4.

Front door grip cap

5.

Inside handle escutcheon

6.

Front door inside seal

7.

Power window switch finisher

8.

Front door inside handle

9.

Power window switch

: Clip

: Pawl

JMJIA1513ZZ

FRONT DOOR FINISHER

INT-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

2.

Remove inside handle escutcheon (1) with a flatted-blade
screwdriver (A) wrapped in a tape as shown in the figure.

3.

Remove screw (A) located on the back side of inside handle
escutcheon.

4.

Insert a remover tool (A) wrapped into a shop cloth at the bottom
edge of front door grip cap to disengage the pawls.

5.

Remove front door grip cap.

6.

Remove front door grip fixing screws with tool.

7.

Remove step lamp (1) and then disconnect the harness connec-
tor.

: Pawl

JMJIA1514ZZ

JMJIA1515ZZ

: Pawl

JMJIA1517ZZ

: Screw

JMJIA1518ZZ

JMJIA1510ZZ

INT-16

< ON-VEHICLE REPAIR >

FRONT DOOR FINISHER

8.

Insert a remover tool (A) between the door finisher and door
panel to disengage the clips.

CAUTION:

Insert a remover tool (A) into the part show in the figure.
(Between the clips and the door panel)

9.

Disconnect lock knob cable (1) and inside handle cable (2) from
door inside handle assembly.

10. Disconnect the power window switch harness connector.

11. Remove the door finisher.

12. Remove the following parts after removing the door finisher.

• Front door inside handle. Refer to

DLK-247, "INSIDE HANDLE : Removal and Installation"

.

• Power window switch finisher.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing door finisher, check that clips are securely fitted in panel holes on body, and then
press them in.

: Clip

JMJIA1687ZZ

JMJIA0295ZZ
