PUDDLE LAMP

Exploded View

INFOID:0000000003567031

Puddle lamp is integrated into the door mirror assembly (driver side).
• With ADP. Refer to

MIR-52, "DOOR MIRROR ASSEMBLY : Exploded View"

.

• Without ADP. Refer to

MIR-73, "DOOR MIRROR ASSEMBLY : Exploded View"

.

INL-110

< ON-VEHICLE REPAIR >

LUGGAGE ROOM LAMP

LUGGAGE ROOM LAMP

LUGGAGE SIDE

LUGGAGE SIDE : Exploded View

INFOID:0000000003557523

LUGGAGE SIDE : Removal and Installation

INFOID:0000000003557524

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Insert any appropriate tool into the gap between the luggage room lamp (luggage side) and luggage side
finisher upper. And then remove the luggage room lamp (luggage side).

2.

Disconnect the luggage room lamp (luggage side) connector.

INSTALLATION

Install in the reverse order of removal.

LUGGAGE SIDE : Replacement

INFOID:0000000003557525

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LUGGAGE ROOM LAMP (LUGGAGE SIDE) BULB

1.

Remove the luggage room lamp (luggage side). Refer to

INL-110, "LUGGAGE SIDE : Exploded View"

.

2.

Remove the screw. And then remove the lens.

3.

Remove the bulb.

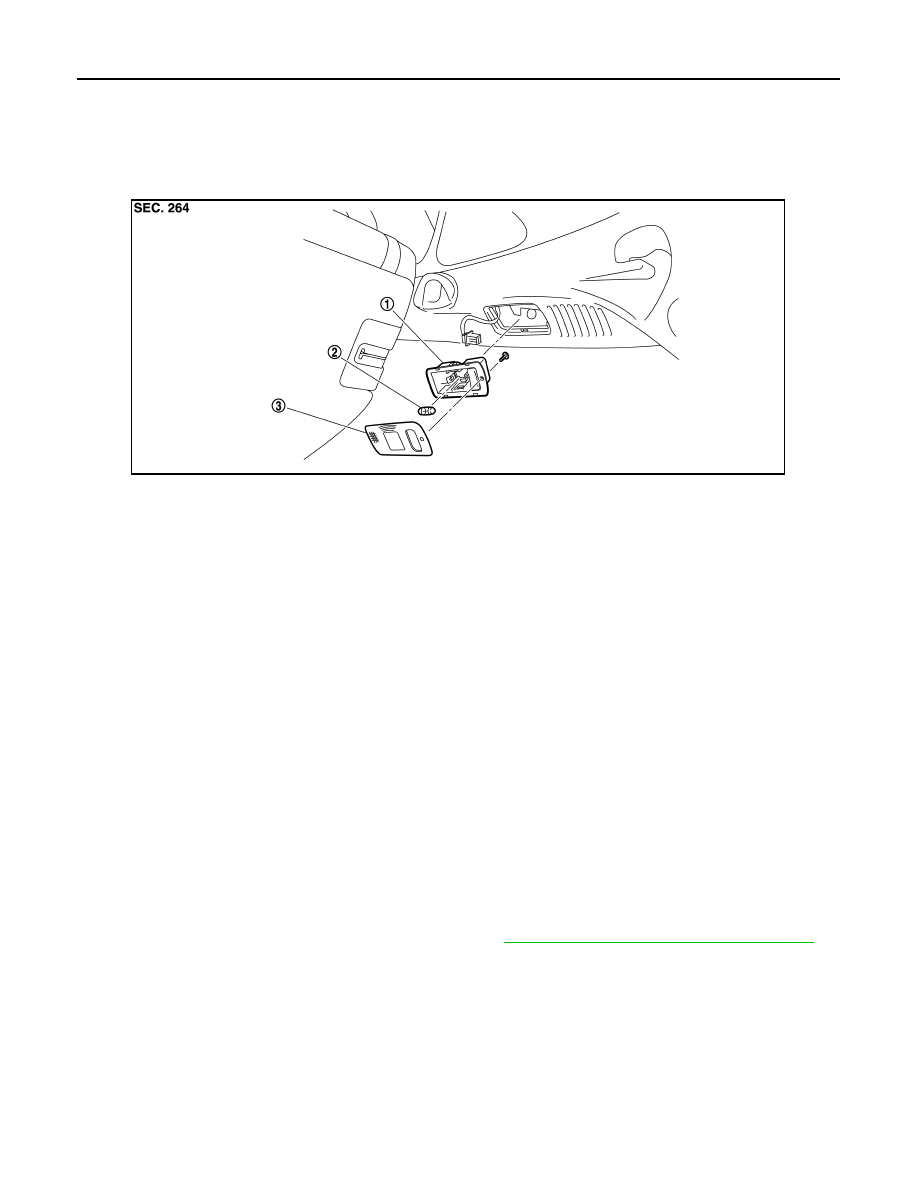

BACK DOOR SIDE

1.

Luggage room lamp (luggage side)
housing

2.

Bulb

3.

Lens

JPLIA0940ZZ

LUGGAGE ROOM LAMP

INL-111

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

BACK DOOR SIDE : Exploded View

INFOID:0000000003557526

BACK DOOR SIDE : Removal and Installation

INFOID:0000000003557527

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Insert any appropriate tool into the gap between the luggage room lamp (back door side) assembly and
back door finisher inner. Remove the luggage room lamp (back door side) assembly.

2.

Disconnect the luggage room lamp (back door side) connector.

INSTALLATION

Install in the reverse order of removal.

BACK DOOR SIDE : Replacement

INFOID:0000000003557528

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LUGGAGE ROOM LAMP BULB

1.

Remove the luggage room lamp (back door side). Refer to

INL-111, "BACK DOOR SIDE : Exploded

View"

.

2.

Remove the screw. And then remove the lens.

3.

Remove the bulb.

1.

Luggage room lamp (back door side)
assembly

2.

Lens

3.

Bulb

JPLIA0941ZZ

INL-112

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000003562688

Item

Type

Wattage (W)

Push-button ignition switch illumination

LED

—

Map lamp

Wedge

8

Console lamp
(integrated into the map lamp assembly)

LED

—

Puddle lamp

LED

—

Vanity mirror lamp

—

2

Cigarette lighter illumination

Wedge

1.4

Glove box lamp

Wedge

1.4

Foot lamp

Wedge

1.4

Step lamp

Wedge

8

Personal lamp

Wedge

8

Luggage room lamp

—

8
