VANITY MIRROR LAMP

INL-101

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

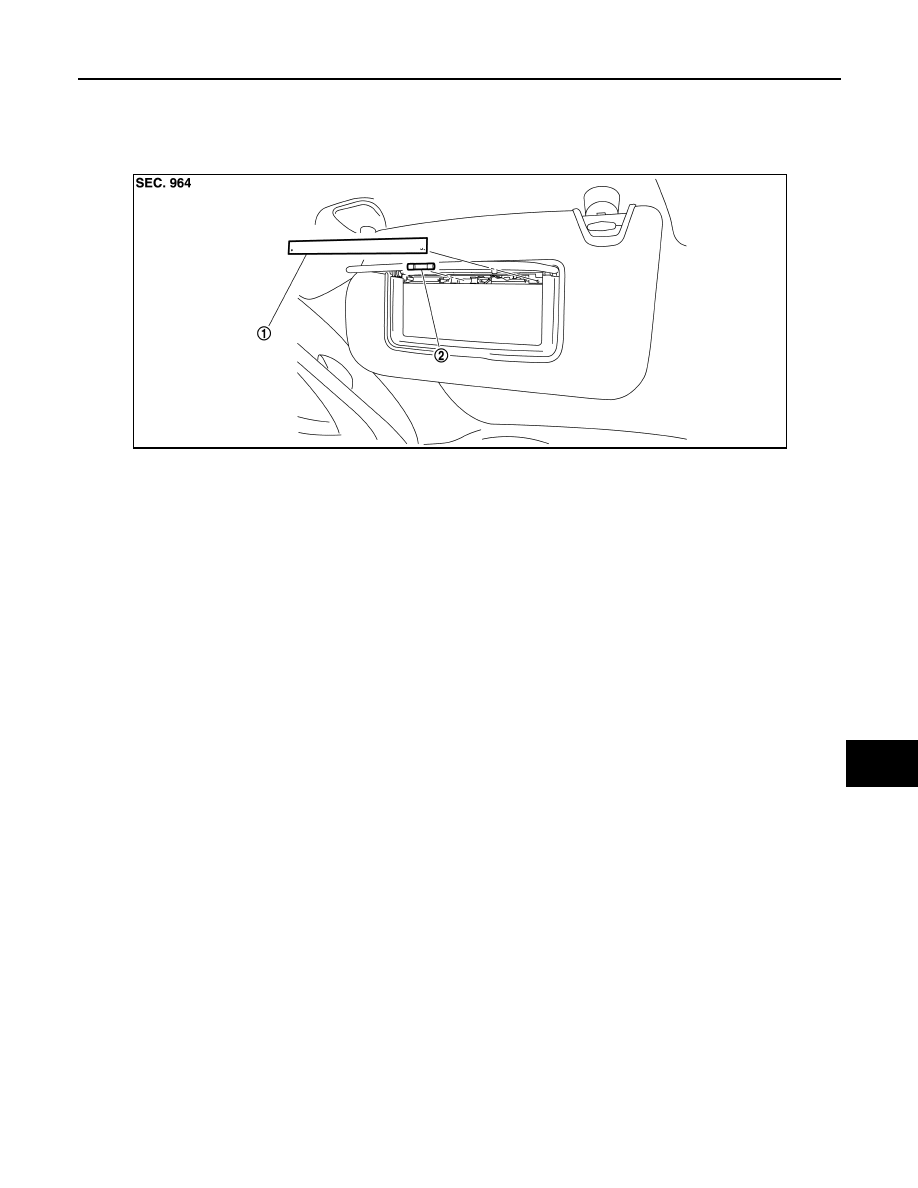

VANITY MIRROR LAMP

Exploded View

INFOID:0000000003135178

Replacement

INFOID:0000000003135179

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

VANITY MIRROR LAMP BULB

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Remove the bulb.

1.

Lens

2.

Bulb

JPLIA0933ZZ

INL-102

< ON-VEHICLE REPAIR >

CIGARETTE LIGHTER ILLUMINATION

CIGARETTE LIGHTER ILLUMINATION

Exploded View

INFOID:0000000003566853

Replacement

INFOID:0000000003566854

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

CIGARETTE LIGHTER ILLUMINATION BULB

1.

Remove the console finisher. Refer to

IP-22, "Exploded View"

.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb.

1.

Bulb socket

2.

Bulb

JPLIA0934ZZ

GLOVE BOX LAMP

INL-103

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

GLOVE BOX LAMP

Exploded View

INFOID:0000000003135182

Replacement

INFOID:0000000003135183

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

GLOVE BOX LAMP BULB

1.

Remove the glove box assembly. Refer to

IP-11, "Exploded View"

.

2.

Remove the instrument assist lower panel. Refer to

IP-11, "Exploded View"

.

3.

Rotate the bulb socket counterclockwise and unlock it.

4.

Remove the bulb.

1.

Bulb socket

2.

Bulb

JPLIA0935ZZ

INL-104

< ON-VEHICLE REPAIR >

FOOT LAMP

FOOT LAMP

DRIVER SIDE

DRIVER SIDE : Exploded View

INFOID:0000000003552679

DRIVER SIDE : Replacement

INFOID:0000000003552680

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

FOOT LAMP BULB (DRIVER SIDE)

1.

Remove the instrument driver lower panel. Refer to

IP-11, "Exploded View"

.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb.

PASSENGER SIDE

PASSENGER SIDE : Exploded View

INFOID:0000000003552681

1.

Bulb socket

2.

Bulb

JPLIA0938ZZ

JPLIA0939ZZ
