Infiniti EX35. Manual - part 930





HAC-116

< ECU DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

ECM

59

Ground

O

Camshaft position sen-
sor (PHASE) (bank 1)

Input

[Engine is running]
• Warm-up condition
• Idle speed

NOTE:
The pulse cycle changes de-
pending on rpm at idle

3.0 - 5.0

[Engine is running]
• Engine speed: 2,000 rpm

3.0 - 5.0

60

Ground

R

Sensor power supply
[Camshaft position sen-
sor (PHASE) (bank 1),
Exhaust valve timing
control position sensor
(bank 1), Power steering
pressure sensor]

[Ignition switch: ON]

5V

61

Ground

R

A/F sensor 1 (bank 1)

Input

[Engine is running]
• Warm-up condition
• Engine speed: 2,000 rpm

1.8V
Output voltage varies with air fuel
ratio.

62

Ground

G

Exhaust valve timing
control position sensor
(bank 2)

Input

[Engine is running]
• Warm-up condition
• Idle speed

NOTE:
The pulse cycle changes de-
pending on rpm at idle

4.0 - 5.0

[Engine is running]
• Warm-up condition
• Engine speed: 2,000 rpm

4.0 - 5.0

Terminal No.

Wire

color

Description

Condition

Value

(Approx.)

+

-–

Signal name

Input/

Output

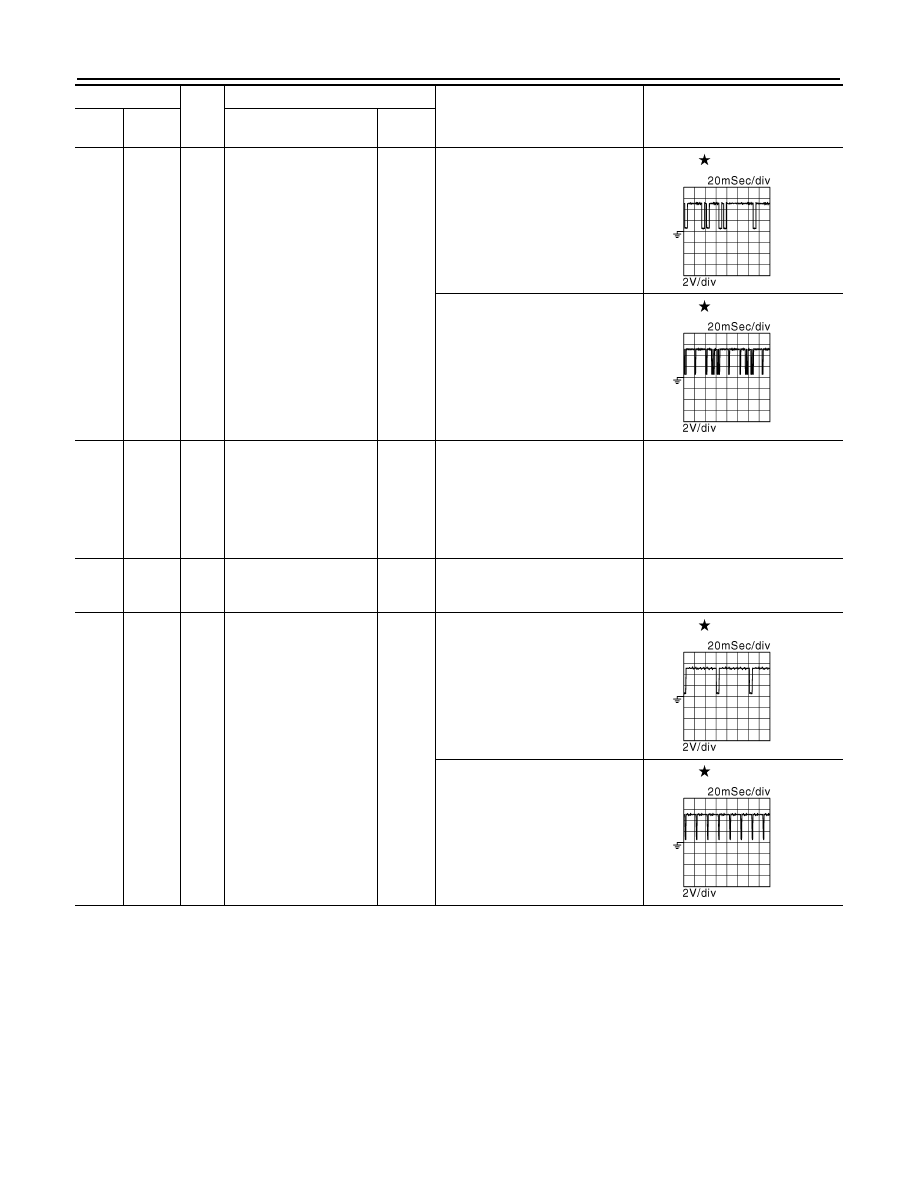

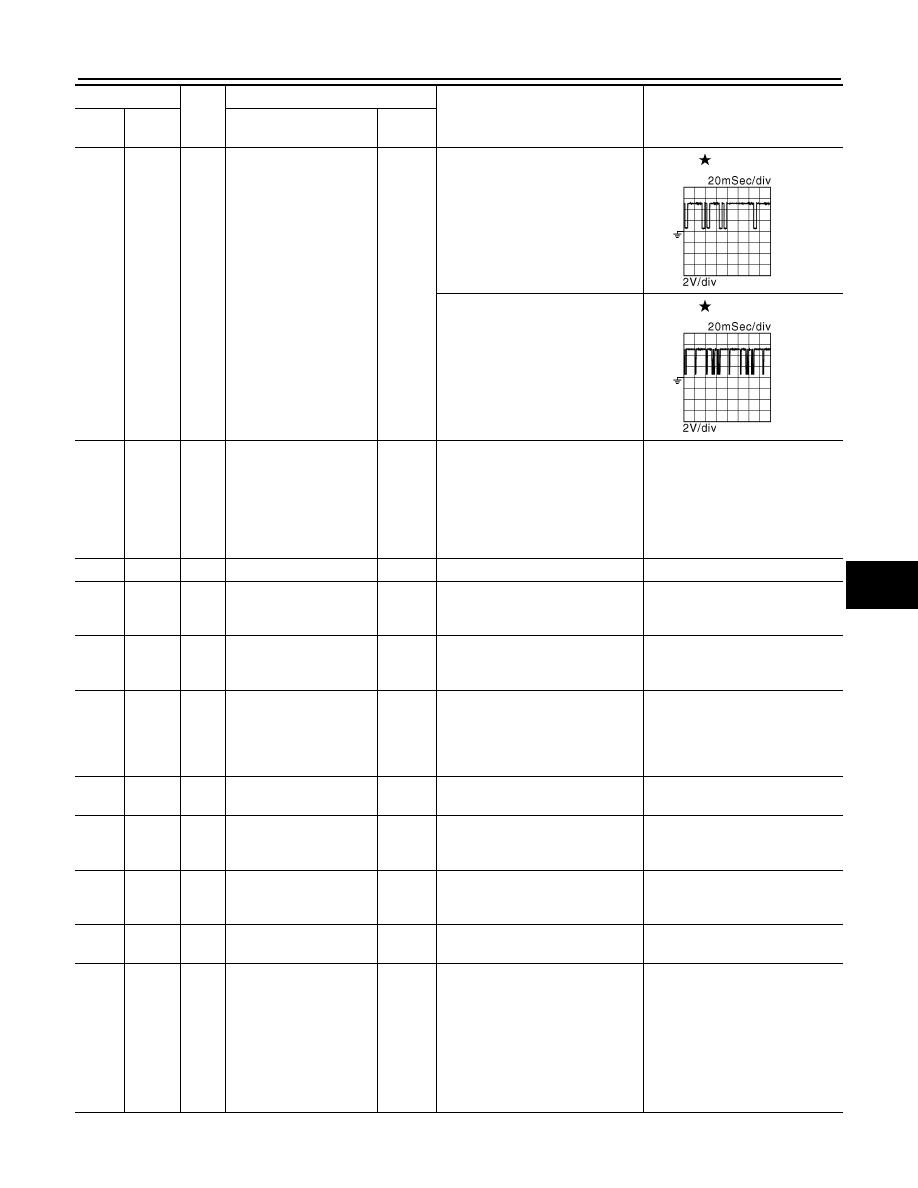

JMBIA0045GB

JMBIA0046GB

JMBIA0043GB

JMBIA0044GB

ECM

HAC-117

< ECU DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

63

Ground

SB

Camshaft position sen-
sor (PHASE) (bank 2)

Input

[Engine is running]
• Warm-up condition
• Idle speed

NOTE:
The pulse cycle changes de-
pending on rpm at idle

3.0 - 5.0

[Engine is running]
• Engine speed: 2,000 rpm

3.0 - 5.0

64

Ground

W

Sensor power supply
[Camshaft position sen-
sor (PHASE) (bank 2),
Exhaust valve timing
control position sensor
(bank 2), Battery current
sensor]

[Ignition switch: ON]

5V

65

Ground

V

A/F sensor 1 (bank 2)

Input

[Ignition switch: ON]

2.2V

66

Ground

LG

A/F sensor 1 (bank 2)

Input

[Engine is running]
• Warm-up condition
• Engine speed: 2,000 rpm

1.8V
Output voltage varies with air fuel
ratio.

67

Ground

P

Intake air temperature
sensor (bank 1)

Input

[Engine is running]

0 - 4.8V
Output voltage varies with intake
air temperature.

68

Ground

LG

Sensor ground
[Mass air flow sensor
(bank 1), Intake air tem-
perature sensor (bank
1)]

[Engine is running]
• Warm-up condition
• Idle speed

0V

69

Ground

W

Knock sensor (bank 2)

Input

[Engine is running]
• Idle speed

2.5V*

1

71

Ground

Y

Engine coolant tempera-
ture sensor

Input

[Engine is running]

0 - 4.8V
Output voltage varies with engine
coolant temperature.

72

Ground

Sensor ground
(Knock sensor)

[Engine is running]
• Warm-up condition
• Idle speed

0V

73

Ground

W

Knock sensor (bank 1)

Input

[Engine is running]
• Idle speed

2.5V*

1

76

Ground

W

Heated oxygen sensor 2
(bank 1)

Input

[Engine is running]
• Revving engine from idle to

3,000 rpm quickly after the fol-
lowing conditions are met

- Engine: after warming up
- Keeping the engine speed be-

tween 3,500 and 4,000 rpm for 1
minute and at idle for 1 minute
under no load

0 - 1.0V

Terminal No.

Wire

color

Description

Condition

Value

(Approx.)

+

-–

Signal name

Input/

Output

JMBIA0045GB

JMBIA0046GB

HAC-118

< ECU DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

ECM

77

Ground

SB

Mass air flow sensor
(bank 1)

Input

[Engine is running]
• Warm-up condition
• Idle speed

0.8 - 1.1V

[Engine is running]
• Warm-up condition
• Engine speed: 2,500 rpm

1.4 - 1.7V

78

Ground

G

Engine oil temperature
sensor

Input

[Engine is running]

0 - 4.8V
Output voltage varies with engine
oil temperature.

79

Ground

GR

Mass air flow sensor
(bank 2)

Input

[Engine is running]
• Warm-up condition
• Idle speed

0.8 - 1.1V

[Engine is running]
• Warm-up condition
• Engine speed: 2,500 rpm

1.4 - 1.7V

80

Ground

O

Heated oxygen sensor 2
(bank 2)

Input

[Engine is running]
• Revving engine from idle to

3,000 rpm quickly after the fol-
lowing conditions are met

- Engine: after warming up
- Keeping the engine speed be-

tween 3,500 and 4,000 rpm for 1
minute and at idle for 1 minute
under no load

0 - 1.0V

81
82
85
86
89
90

Ground

R
V

BR

W

GR

O

Fuel injector No. 3
Fuel injector No. 6
Fuel injector No. 2
Fuel injector No. 5
Fuel injector No. 1
Fuel injector No. 4

Output

[Engine is running]
• Warm-up condition
• Idle speed

NOTE:
The pulse cycle changes de-
pending on rpm at idle

BATTERY VOLTAGE

(11 - 14V)

[Engine is running]
• Warm-up condition
• Engine speed: 2,000 rpm

BATTERY VOLTAGE

(11 - 14V)

83

Ground

G

Intake air temperature
sensor (bank 2)

Input

[Engine is running]

0 - 4.8V
Output voltage varies with intake
air temperature.

84

Ground

B

Sensor ground
(Heated oxygen sensor
2, Engine coolant tem-
perature sensor, Engine
oil temperature sensor)

[Engine is running]
• Warm-up condition
• Idle speed

0V

87

Ground

Y

Power steering pressure
sensor

Output

[Engine is running]
• Steering wheel: Being turned

0.5 - 4.5V

[Engine is running]
• Steering wheel: Not being turned

0.4 - 0.8V

Terminal No.

Wire

color

Description

Condition

Value

(Approx.)

+

-–

Signal name

Input/

Output

JMBIA0047GB

JMBIA0048GB

ECM

HAC-119

< ECU DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

88

Ground

LG

Sensor ground
[Exhaust valve timing
control position sensor
(bank 1), Exhaust valve
timing control position
sensor (bank 2)]

[Engine is running]
• Warm-up condition
• Idle speed

0V

91

Ground

SB

Battery current sensor

Input

[Engine is running]

• Battery: Fully charged*

2

• Idle speed

2.6 - 3.5V

92

Ground

P

Sensor ground
[Camshaft position sen-
sor (PHASE) (bank 2)]

[Engine is running]
• Warm-up condition
• Idle speed

0V

93

Ground

P

Power supply for ECM
(Back-up)

Input

[Ignition switch: OFF]

BATTERY VOLTAGE
(11 - 14V)

94

Ground

LG

Sensor ground
[Mass air flow sensor
(bank 2)]

[Engine is running]
• Warm-up condition
• Idle speed

0V

95

Ground

G

Sensor ground
(Battery current sensor)

[Engine is running]
• Warm-up condition
• Idle speed

0V

96

Ground

B

Sensor ground
[Camshaft position sen-
sor (PHASE) (bank 1),
Power steering pressure
sensor]

[Engine is running]
• Warm-up condition
• Idle speed

0V

97

Ground

R

Accelerator pedal posi-
tion sensor 1

Input

[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully re-

leased

0.5 - 1.0V

[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully de-

pressed

4.2 - 4.8V

98

Ground

P

Accelerator pedal posi-
tion sensor 2

Input

[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully re-

leased

0.25 - 0.50V

[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully de-

pressed

2.0 - 2.5V

99

Ground

L

Sensor power supply
(Accelerator pedal posi-
tion sensor 1)

[Ignition switch: ON]

5V

100

Ground

W

Sensor ground
(Accelerator pedal posi-
tion sensor 1)

[Engine is running]
• Warm-up condition
• Idle speed

0V

Terminal No.

Wire

color

Description

Condition

Value

(Approx.)

+

-–

Signal name

Input/

Output
