Infiniti EX35. Manual - part 916





HAC-60

< FUNCTION DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

DIAGNOSIS SYSTEM (UNIFIED METER & A/C AMP.)

Without rear ventilation

With rear ventilation

Is the inspection result normal?

YES

>> GO TO 6.

NO-1

>> Air outlet does not change. Go to Mode Door Motor Circuit. Refer to

HAC-70, "Diagnosis Proce-

dure"

.

NO-2

>> Intake door does not change. Go to Intake Door Motor Circuit. Refer to

HAC-78, "Diagnosis Pro-

cedure"

.

NO-3

>> Discharge air temperature does not change. Go to Air Mix Door Motor Circuit. Refer to

HAC-73,

"WITHOUT LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYS-
TEM : Diagnosis Procedure"

.

NO-4

>> Blower motor operation is malfunctioning. Go to Blower Motor Circuit. Refer to

HAC-81, "WITH-

OUT LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM :
Diagnosis Procedure"

.

NO-5

>> Magnet clutch does not engage. Go to Magnet Clutch Circuit. Refer to

HAC-88, "Diagnosis Proce-

dure"

.

6.

STEP-5: TEMPERATURE OF EACH SENSOR IS CHECKED

1.

Turn temperature control dial clockwise.

2.

Code No. 51 appears on the display.

>> GO TO 7.

7.

CHECK AMBIENT SENSOR

JSIIA0242GB

JSIIA0893GB

DIAGNOSIS SYSTEM (UNIFIED METER & A/C AMP.)

HAC-61

< FUNCTION DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Press DEF (

) switch one time. Temperature detected by ambient

sensor is indicated on the display.
NOTE:
Check sensor circuit first if the temperature indicated on the display
greatly differs from the actual temperature, and then check sensor.
Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Go to Ambient Sensor Circuit. Refer to

HAC-91, "Diag-

nosis Procedure"

.

8.

CHECK IN-VEHICLE SENSOR

Press DEF (

) switch for the second time. Temperature detected

by in-vehicle sensor is indicated on the display.
NOTE:
Check sensor circuit first if the temperature indicated on the display
greatly differs from the actual temperature, and then check sensor.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Go to In-vehicle Sensor Circuit. Refer to

HAC-95, "Diag-

nosis Procedure"

.

9.

CHECK INTAKE SENSOR

Press DEF (

) switch for the third time. Temperature detected by

intake sensor is indicated on the display.
NOTE:
Check sensor circuit first if the temperature indicated on the display
greatly differs from the actual temperature, and then check sensor.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Go to Intake Sensor Circuit. Refer to

HAC-100, "Diagno-

sis Procedure"

.

10.

CHECK CAN COMMUNICATION ERROR

1.

Press intake switch.

2.

CAN communication error between each unit that uses the uni-
fied meter and A/C amp. can be detected as self-diagnosis
results. (The display of each error will blink twice for 0.5 second
intervals if plural errors occur.)

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to CAN communication (Unified meter and A/C amp.

- AV control unit). Refer to

MWI-44,

"Diagnosis Procedure"

.

11.

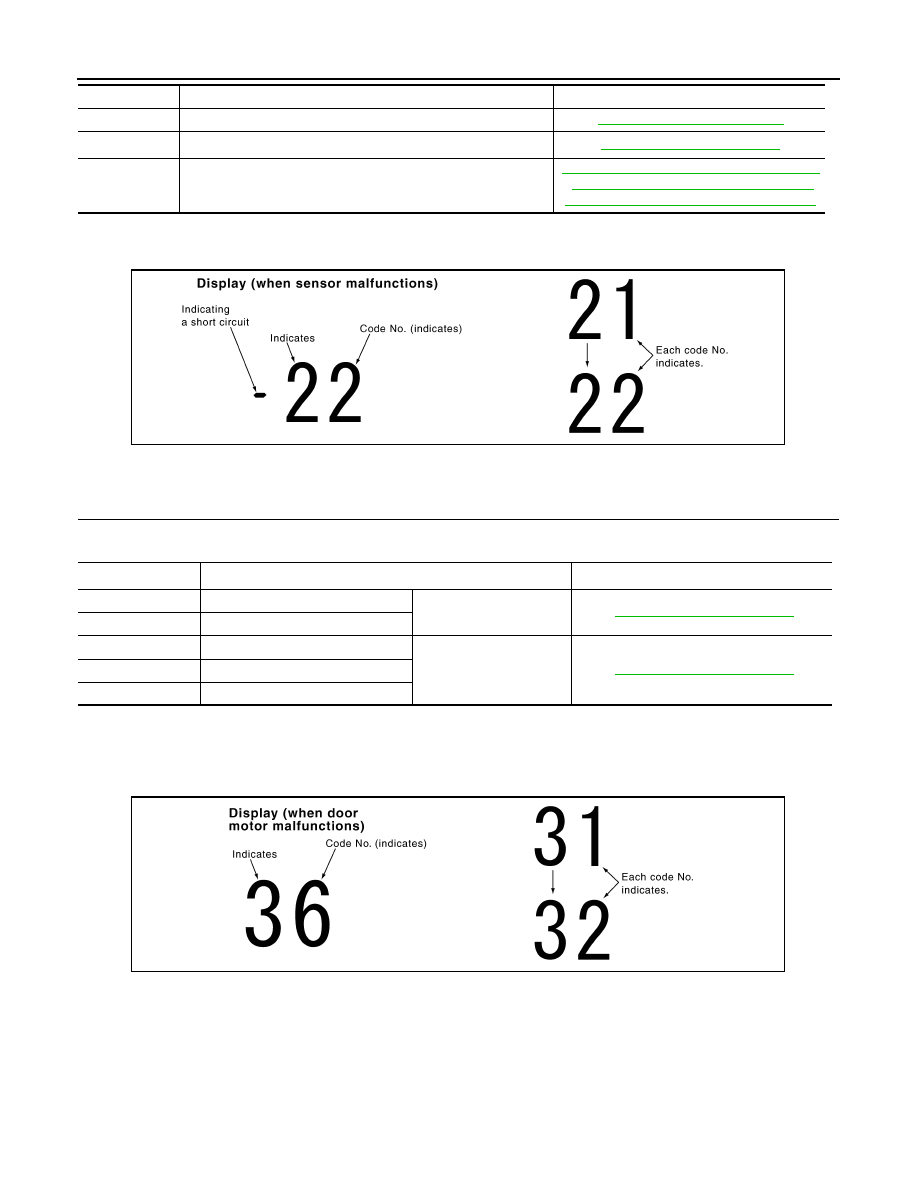

CHECK MALFUNCTIONING SENSOR AND DOOR MOTOR

Refer to the following chart for malfunctioning code No.
(Corresponding code Nos. indicates 1 second each if two or more sensors and door motor malfunction.)

PJIA0151E

PJIA0152E

PJIA0153E

JSIIA0138GB

Code No.

Malfunctioning sensor and door motor (Including circuits)

Reference

21 /

21

Ambient sensor

HAC-91, "Diagnosis Procedure"

22 /

22

In-vehicle sensor

HAC-95, "Diagnosis Procedure"

HAC-62

< FUNCTION DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

DIAGNOSIS SYSTEM (UNIFIED METER & A/C AMP.)

*: Perform self-diagnosis STEP-2 under sunshine.
When performing indoors, aim a light (more than 60 W) at sunload sensor, otherwise code No. 25 indicates
despite that sunload sensor is functioning normally.

>> INSPECTION END

12.

CHECK MALFUNCTIONING DOOR MOTOR POSITION SWITCH

Mode and/or intake door motor PBR(s) is/are malfunctioning.

(Corresponding code Nos. indicates 1 second each if two or more mode or intake door motors malfunction.)
*1: The following display pattern will appear if mode door motor harness connector is disconnected.
31

32

Return to 31

*2: The following display pattern will appear if intake door motor harness connector is disconnected.
37

38

39

Return to 37

>> INSPECTION END

WITHOUT LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CON-
TROL SYSTEM : CONSULT-III Function

INFOID:0000000003545586

CONSULT-III APPLICATION ITEMS

CONSULT-III can display each diagnosis item using the diagnosis test modes shown as per the following.

24 /

24

Intake sensor

HAC-100, "Diagnosis Procedure"

25 /

25

Sunload sensor

*

HAC-97, "Diagnosis Procedure"

26 /

26

Air mix door motor PBR

HAC-73, "WITHOUT LEFT AND RIGHT VEN-

TILATION TEMPERATURE SEPARATELY

CONTROL SYSTEM : Diagnosis Procedure"

Code No.

Malfunctioning sensor and door motor (Including circuits)

Reference

SJIA1781E

Code No.

*1 *2

Mode or intake door position

Reference

31

VENT

Mode door motor

HAC-70, "Diagnosis Procedure"

32

DEF

37

FRE

Intake door motor

HAC-78, "Diagnosis Procedure"

38

20% FRE

39

REC

SJIA1782E

DIAGNOSIS SYSTEM (UNIFIED METER & A/C AMP.)

HAC-63

< FUNCTION DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

DATA MONITOR

Display Item List

WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CON-
TROL SYSTEM

WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL
SYSTEM : Diagnosis Description

INFOID:0000000003545587

SELF-DIAGNOSIS SYSTEM

The self-diagnosis system is built into the unified meter and A/C amp. to quickly locate the cause of malfunc-
tions.

SELF-DIAGNOSIS FUNCTION

• The self-diagnosis system diagnoses sensors, door motors, blower motor, etc. by system line. Refer to appli-

cable sections (items) for details. Shifting from normal control to the self-diagnosis system is accomplished
by starting the engine (turning the ignition switch ON) and pressing OFF switch for at least 5 seconds. The
OFF switch must be pressed within 10 seconds after starting the engine (ignition switch is turned ON). This
system is canceled by either pressing AUTO switch or turning the ignition switch OFF. Shifting from one step
is accomplished by means of turning temperature control dial (driver side), as required.

• Shifting from STEP-5 to AUXILIARY MECHANISM is accomplished by means of pressing fan (UP:+) switch.
- Temperature setting trimmer. Refer to

HAC-13, "WITH LEFT AND RIGHT VENTILATION TEMPERATURE

SEPARATELY CONTROL SYSTEM : Temperature Setting Trimmer"

.

- Foot position setting trimmer. Refer to

HAC-14, "WITH LEFT AND RIGHT VENTILATION TEMPERATURE

SEPARATELY CONTROL SYSTEM : Foot Position Setting Trimmer"

.

System part

Check item, diagnosis mode

Description

ECM

Data monitor

Displays ECM input data in real time.

Monitor Item

Condition

Value/Status

IGNITION SW

Ignition switch OFF

 ON

Off

 On

HEATER FAN SW

Ignition switch ON

Blower fan motor switch ON

On

Blower fan motor switch OFF

Off

AIR COND SIG

Ignition switch ON

Compressor ON

On

Compressor OFF

Off

REFRIGERANT PRESSURE
SENSOR

• Engine is running
• Warm-up condition
• Both A/C switch and blower fan motor switch: ON (Compressor

operates)

1.0 - 4.0 V
