Infiniti EX35. Manual - part 898

LOW-PRESSURE PIPE 1 AND HIGH-PRESSURE PIPE 2

HA-51

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

4.

Disconnect one-touch joint between low-pressure pipe 1 (1) and
low-pressure pipe 2 (2) with disconnector (SST: 9253089916)
(A).

CAUTION:

Cap or wrap the joint of the A/C piping with suitable mate-
rial such as vinyl tape to avoid the entry of air.

5.

Disconnect one-touch joints between high-pressure pipe 1 (4)
and high-pressure pipe 2 (3) with disconnector (SST:
9253089908).

CAUTION:

Cap or wrap the joint of the A/C piping with suitable mate-
rial such as vinyl tape to avoid the entry of air.

6.

Remove blower unit. Refer to

VTL-31, "Exploded View"

.

7.

Remove foot grille (right). Refer to

VTL-59, "FOOT GRILLE : Exploded View"

.

8.

Remove air mix door motor (passenger side). Refer to

VTL-43, "Exploded View"

.

9.

Remove mode door motor. Refer to

VTL-41, "Exploded View"

.

10. Remove mounting screws (A), and then remove bracket (1).

VTL-41, "Exploded View"

11. Remove main link (2). Refer to

VTL-41, "Exploded View"

.

12. Remove max. cool door link. Refer to

VTL-41, "Exploded View"

.

13. Remove mounting screws (A), and then remove evaporator

cover (1).

JPIIA0657ZZ

JPIIA0694ZZ

JPIIA0695ZZ

JPIIA0696ZZ

HA-52

< ON-VEHICLE REPAIR >

LOW-PRESSURE PIPE 1 AND HIGH-PRESSURE PIPE 2

14. Remove mounting bolt (A), and then remove low-pressure pipe

1 (1) and high-pressure pipe 2 (2).

CAUTION:

Cap or wrap the joint of the A/C piping and expansion valve
with suitable material such as vinyl tape to avoid the entry
of air.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• Check for leakages when recharging refrigerant.

JPIIA0697ZZ

CONDENSER

HA-53

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

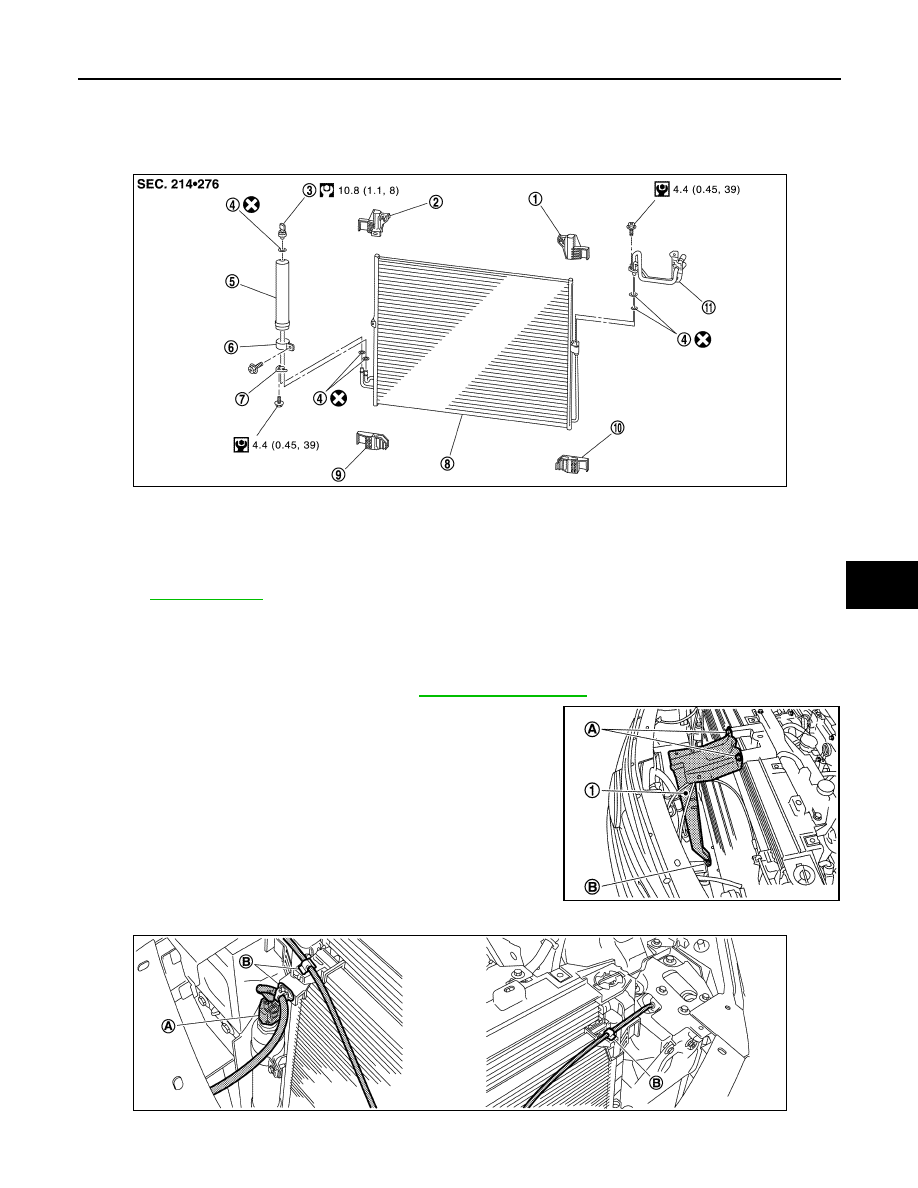

CONDENSER

Exploded View

INFOID:0000000003545487

Removal and Installation

INFOID:0000000003545488

REMOVAL

1.

Remove condenser pipe assembly. Refer to

HA-55, "Exploded View"

.

2.

Remove mounting bolts (A) and nut (B), and then remove radia-
tor core support bracket (1).

3.

Disconnect refrigerant pressure sensor connector (A) and harness clips (B).

1.

Condenser upper bracket (left)

2.

Condenser upper bracket (right)

3.

Refrigerant pressure sensor

4.

O-ring

5.

Liquid tank

6.

Liquid tank bracket

7.

Bracket

8.

Condenser

9.

Condenser lower bracket (right)

10. Condenser lower bracket (left)

11.

Condenser pipe assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JPIIA0704GB

JPIIA0706ZZ

JPIIA0707ZZ

HA-54

< ON-VEHICLE REPAIR >

CONDENSER

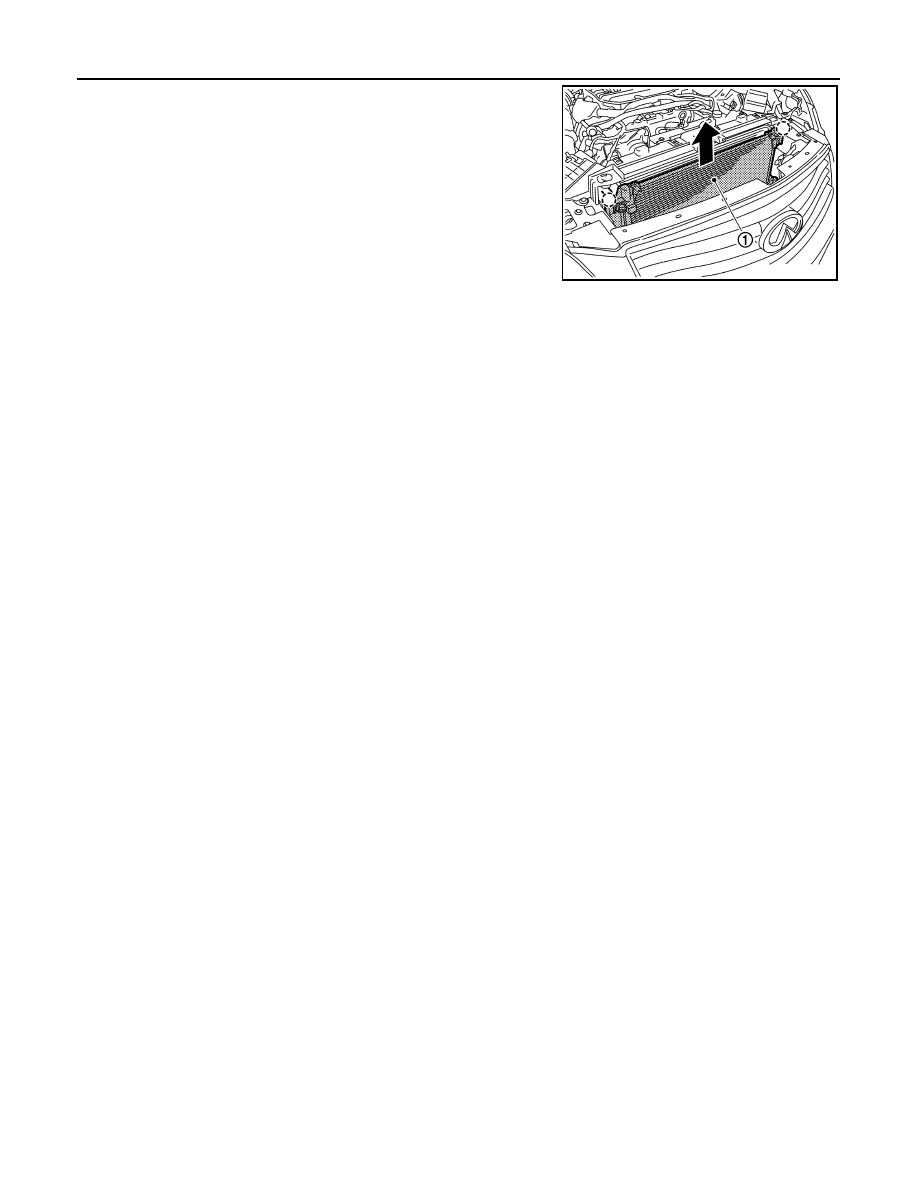

4.

Pull condenser (1) upward of vehicle, and then remove con-
denser (as shown in the figure).

CAUTION:

Be careful not to damage core surface of condenser.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• Check for leakages when recharging refrigerant.

JPIIA0708ZZ
