(J-43926)
Refrigerant dye leak detection
kit
Kit includes:
(J-42220)
UV lamp and UV safety goggles
(J-41459)
HFC-134a (R-134a) dye injector
Use with J-41447, 1/4 ounce
bottle
(J-41447)
HFC-134a (R-134a) fluorescent
leak detection dye
(Box of 24, 1/4 ounce bottles)
(J-43872)
Refrigerant dye cleaner

Power supply:
DC 12 V (Battery terminal)

(J-42220)
 UV lamp and UV safety goggles

Power supply:
DC 12 V (Battery terminal)
For checking refrigerant leakage when flu-
orescent dye is equipped in A/C system
Includes:
UV lamp and UV safety goggles

(J-41447)
HFC-134a (R-134a) fluorescent
leak detection dye
(Box of 24, 1/4 ounce bottles)

Application:
For HFC-134a (R-134a) PAG oil
Container:
1/4 ounce (7.4 cc) bottle
(Includes self-adhesive dye identification
labels for affixing to vehicle after charging
system with dye.)

(J-41459)
HFC-134a (R-134a) dye injector
Use with J-41447, 1/4 ounce
bottle

For injecting 1/4 ounce of fluorescent leak
detection dye into A/C system

(J-43872)
Refrigerant dye cleaner

For cleaning dye spills

Tool number

(Kent-Moore No.)

Tool name

Description

ZHA200H

SHA438F

SHA439F

SHA440F

SHA441F

HA-24

< PREPARATION >

PREPARATION

(J-39183)
Manifold gauge set (with hoses
and couplers)

Identification:
• The gauge face indicates HFC-134a (R-

134a).

Fitting size: Thread size

• 1/2

″

-16 ACME

Service hoses
• High-pressure side hose

(J-39501-72)

• Low-pressure side hose

(J-39502-72)

• Utility hose

(J-39476-72)

Hose color:
• Low-pressure side hose: Blue with black

stripe

• High-pressure side hose: Red with black

stripe

• Utility hose: Yellow with black stripe or

green with black stripe

Hose fitting to gauge:

• 1/2

″

-16 ACME

Service couplers
• High-pressure side coupler

(J-39500-20)

• Low-pressure side coupler

(J-39500-24)

Hose fitting to service hose:
M14 x 1.5 fitting is optional or permanently
attached.

(J-39650)
Refrigerant weight scale

For measuring of refrigerant
Fitting size: Thread size

1/2

″

-16 ACME

(J-39649)
Vacuum pump
(Including the isolator valve)

Capacity:
• Air displacement: 4 CFM
• Micron rating: 20 microns
• Oil capacity: 482 g (17 oz.)
Fitting size: Thread size

• 1/2

″

-16 ACME

Tool number

(Kent-Moore No.)

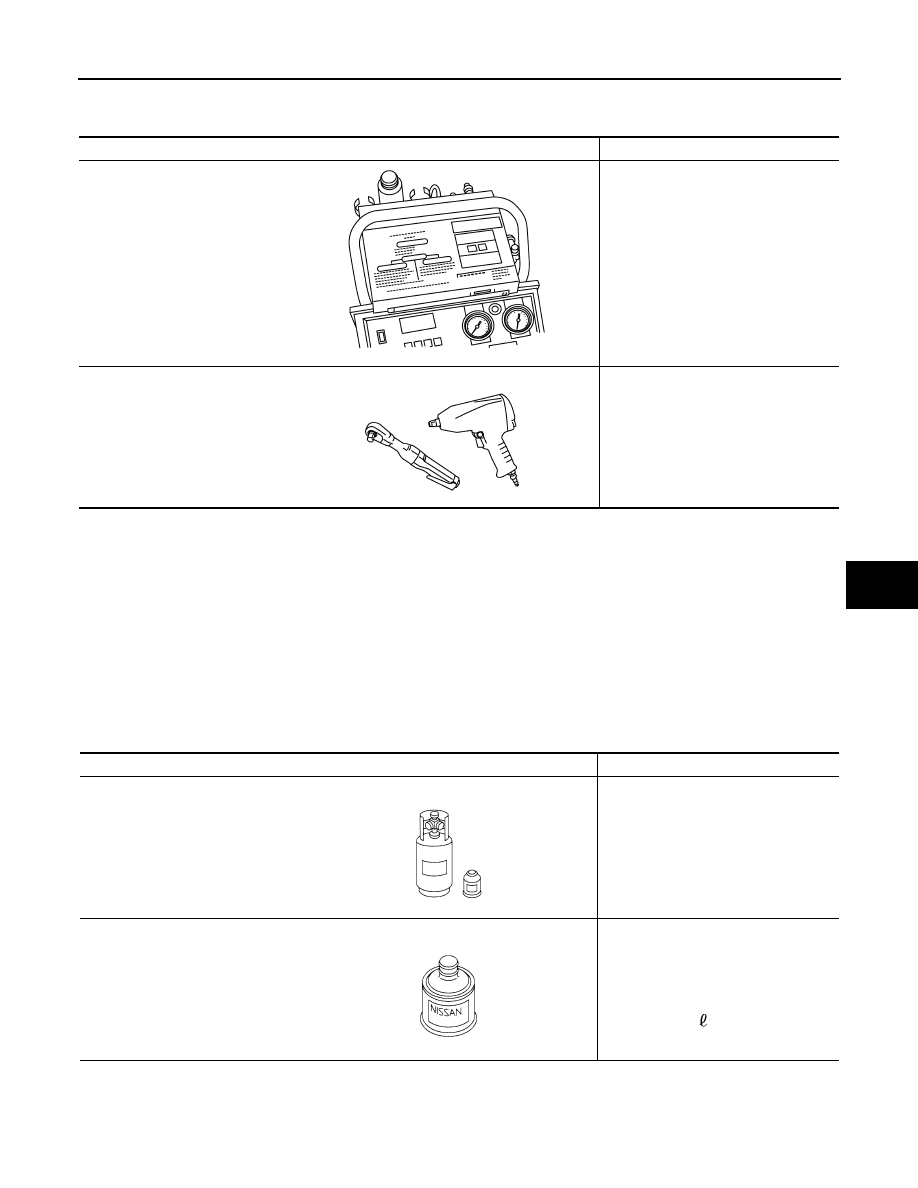

Tool name

Description

RJIA0196E

S-NT201

S-NT202

S-NT200

S-NT203

PREPARATION

HA-25

< PREPARATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

Commercial Service Tool

INFOID:0000000003545464

Sealant or/and Lubricant

INFOID:0000000003545465

HFC-134a (R-134a) Service Tool and Equipment

• Never mix HFC-134a (R-134a) refrigerant and/or its specified lubricant with CFC-12 (R-12) refrigerant and/

or its lubricant.

• Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/

lubricant.

• Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles

refrigerant and/or lubricant) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid
mixed use of the refrigerants/lubricant.

• Never use adapters that convert one size fitting to another: refrigerant/lubricant contamination occurs and

compressor malfunction may result.

Tool name

Description

Refrigerant identifier equipment

Checking for refrigerant purity and
system contamination

Power tool

For loosening bolts and nuts

RJIA0197E

PBIC0190E

Tool name

Description

HFC-134a (R-134a) refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size

• Large container 1/2

″

-16 ACME

NISSAN A/C System Oil Type S
(DH-PS)

Type: Polyalkylene glycol oil (PAG),
type S (DH-PS)
Application:
HFC-134a (R-134a) swash plate com-
pressors (NISSAN only)

Capacity: 40 m

 (1.4 US fl oz., 1.4

Imp fl oz.)

S-NT196

S-NT197

HA-26

< ON-VEHICLE MAINTENANCE >

REFRIGERANT

ON-VEHICLE MAINTENANCE

REFRIGERANT

Collection and Charge

INFOID:0000000003547911

SETTING OF SERVICE TOOLS AND EQUIPMENT

Discharging Refrigerant

Evacuating System and Charging Refrigerant

Procedure

1.

Shut-off valve

2.

A/C service valve

3.

Recovery/recycling recharging
equipment

JSIIA0238ZZ

1.

Shut-off valve

2.

A/C service valve

3.

Recovery/recycling recharging
equipment

4.

Refrigerant container (HFC-134a)

5.

Weight scale (J-39650)

6.

Vacuum pump (J-39649)

7.

Manifold gauge set (J-39183)

A.

Preferred (best) method

B.

Alternative method

C.

For charging

JSIIA0239ZZ
