ROOF RAIL

EXT-35

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

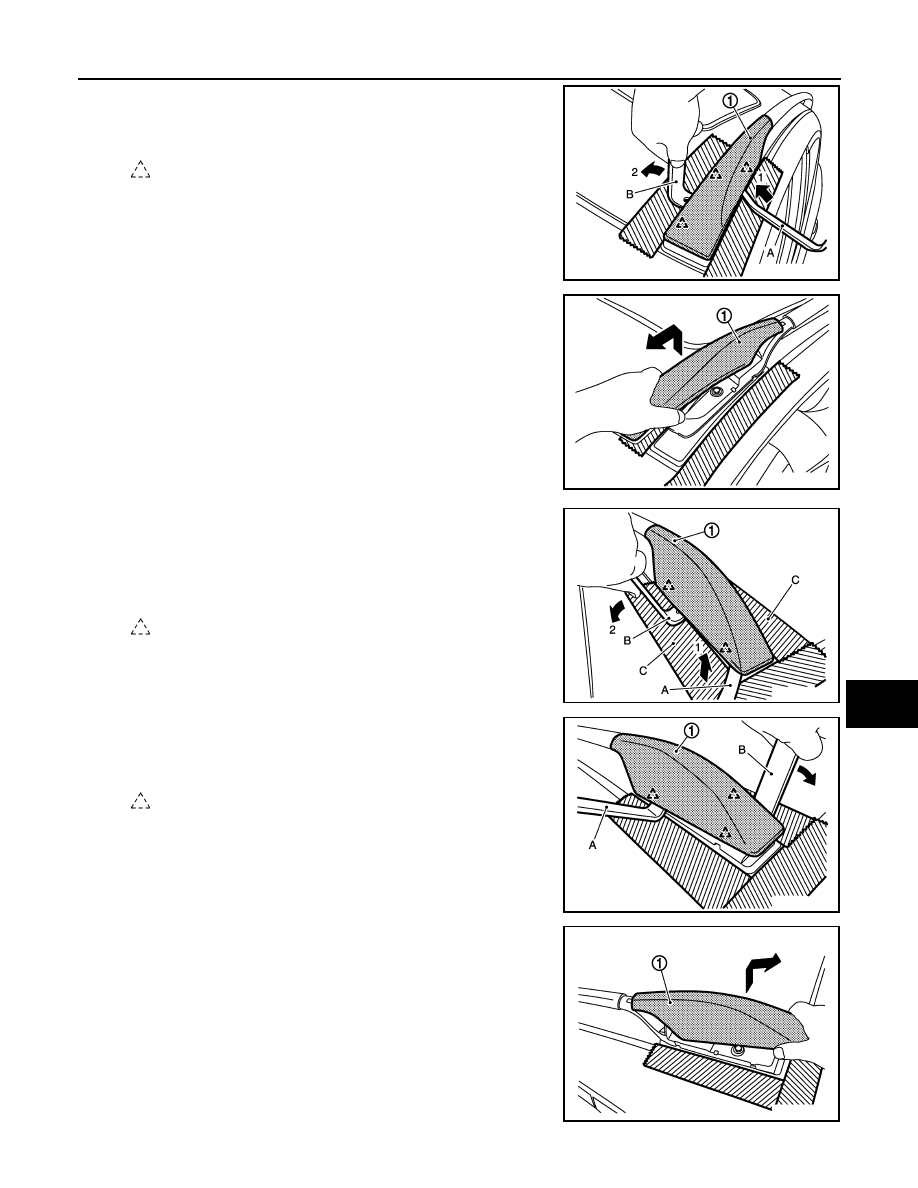

3.

Insert a remover tool (A) into outside space.

4.

Remove front roof rail cover (1) inside pawls with remover tool
(B).

5.

Pull front roof rail cover (1) toward the arrow direction.

6.

Insert a remover tool (A) into rear space.

7.

Remove rear roof rail cover (1) outside pawls with remover tool
(B).

CAUTION:

Apply protective tape (C) around the roof rail.

8.

Insert a remover tool (A) into outside space.

9.

Remove rear roof rail cover (1) inside pawls with remover tool
(B).

10. Pull rear roof rail cover (1) toward the arrow direction.

: Pawl

JMKIA2198ZZ

JMKIA2199ZZ

: Pawl

JMKIA2200ZZ

: Pawl

JMKIA2201ZZ

JMKIA2202ZZ

EXT-36

< ON-VEHICLE REPAIR >

ROOF RAIL

11. Remove roof rail assembly mounting bolts, and then remove roof rail assembly.

INSTALLATION

Install in the reverse order of removal.

ROOF SIDE MOLDING

EXT-37

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

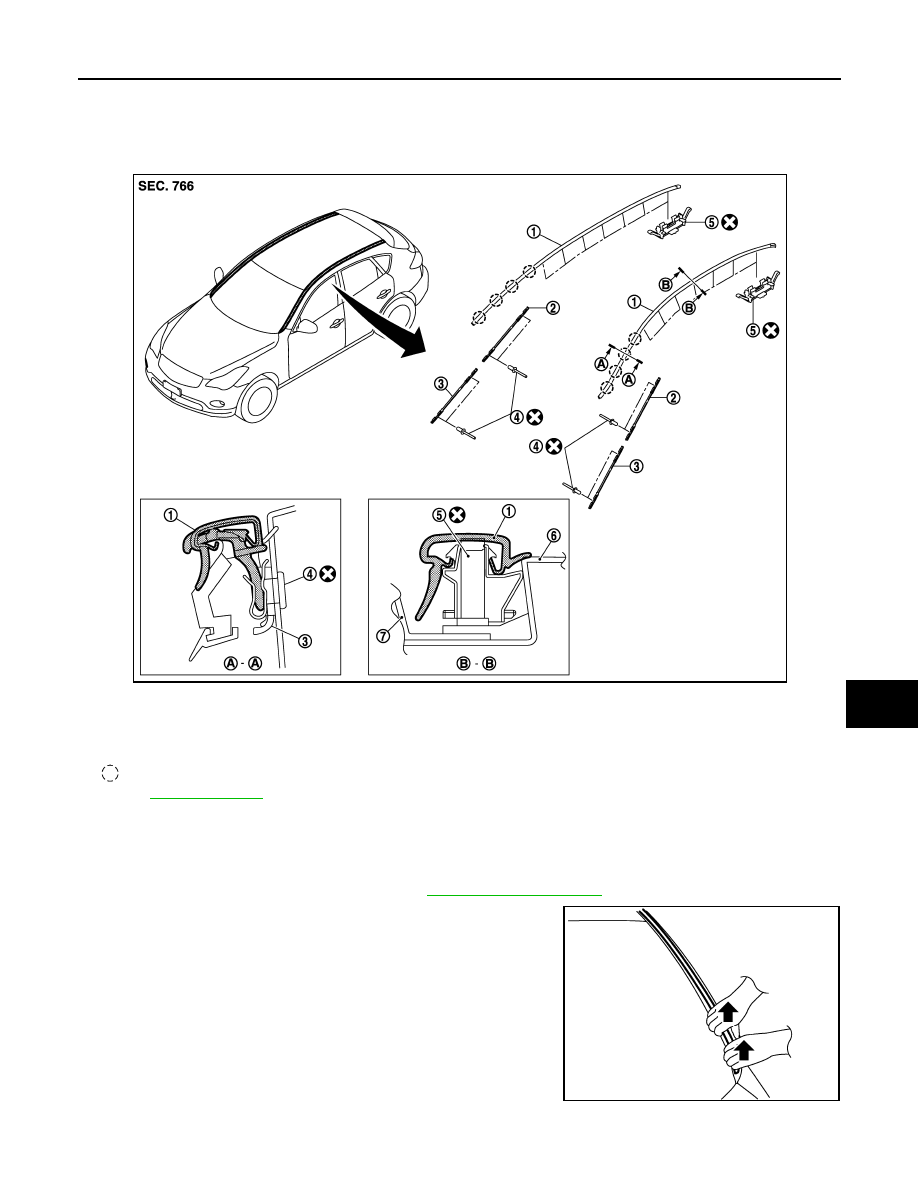

ROOF SIDE MOLDING

Exploded View

INFOID:0000000003671644

Removal and Installation

INFOID:0000000003671645

REMOVAL

1.

Remove front fender cover (LH/RH). Refer to

EXT-22, "Exploded View"

.

2.

Disengage clips while pinching molding from roof rear end to
front end.

INSTALLATION

1.

Roof side molding

2.

Molding fastener (upper)

3.

Molding fastener (lower)

4.

Rivet

5.

Roof side molding clip

6.

Body side panel

7.

Roof panel

: Clip

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2203ZZ

PIIB2749J

EXT-38

< ON-VEHICLE REPAIR >

ROOF SIDE MOLDING

Install from roof side molding rear end to front end in this order after temporarily holding.

REMOVAL AND INSTALLATION OF ROOF SIDE MOLDING CLIP

Removal

1.

Remove roof side molding.

2.

Heat adhesive tape interface using a dryer, and then peel roof side molding clips (body side) using long-
nose pliers.

CAUTION:

Be careful not to damage the body.

Installation

1.

Clean tape removed surface with a shop cloth soaked in white gasoline or IPA.

2.

Use two-part epoxy adhesive.

3.

Apply adhesive evenly to clip tape surface.

4.

Position applied parts to the proper location, and then sufficiently press-fit until the adhesive protrudes to
tape side.

5.

Tape clips after press fit, and temporarily hold it for specified time based on the following.

6.

Install from roof side molding rear end to front end in this order after temporarily holding.

CAUTION:

• Use double-faced adhesive tape after hardening for clips.
• Securely insert molding rear end cap onto roof rear end cutout (installation standard).
• When installing roof side molding of windshield portion, check that molding fastener is securely

inserted and then press in.

• Do not wash the vehicle with in 24 hours so as to keep adhesive.

Adhesive

: 3M-weld DP–100 or equivalent

Thickness

: Approximately 0.5 mm (0.020 in)

Press-fit limit

: 19.6 N (2.0 Kg - 4.41 lb)

×

 2 seconds

 5 to 10

°

C (41 to 50

°

F)

: 1 hour or more

11 to 23

°

C (52 to 73

°

F)

: 30 minutes or more

24

°

C or more (75

°

F or more)

: 15 minutes or more
