Infiniti EX35. Manual - part 837





FENDER PROTECTOR

EXT-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

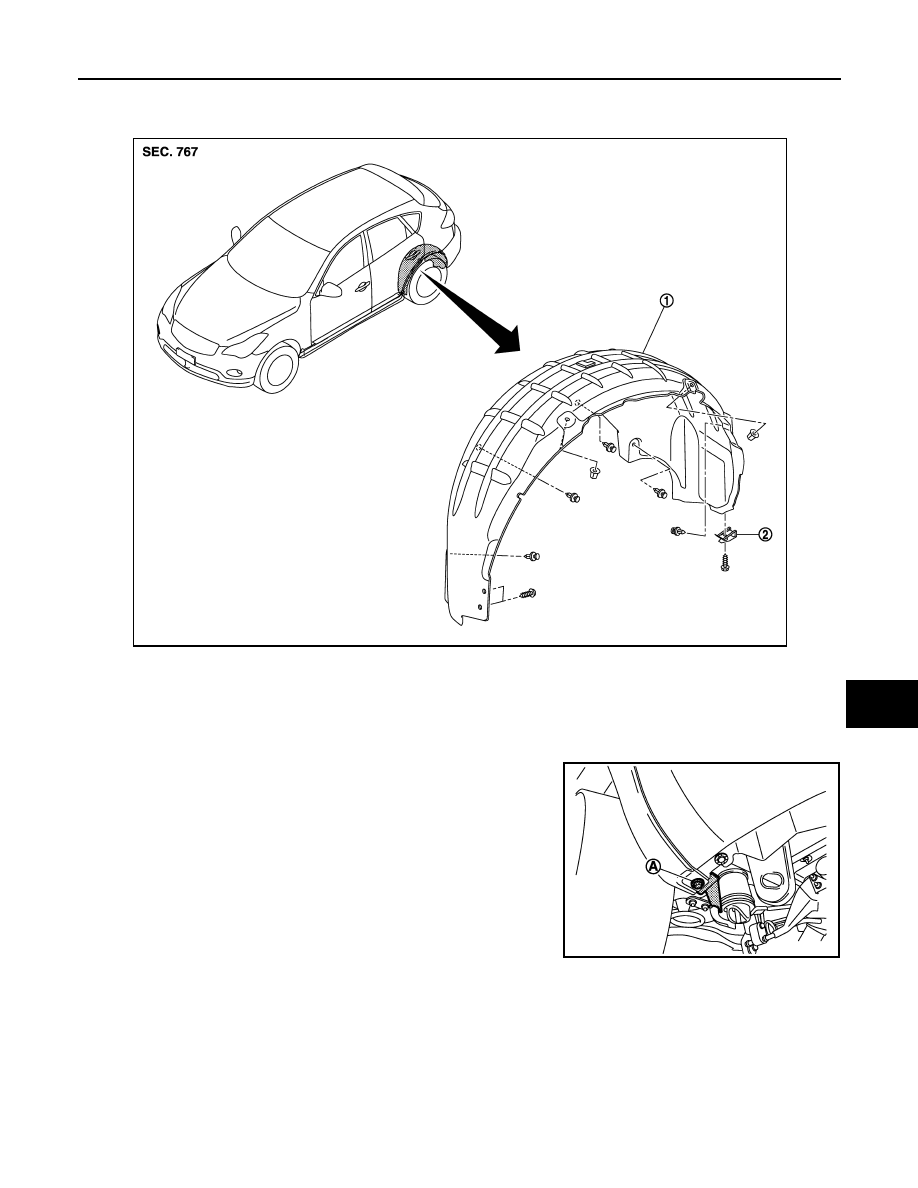

REAR WHEEL HOUSE PROTECTOR : Exploded View

INFOID:0000000003134293

REAR WHEEL HOUSE PROTECTOR : Removal and Installation

INFOID:0000000003134294

REMOVAL

1.

Remove bolt (A) of rear wheel house protector rear end.

1.

Rear wheel house protector

2.

Spring nut

JMKIA2165ZZ

JMKIA2167ZZ

EXT-28

< ON-VEHICLE REPAIR >

FENDER PROTECTOR

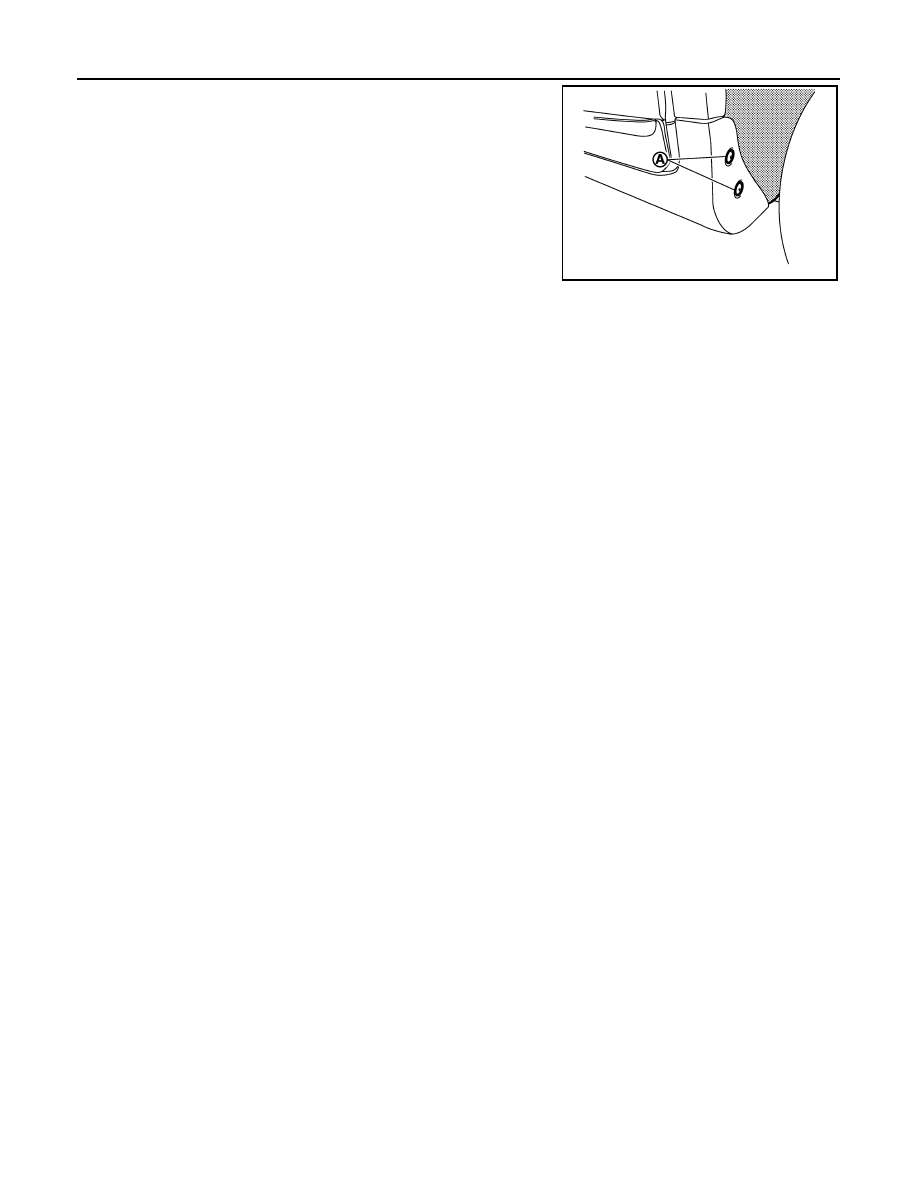

2.

Remove screws (A) of rear wheel house protector located on
center mud guard.

3.

Remove rear wheel house protector fixing clips and nuts and then remove rear wheel house protector.

INSTALLATION

Install in the reverse order of removal.

JMKIA2166ZZ

CENTER MUD GUARD

EXT-29

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

CENTER MUD GUARD

Exploded View

INFOID:0000000003134295

Removal and Installation

INFOID:0000000003134296

REMOVAL

1.

Remove wind deflector (1) fixing clip (A) and nuts (B), then
remove wind deflector.

1.

Grommet

2.

Center mud guard

3.

Wind deflector

JMKIA2168ZZ

JMKIA2193ZZ

EXT-30

< ON-VEHICLE REPAIR >

CENTER MUD GUARD

2.

Remove screw (A) of center mud guard (1) front end.

3.

Remove screws (A) of center mud guard (1) rear end.

4.

Remove bolt and screws of center mud guard underside.

5.

Fully open front door and rear door.

6.

Remove clips from back of center mud guard (1) using remover
tool (A).

CAUTION:

Apply protective tape (B) around the center mud guard.

7.

Remove center mud guard from body side.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing center mud guard, make sure that clips are securely fitted in panel holes on body, and
then press them in.

JMKIA2169ZZ

JMKIA2170ZZ

: Clip

JMKIA2194ZZ
