PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000003134281

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000003134282

Tool number
(Kent-Moore No.)
Tool name

Description

(J-39570)
Chassis ear

Location the noise

(J-43980)
NISSAN Squeak and Rattle
Kit

Repairing the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Locating the noise

Remover tool

Remove clips, pawls, metal clips

Power tool

SIIA0995E

PIIB7923J

PIIB1407E

EXT-12

< ON-VEHICLE REPAIR >

FRONT BUMPER

ON-VEHICLE REPAIR

FRONT BUMPER

Exploded View

INFOID:0000000003134283

JMKIA2137ZZ

FRONT BUMPER

EXT-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal and Installation

INFOID:0000000003134284

REMOVAL

CAUTION:

Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.

1.

Fully open hood assembly.

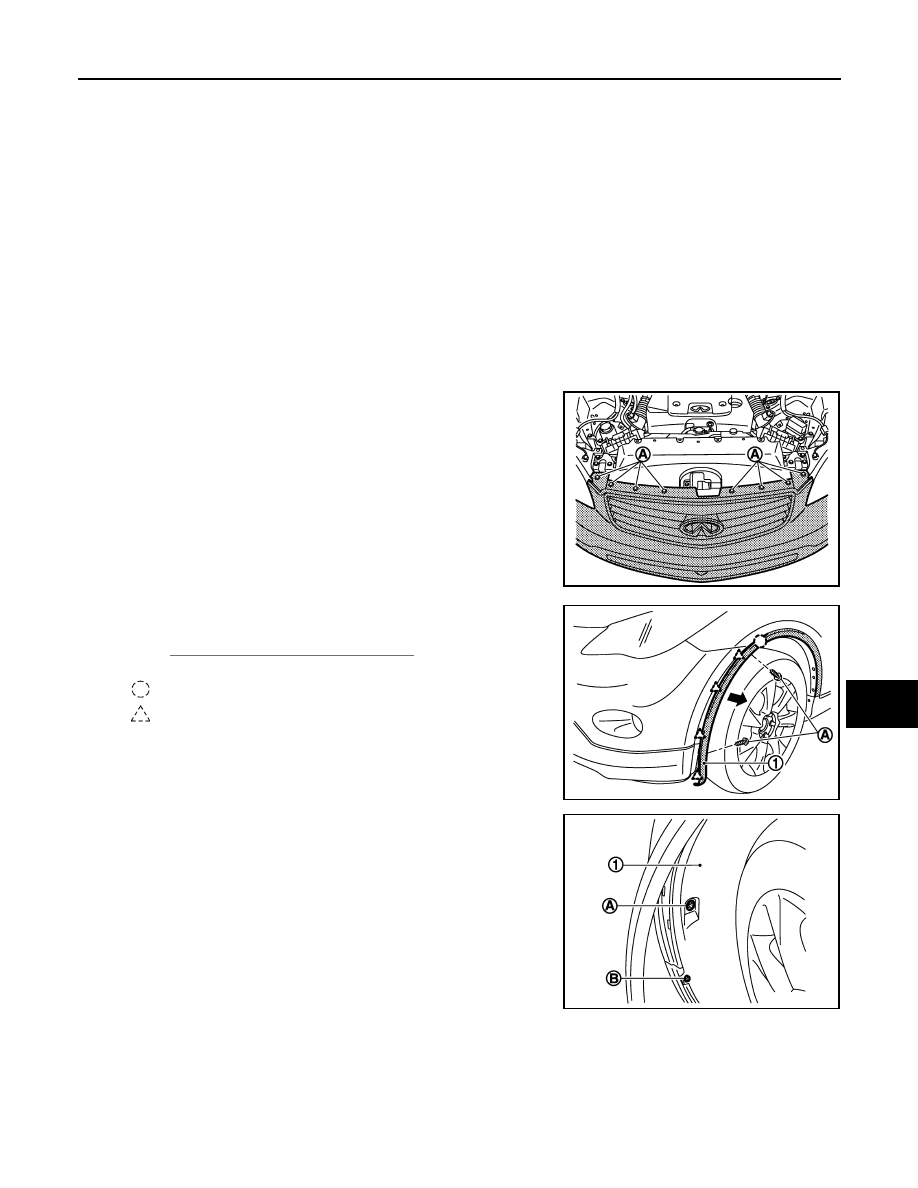

2.

Remove clips (A) of front bumper fascia upper side.

3.

Remove front fillet molding (1) fixing screws (A) (LH/RH).

4.

Remove front fillet molding fixing pawls and clip (LH/RH).
Refer to

EXT-32, "Removal and Installation"

.

5.

Remove fender protector (1) fixing clip (A) and grommet (B) (LH/
RH).

1.

Grommet

2.

Bumper side bracket RH

3.

Front grille

4.

Bumper side grommet RH

5.

Bumper fascia assembly

6.

Fog lamp finisher RH

7.

Sonar sensor RH

8.

Front fog lamp RH

9.

License plate bracket

10. Bumper bracket cover

11.

Bumper finisher RH

12. Bumper finisher LH (with ICC)

13. Front fog lamp LH

14.

Bumper finisher LH (without ICC)

15. Sonar sensor LH

16. Fog lamp finisher LH

17.

Bumper side grommet LH

18. Energy absorber

19. Bumper reinforcement

20.

Bumper side bracket LH

21. Grommet

JMKIA2138ZZ

: Clip

: Pawl

JMKIA2139ZZ

JMKIA2140ZZ

EXT-14

< ON-VEHICLE REPAIR >

FRONT BUMPER

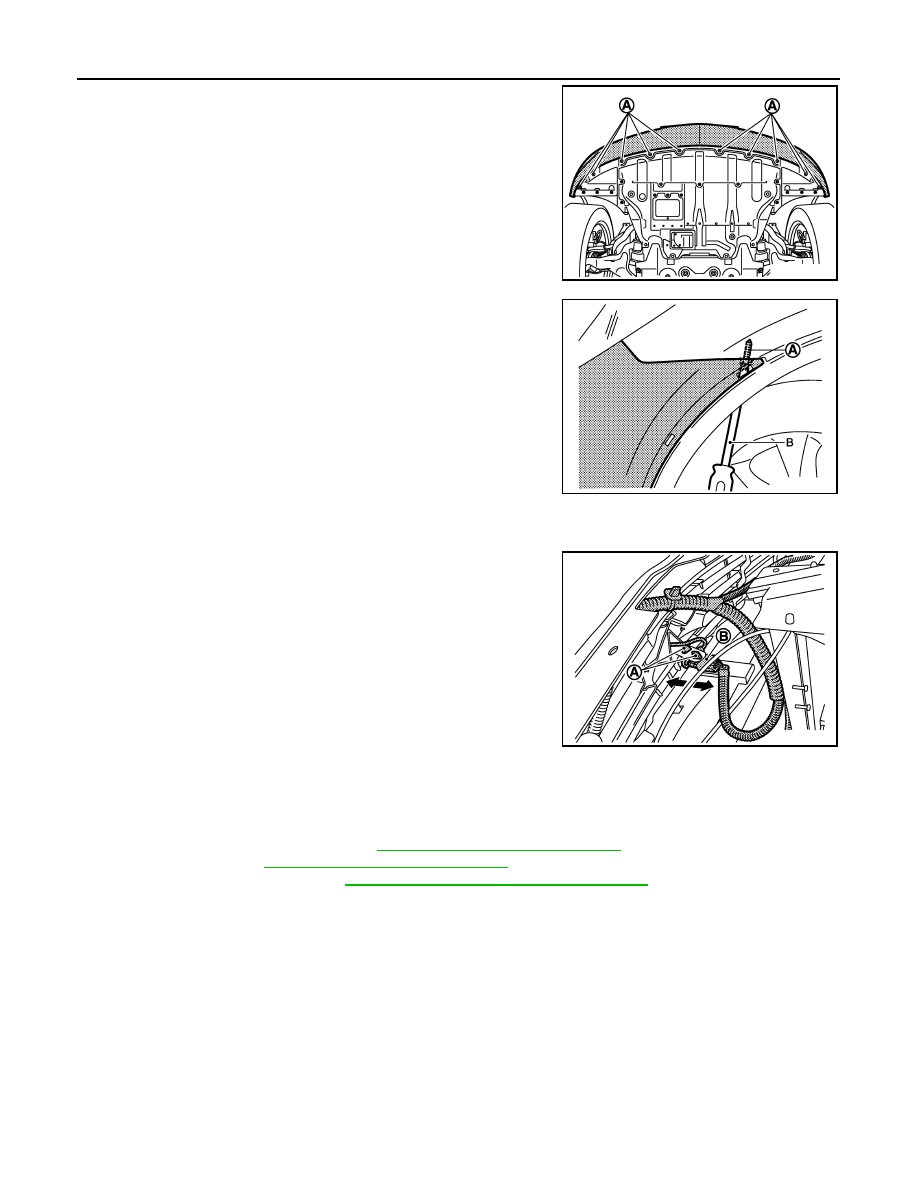

6.

Remove bolts (A) of fixing engine lower cover and front fender
protector.

7.

Remove bumper fascia assembly fixing screws (A) (LH/RH) with
screwdriver (B).

8.

Pull the bumper fascia side toward the vehicle side to disengage the fitting of bumper side bracket and
bumper fascia side.

9.

Remove front camera harness clips (A), and then disconnect
front camera harness connector (B).  (with FRONT CAMERA).

10. Remove bumper fascia assembly.

CAUTION:

When removing bumper fascia, 2 workers are required so as to prevent it from dropping.

11. Remove the following parts after removing bumper fascia.

• Hood seal assembly (front). Refer to

EXT-20, "Removal and Installation"

.

• Front grille. Refer to

EXT-20, "Removal and Installation"

.

• Sonar sensor (LH/RH). Refer to

SN-43, "FRONT : Removal and Installation"

.

• License plate bracket
• Front bumper side bracket (LH/RH)
• Front bumper finisher (LH/RH)
• Fog lamp finisher (LH/RH)

12. Remove bumper energy absorber.
13. Remove bumper reinforcement mounting nuts and bolts, and then remove bumper reinforcement with

power tool.

INSTALLATION

Install in the reverse order of removal.
NOTE:

JMKIA2142ZZ

JMKIA2141ZZ

JMKIA2156ZZ
