Infiniti EX35. Manual - part 829

EXL-360

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

REAR COMBINATION LAMP

REAR COMBINATION LAMP

Exploded View

INFOID:0000000003757010

Removal and Installation

INFOID:0000000003757011

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the luggage side finisher lower. Refer to

INT-34, "Exploded View"

.

2.

Remove the rear combination lamp finisher.

3.

Remove the rear combination lamp mounting bolts.

4.

Disconnect the rear combination lamp connector.

5.

Pull the rear combination lamp toward outside of the vehicle. Remove the rear combination lamp.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Seal packing cannot be reused.

1.

Seal packing

2.

Rear combination lamp

3.

Rear combination lamp finisher

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA0923ZZ

REAR TURN SIGNAL LAMP

EXL-361

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

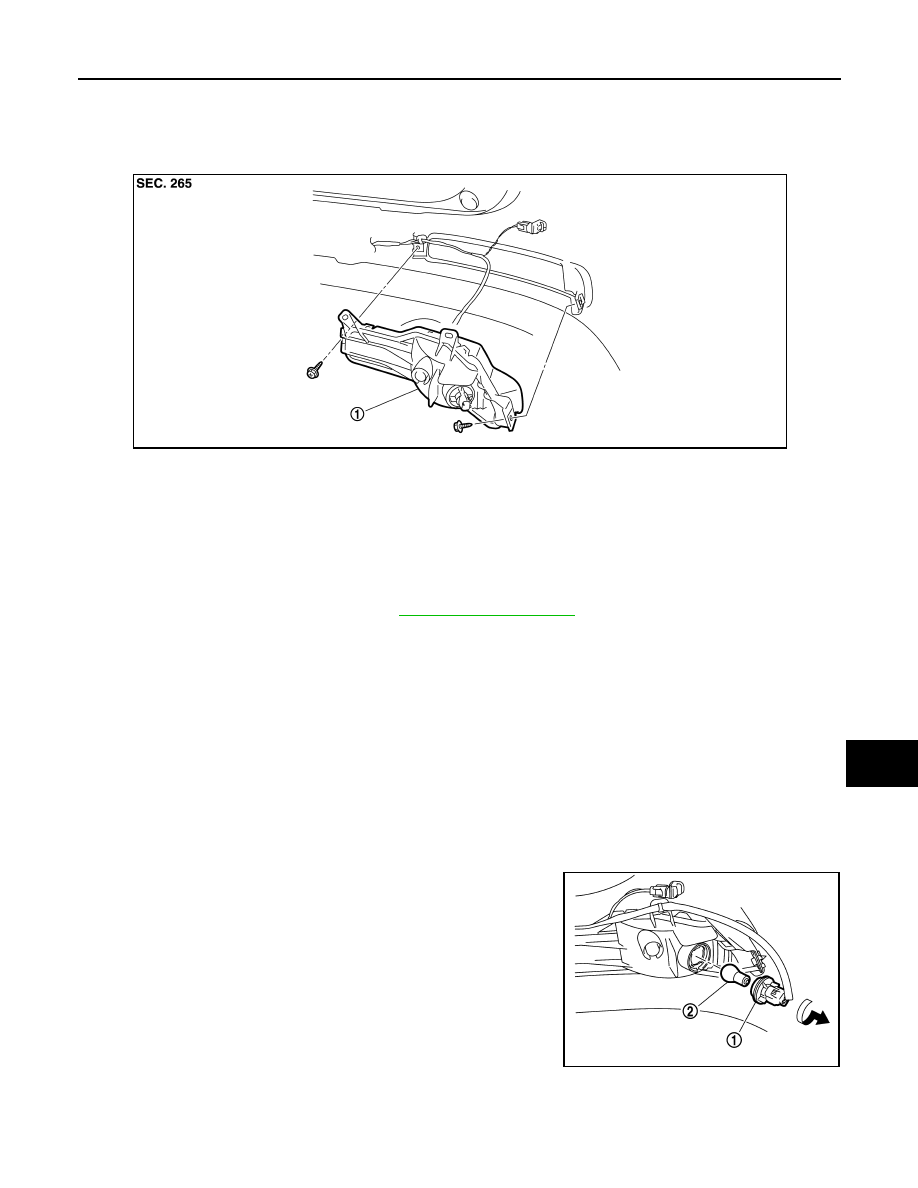

REAR TURN SIGNAL LAMP

Exploded View

INFOID:0000000003757013

Removal and Installation

INFOID:0000000003757014

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the rear bumper fascia. Refer to

EXT-16, "Exploded View"

.

2.

Remove the rear turn signal lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000003757015

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

REAR TURN SIGNAL LAMP BULB

1.

Turn the bulb socket (1) counterclockwise and unlock it.

2.

Remove the bulb (2) from the socket.

1.

Rear turn signal lamp

JPLIA0924ZZ

JPLIA0925ZZ

EXL-362

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

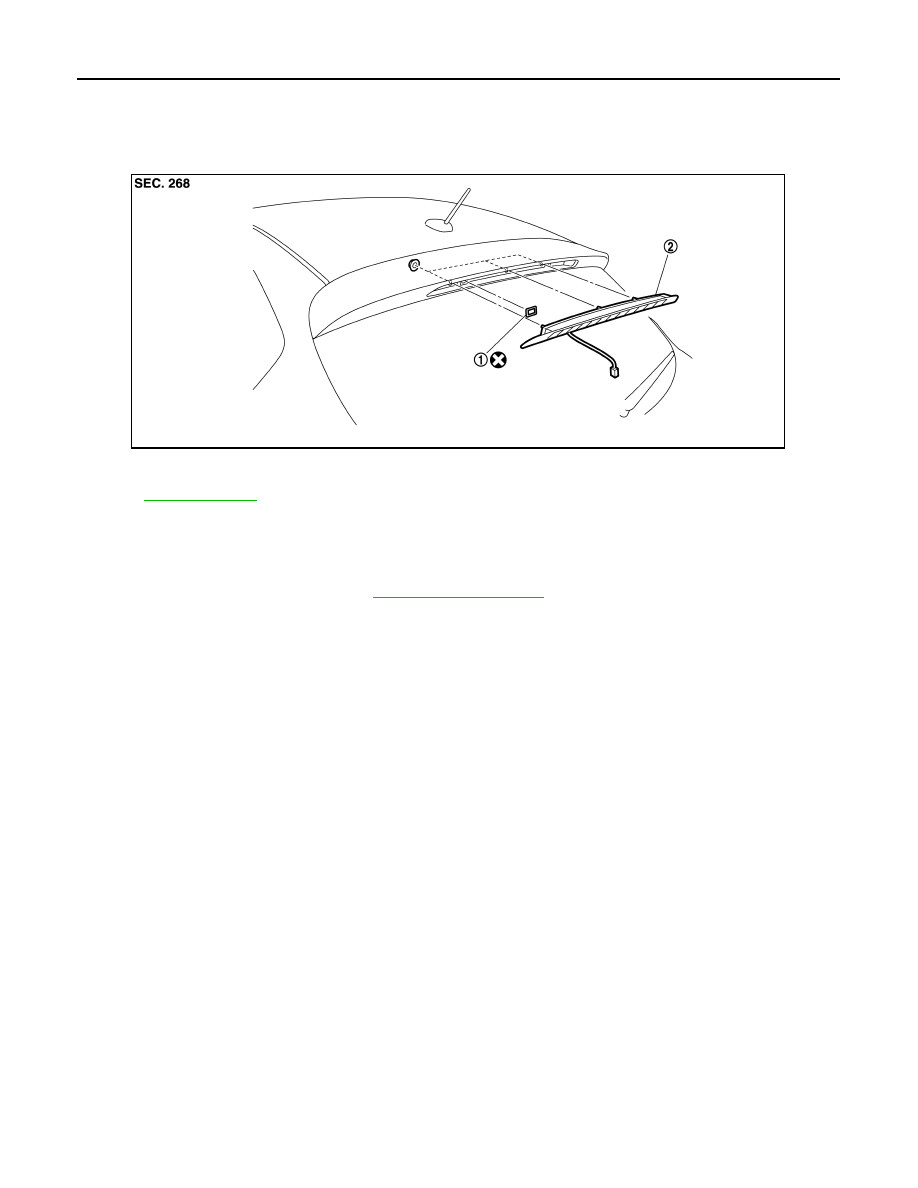

HIGH-MOUNTED STOP LAMP

HIGH-MOUNTED STOP LAMP

Exploded View

INFOID:0000000003757016

Removal and Installation

INFOID:0000000003757017

REMOVAL

1.

Remove the back door plate. Refer to

INT-38, "Exploded View"

.

2.

Remove the high-mounted stop lamp mounting nuts.

3.

Disconnect the high-mounted stop lamp connector. And then remove the rear washer tube.

4.

Pull the high-mounted stop lamp toward rear of the vehicle.

5.

Remove the high-mounted stop lamp.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Seal packing cannot be reused.

1.

Seal packing

2.

High-mounted stop lamp

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA0926ZZ

BACK-UP LAMP

EXL-363

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

BACK-UP LAMP

Exploded View

INFOID:0000000003757020

Removal and Installation

INFOID:0000000003757021

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the back door finisher inner. Refer to

INT-38, "Exploded View"

.

2.

Remove the back-up lamp mounting nuts.

3.

Disconnect the back-up lamp connector. And then remove the back-up lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000003757022

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

BACK-UP LAMP BULB

1.

Remove the back-up lamp. Refer to

EXL-363, "Exploded View"

.

2.

Turn the bulb socket (1) counterclockwise and unlock it.

3.

Remove the bulb (2) from the socket.

1.

Seal packing

2.

Back-up lamp

JPLIA0927ZZ

JPLIA0928ZZ
