Infiniti EX35. Manual - part 794





EXL-220

< FUNCTION DIAGNOSIS >

[HALOGEN TYPE]

DAYTIME RUNNING LIGHT SYSTEM

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-8, "System Diagram"

.

ECM

Transmits the engine condition signal to BCM with CAN communication.

Unified meter and A/C amp.

Transmits the parking brake switch signal to BCM with CAN communication.

Part

Description

FRONT FOG LAMP SYSTEM

EXL-221

< FUNCTION DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FRONT FOG LAMP SYSTEM

System Diagram

INFOID:0000000003756962

System Description

INFOID:0000000003756963

OUTLINE

Front fog lamp is controlled by combination switch reading function and front fog lamp control function of BCM,
and relay control function of IPDM E/R.
NOTE:
For Canada models, the front fog lamp is turned ON as the daytime running light. Refer to

EXL-227, "System

Diagram"

 for the detail.

FRONT FOG LAMP OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM transmits the front fog light request signal to IPDM E/R and the combination meter (through the unified

meter and A/C amp.) with CAN communication according to the front fog lamp ON condition.

Front fog lamp ON condition

- Front fog lamp switch ON with the headlamp ON (except for the high beam ON)
• IPDM E/R turns the integrated front fog lamp relay ON, and turns the front fog lamp ON according to the

front fog light request signal.

• Combination meter turns the front fog lamp indicator lamp ON according to the front fog light request signal.

JPLIA0158GB

EXL-222

< FUNCTION DIAGNOSIS >

[HALOGEN TYPE]

FRONT FOG LAMP SYSTEM

Component Parts Location

INFOID:0000000003756964

Component Description

INFOID:0000000003756965

1.

Front fog lamp

2.

Combination switch

3.

BCM

4.

IPDM E/R

5.

Front fog lamp indicator lamp

A.

Dash side lower (Passenger side)

B.

Engine room dash panel (RH)

C.

On the combination meter

JPLIA0945ZZ

Part

Description

BCM

• Judges each switch condition by the combination switch reading function.
• Judges the front fog lamp ON/OFF status according to the vehicle condition. Re-

quests the front fog lamp relay ON to IPDM E/R (with CAN communication).

IPDM E/R

Controls the integrated relay and supplies voltage to the load according to the request
from BCM (with CAN communication).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-8, "System Diagram"

.

Combination meter
(Front fog lamp indicator lamp)

Turns the front fog lamp indicator lamp ON according to the request from BCM [with
CAN communication (through the unified meter and A/C amp.)].

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

EXL-223

< FUNCTION DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

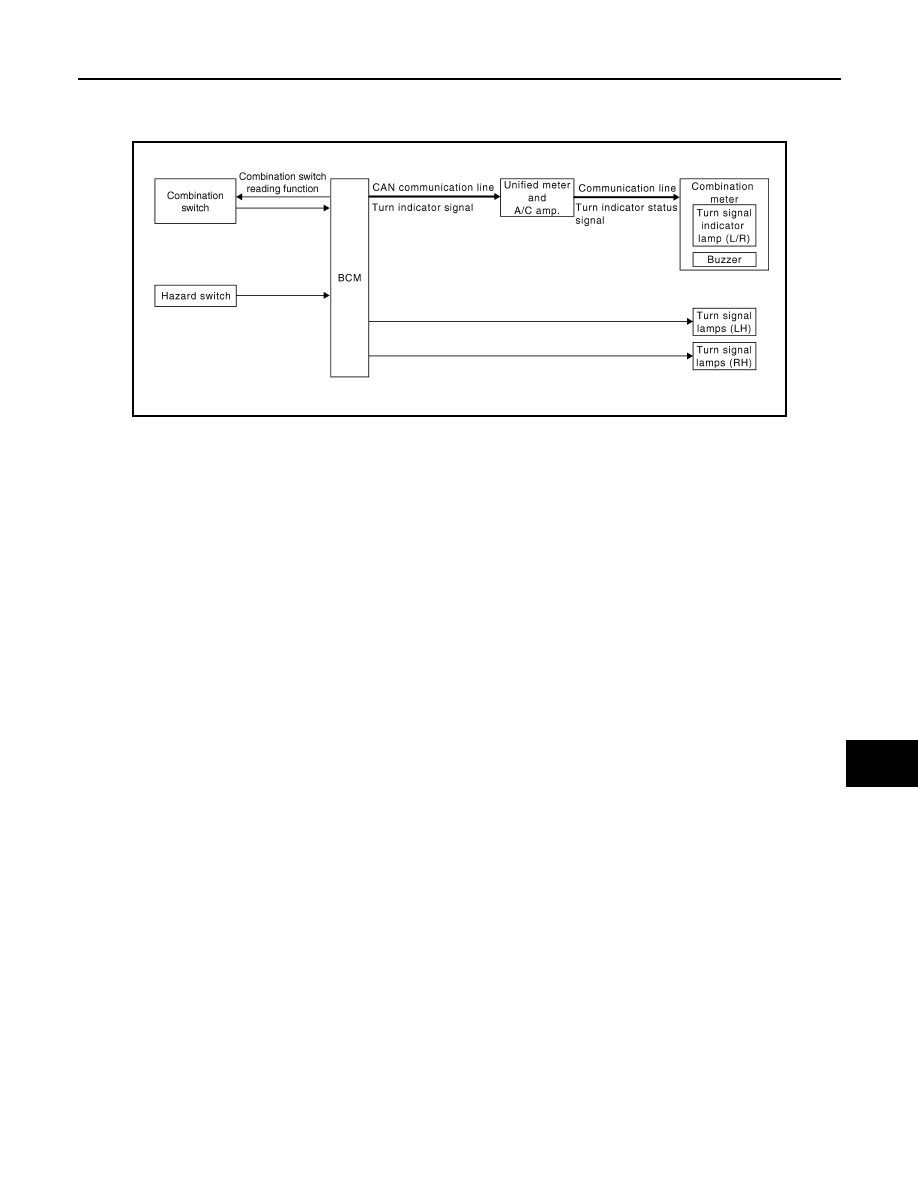

System Diagram

INFOID:0000000003756966

System Description

INFOID:0000000003756967

OUTLINE

Turn signal and the hazard warning lamp is controlled by combination switch reading function and the flasher
control function of BCM.

TURN SIGNAL LAMP OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM supplies voltage to the right (left) turn signal lamp circuit when the ignition switch is turned ON and the

turn signal switch is in the right (left) position. BCM blinks the turn signal lamp.

HAZARD WARNING LAMP OPERATION

BCM supplies voltage to both turn signal lamp circuit when the hazard switch is turned ON. BCM blinks the
hazard warning lamp.

TURN SIGNAL INDICATOR LAMP AND TURN SIGNAL SOUND OPERATION

• BCM transmits the turn signal indicator lamp signal to the combination meter (through the unified meter and

A/C amp.) with CAN communication while the turn signal lamp and the hazard warning lamp operating.

• Combination meter outputs the turn signal sound with the integrated buzzer while blinking the turn signal

indicator lamp according to the turn signal indicator lamp signal.

HIGH FLASHER OPERATION (FAIL-SAFE)

• BCM detects the turn signal lamp circuit status from the current value.
• BCM increases the turn signal lamp blinking speed if the bulb or harness open is detected with the turn sig-

nal lamp operating.
NOTE:
The blinking speed is normal while operating the hazard warning lamp.

JPLIA0003GB
