Infiniti EX35. Manual - part 781





EXL-168

< ECU DIAGNOSIS >

[XENON TYPE]

AFS CONTROL UNIT

AFS CONTROL UNIT

Reference Value

INFOID:0000000003135374

VALUES ON THE DIAGNOSIS TOOL

CONSULT-III MONITOR ITEM

TERMINAL LAYOUT

PHYSICAL VALUES

Monitor Item

Condition

Value/Status

STR ANGLE SIG

Steering

Straight-forward

Approx. 0

°

Steering

Approx. -900

°

 - +900

°

VHCL SPD

Driving at 40 km/h (25 MPH)

40 km/h

SLCT LVR POSI

Selector lever operation

P - 1

HEAD LAMP

Light switch

2ND

On

Other than 2ND

Off

AFS SW

AFS OFF switch

ON

On

OFF

Off

HI SEN OTP RR

Vehicle rear height

Unloaded vehicle condition

Approx. 2.5 V

Low (Leveling operation
downward edge)

Approx. 1.6 V

LEV ACTR VLTG

Headlamp leveling

Unloaded vehicle condition

Approx. 70.0%

Low (Leveling operation
downward edge)

Approx. 35.4%

(With 17-inch wheel)

Approx. 32.1%

(With 18-inch wheel)

SWVL SEN RH

Right headlamp swivel activation

Standard position

Approx. 0

°

Activation

Positive degree (+

°

)

SWVL SEN LH

Left headlamp swivel activation

Standard position

Approx. 0

°

Activation

Positive degree (+

°

)

SWVL ANGLE RH

Right headlamp swivel activation

Standard position

Approx. 0

°

Activation

Positive degree (+

°

)

SWVL ANGLE LH

Left headlamp swivel activation

Standard position

Approx. 0

°

Activation

Positive degree (+

°

)

JPLIA0176ZZ

AFS CONTROL UNIT

EXL-169

< ECU DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

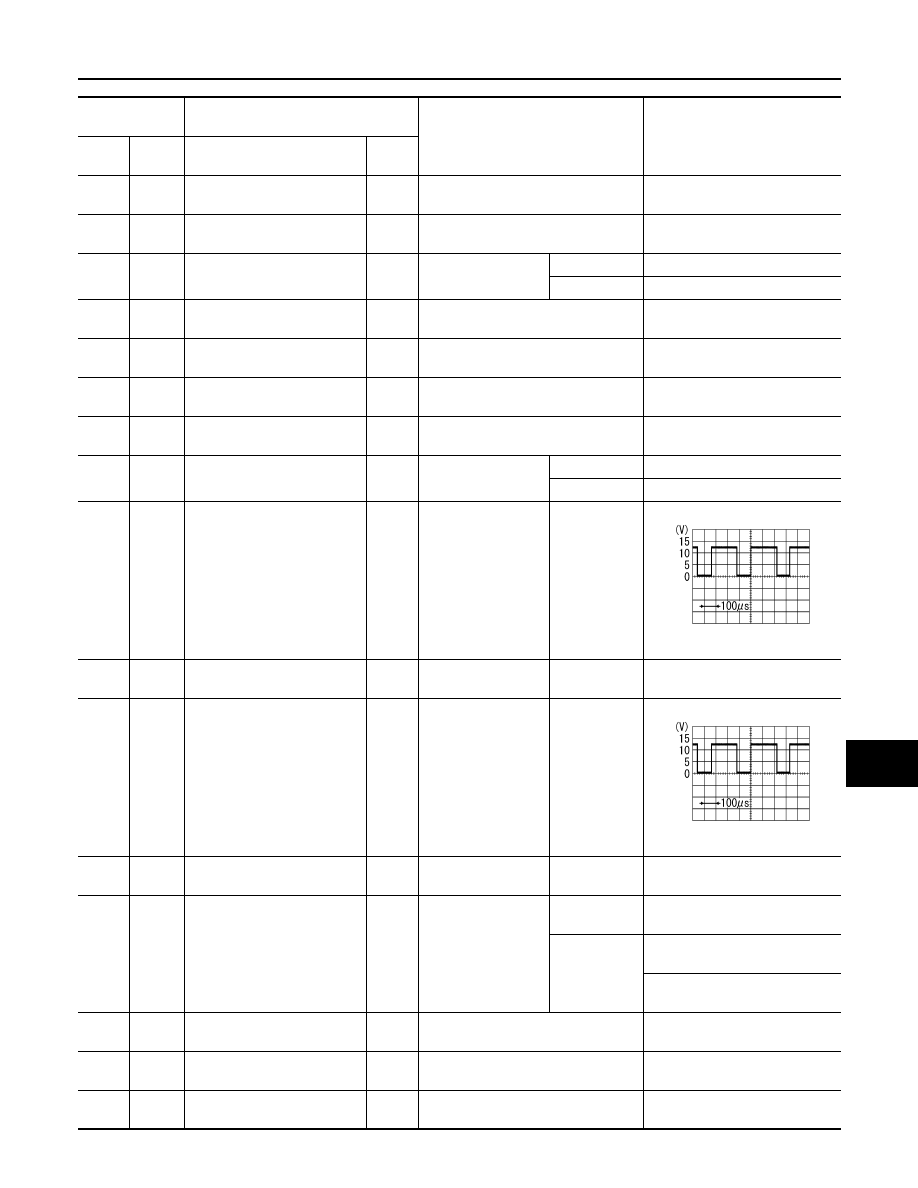

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

output

1

(Y)

Ground

Ignition power supply

Input

The ignition switch ON

Battery voltage

2

(LG)

Ground

Right swivel position sensor
ground

Input

The ignition switch ON

0 V

3

(GR)

Ground

AFS switch signal

Input

AFS OFF switch

ON

0 V

OFF

Battery voltage

4

(Y)

Ground

Right swivel position sensor
power supply

Output

The ignition switch ON

5 V

6

(W)

Ground

Height sensor power supply

Output

The ignition switch ON

5 V

7

(P)

Ground

CAN-L

Input/

output

8

(B)

Ground

Height sensor ground

Input

The ignition switch ON

0 V

9

(GR)

Ground

Right swivel position sensor
signal

Output

Right headlamp
swivel angle

0

°

0.7 V

15

°

2.8 V

11

(R)

Ground

Right swivel motor 1-phase (

)

Output

Right headlamp
swivel

Activation

Reference waveform

8 - 12 V

13

(B)

Ground

Right swivel motor 2-phase (

)

Output

Right headlamp
swivel

Stopped

9.5 - 11.5 V

15

(G)

Ground

Left swivel motor 1-phase (+)

Output

Left headlamp swivel

Activation

Reference waveform

8 - 12 V

17

(W)

Ground

Left swivel motor 2-phase (+)

Output

Left headlamp swivel

Stopped

9.5 - 11.5 V

19

(SB)

Ground

Right levelizer signal

Output

Right headlamp lev-
eling

Unloaded ve-
hicle condition

8.8 V

Leveling oper-
ation down-
ward edge

4.4 V

(With 17-inch wheel)

4.0 V

(With 18-inch wheel)

24

(V)

Ground

Left swivel position sensor
power supply

Output

The ignition switch ON

5 V

25

(B)

Ground

Ground

The ignition switch ON

0 V

27

(BR)

Ground

Left swivel position sensor
ground

Input

The ignition switch ON

0 V

SKIB2408J

SKIB2408J

EXL-170

< ECU DIAGNOSIS >

[XENON TYPE]

AFS CONTROL UNIT

28

(SB)

Ground

Height sensor signal

Output

Vehicle rear height

Unloaded ve-
hicle condition

2.5 V

Low (Leveling
operation
downward
edge)

1.6 V

29

(O)

Ground

Left swivel position sensor sig-
nal

Output

Left headlamp swivel
angle

0

°

0.7 V

17

°

3.0 V

30

(L)

Ground

CAN-H

Input/

output

32

(G)

Ground

Right swivel motor 2-phase (+)

Output

Right headlamp
swivel

Activation

Reference waveform

8 - 12 V

34

(W)

Ground

Right swivel motor 1-phase (+)

Output

Right headlamp
swivel

Stopped

9.5 - 11.5 V

36

(R)

Ground

Left swivel motor 2-phase (-)

Output

Left headlamp swivel

Activation

Reference waveform

8 - 12 V

38

(B)

Ground

Left swivel motor 1-phase (-)

Output

Left headlamp swivel

Stopped

9.5 - 11.5 V

40

(L)

Ground

Left levelizer signal

Output

Right headlamp lev-
eling

Unloaded ve-
hicle condition

8.8 V

Leveling oper-
ation down-
ward edge

4.4 V

(With 17-inch wheel)

4.0 V

(With 18-inch wheel)

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

output

SKIB2408J

SKIB2408J

AFS CONTROL UNIT

EXL-171

< ECU DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Wiring Diagram - ACTIVE AFS -

INFOID:0000000003135375

JCLWM1248GB
