CYLINDER BLOCK

EM-131

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Never rotate crankshaft.

• Remove lower cylinder block and bearings, and using the scale on

the plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in the “Method by Calculation”.

MAIN BEARING CRUSH HEIGHT

• When lower cylinder block is removed after being tightened to the

specified torque with main bearings (1) installed, the tip end of
bearing must protrude. Refer to

EM-115, "Disassembly and

Assembly"

 for the tightening procedure.

• If the standard is not met, replace main bearings.

CONNECTING ROD BEARING CRUSH HEIGHT

• When connecting rod bearing cap is removed after being tightened

to the specified torque with connecting rod bearings (1) installed,
the tip end of bearing must protrude. Refer to

EM-115, "Disassem-

bly and Assembly"

 for the tightening procedure.

• If the standard is not met, replace connecting rod bearings.

LOWER CYLINDER BLOCK BOLT OUTER DIAMETER

• Measure the outer diameters (c), (d) at two positions as shown in

the figure.

• If reduction appears in (a) range, regard it (c).

• If it exceeds the limit (large difference in dimensions), replace

lower cylinder block bolt with new one.

CONNECTING ROD BOLT OUTER DIAMETER

JPBIA0231ZZ

A

: Crush height

Standard

: There must be crush height.

JPBIA0233ZZ

A

: Crush height

Standard

: There must be crush height.

JPBIA0233ZZ

a

: 20 mm (0.79 in)

b

: 30 mm (1.18 in)

e

: 10 mm (0.39 in)

Limit [(d) – (c)]

: 0.11 mm (0.0043 in)

JPBIA0234ZZ

EM-132

< DISASSEMBLY AND ASSEMBLY >

CYLINDER BLOCK

1.

Measure the outer diameters [(a), (b) and (c)] at the position
shown in the figure.

2.

Obtain a mean value (d) of (a) and (b).

3.

Subtract (c) from (d).

4.

If it exceeds the limit (large difference in dimensions), replace the bolt with new one.

DRIVE PLATE

• Check drive plate and signal plate for deformation or damage.

CAUTION:

• Never disassemble drive plate.
• Never place drive plate with signal plate facing down.
• When handling signal plate, take care not to damage or

scratch it.

• Handle signal plate in a manner that prevents it from becom-

ing magnetized.

• If anything is found, replace drive plate.

OIL JET

• Check nozzle for deformation and damage.
• Blow compressed air from nozzle, and check for clogs.
• If it is not satisfied, clean or replace oil jet.

OIL JET RELIEF VALVE

• Using a clean plastic stick, press check valve in oil jet relief valve.

Check that valve moves smoothly with proper reaction force.

• If it is not satisfied, replace oil jet relief valve.

a

: Value at the end of the smaller diameter of the bolt

b

: Value at the end of the smaller diameter of the bolt [opposite side of (a)]

c

: Value of the smallest diameter of the smaller of the bolt

Limit [(d) – (c)]

: 0.09 mm (0.0035 in)

JPBIA0262ZZ

JPBIA0192ZZ

EMU0468D

HOW TO SELECT PISTON AND BEARING

EM-133

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

HOW TO SELECT PISTON AND BEARING

Description

INFOID:0000000003139150

 *: For the service parts, the grade for fitting cannot be selected between piston pin and connecting rod. (Only “0” grade is available.) The
information at the shipment from the plant is described as a reference.

• The identification grade stamped on each part is the grade for the dimension measured in new condition.

This grade cannot apply to reused parts.

• For reused or repaired parts, measure the dimension accurately. Determine the grade by comparing the

measurement with the values of each selection table.

• For details of the measurement method of each part, the reuse standards and the selection method of the

selective fitting parts, refer to the text.

Piston

INFOID:0000000003139151

WHEN NEW CYLINDER BLOCK IS USED

Check the cylinder bore grade (“1”, “2” or “3”) on rear side of cylinder
block, and select piston of the same grade.

NOTE:
Piston is available with piston pin as a set for the service part. (Only “0” grade piston pin is available.)

WHEN NEW CYLINDER BLOCK IS REUSED

1.

Measure the cylinder bore inner diameter. Refer to

EM-144, "Cylinder Block"

.

Selection points

Selection parts

Selection items

Selection methods

Between cylinder block and
crankshaft

Main bearing

Main bearing grade
(bearing thickness)

Determined by match of cylin-
der block bearing housing
grade (inner diameter of hous-
ing) and crankshaft journal
grade (outer diameter of jour-
nal)

Between crankshaft and con-
necting rod

Connecting rod bearing

Connecting rod bearing grade
(bearing thickness)

Combining service grades for
connecting rod big end diame-
ter and crankshaft pin outer di-
ameter determine connecting
rod bearing selection.

Between cylinder block and pis-
ton

Piston and piston pin assembly
(Piston is available together
with piston pin as assembly.)

Piston grade
(piston skirt diameter)

Piston grade = cylinder bore
grade (inner diameter of bore)

Between piston and connecting
rod*

—

—

—

A

: Bearing housing grade No. 1

B

: Bearing housing grade No. 2

C

: Bearing housing grade No. 3

D

: Bearing housing grade No. 4

E

: Cylinder bore grade No. 1

F

: Cylinder bore grade No. 2

G

: Cylinder bore grade No. 3

H

: Cylinder bore grade No. 4

I

: Cylinder bore grade No. 5

J

: Cylinder bore grade No. 6

K

: Identification

: Engine front

JPBIA0268ZZ

EM-134

< DISASSEMBLY AND ASSEMBLY >

HOW TO SELECT PISTON AND BEARING

2.

Determine the bore grade by comparing the measurement with
the values under the cylinder bore inner diameter of the “PIS-
TON SELECTION TABLE”.

3.

Select piston of the same grade.

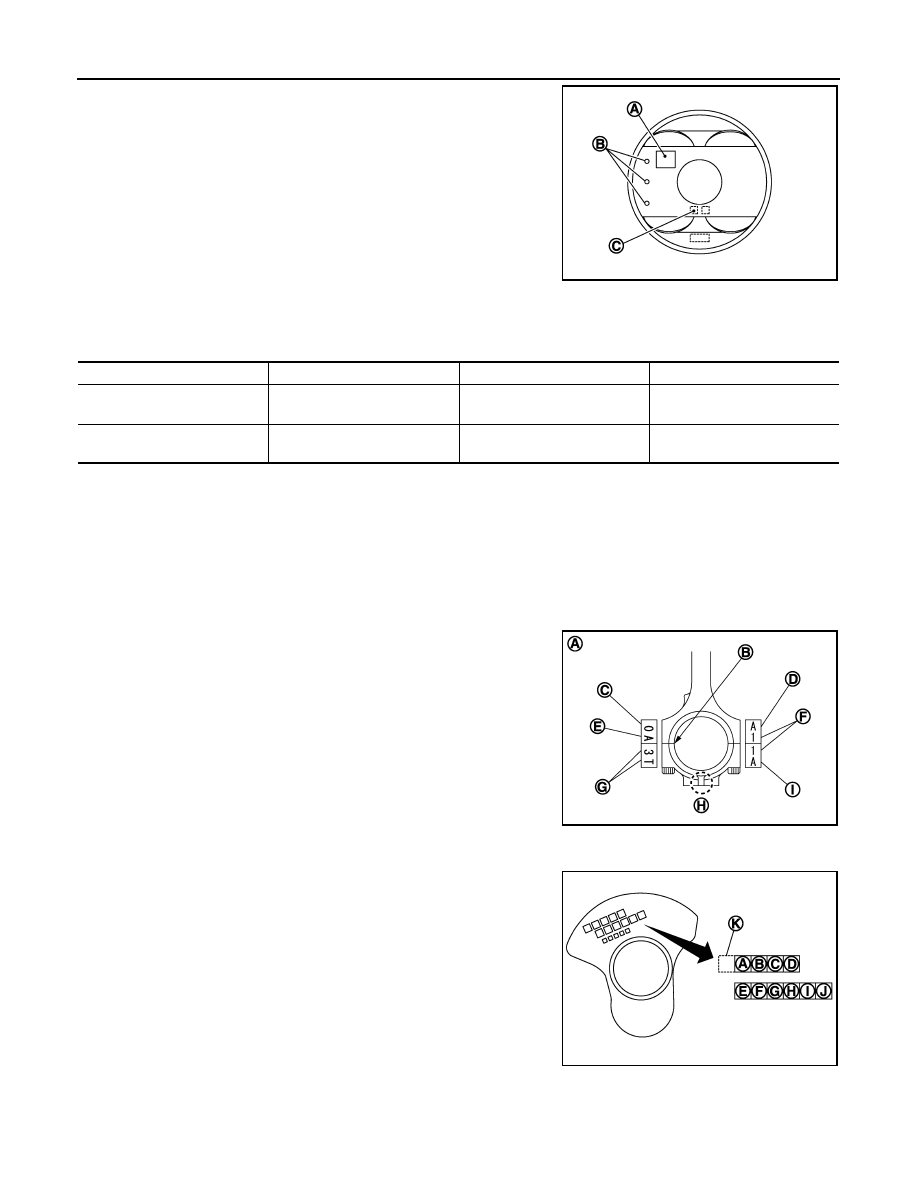

PISTON SELECTION TABLE

Unit: mm (in)

NOTE:
• Piston is available together with piston pin as assembly.
• Piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts, no pis-

ton pin grades can be selected. (Only “0” grade is available.)

• No second grade mark is available on piston.

Connecting Rod Bearing

INFOID:0000000003139152

WHEN NEW CONNECTING ROD AND CRANKSHAFT ARE USED

1.

Apply connecting rod big end diameter grade stamped (D) on
connecting rod side face to the row in the “CONNECTING ROD
BEARING SELECTION TABLE”.

2.

Apply crankshaft pin journal diameter grade stamped on crank-
shaft front side to the column in the “CONNECTING ROD
BEARING SELECTION TABLE”

A

: Piston grade number

B

: Front mark

C

: Piston pin grade number

JPBIA0267ZZ

Grade

1

2

3

Cylinder bore inner diameter

95.500 - 95.510

(3.7598 - 3.7602)

95.510 - 95.520

(3.7602 - 3.7606)

95.520 - 95.530

(3.7606 - 3.7610)

Piston skirt diameter

95.480 - 95.490

(3.7590 - 3.7594)

95.490 - 95.500

(3.7594 - 3.7598)

95.500 - 95.510

(3.7598 - 3.7602)

A

: Sample codes

B

: Bearing stopper groove

C

: Small-end diameter grade

E

: Weight grade

F

: Cylinder No.

G

: Management code

H

:  Front  mark

I

: Management code

A

: Journal diameter grade No. 1

B

: Journal diameter grade No. 2

C

: Journal diameter grade No. 3

D

: Journal diameter grade No. 4

E

: Pin diameter grade No. 1

F

: Pin diameter grade No. 2

G

: Pin diameter grade No. 3

H

: Pin diameter grade No. 4

I

: Pin diameter grade No. 5

JPBIA0208ZZ
