Infiniti EX35. Manual - part 708

INTAKE MANIFOLD COLLECTOR

EM-31

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Tighten in numerical order as shown in the figure.

NOTE:
• The figure shows the electric throttle control actuator (bank 1)

viewed from the air duct side.

• Viewed from the air duct side, order of tightening mounting bolts

of electric throttle control actuator (bank 2) is the same as that of
the electric throttle control actuator (bank 1).

• Perform the “Throttle Valve Closed Position Learning” when har-

ness connector of electric throttle control actuator is disconnected.
Refer to

EC-17, "THROTTLE VALVE CLOSED POSITION

LEARNING : Description"

.

• Perform the “Idle Air Volume Learning” and “Throttle Valve Closed

Position Learning” when electric throttle control actuator is replaced. Refer to

EC-17, "IDLE AIR VOLUME

LEARNING : Description"

 and

EC-17, "THROTTLE VALVE CLOSED POSITION LEARNING : Description"

.

JPBIA0011ZZ

EM-32

< ON-VEHICLE REPAIR >

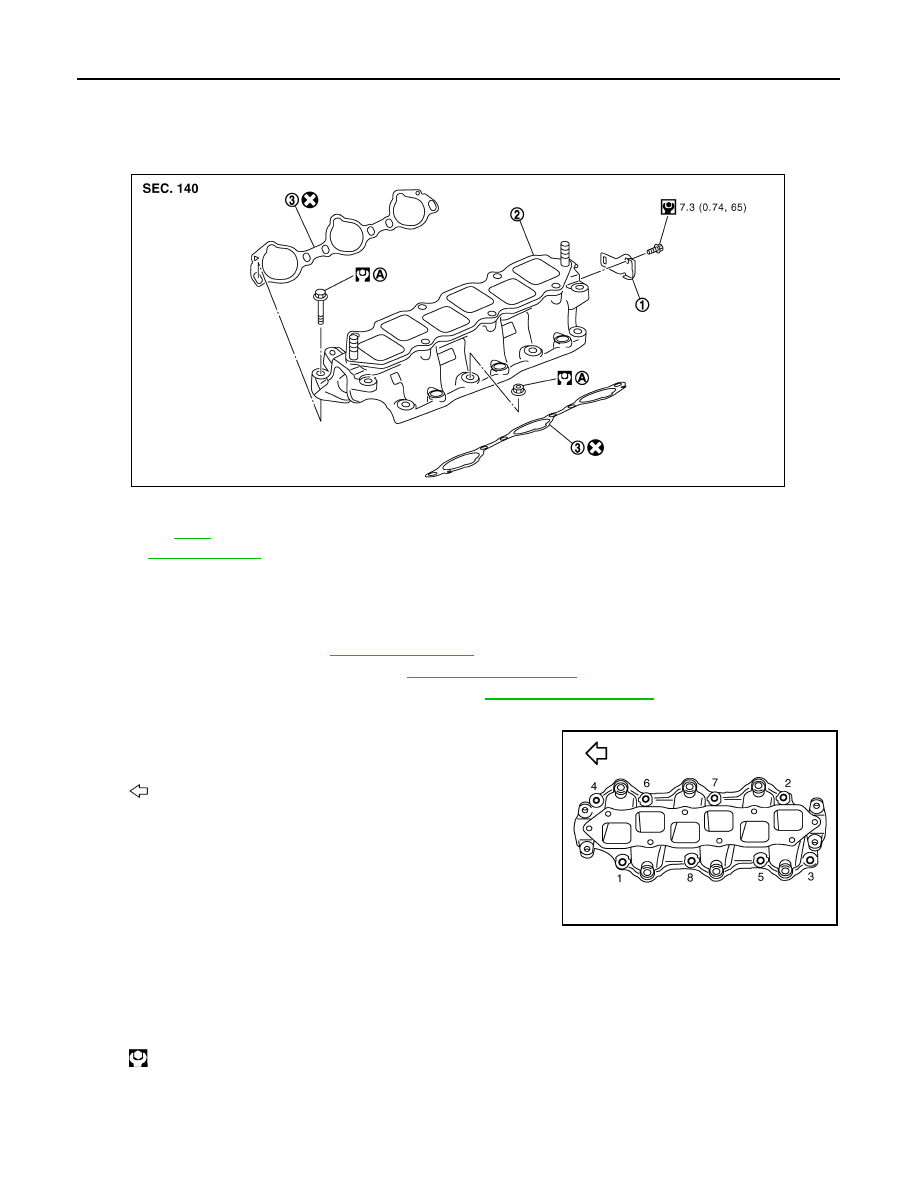

INTAKE MANIFOLD

INTAKE MANIFOLD

Exploded View

INFOID:0000000003139101

Removal and Installation

INFOID:0000000003139102

REMOVAL

1.

Release fuel pressure. Refer to

EC-538, "Inspection"

.

2.

Remove intake manifold collector. Refer to

EM-29, "Exploded View"

.

3.

Remove fuel tube and fuel injector assembly. Refer to

EM-37, "Exploded View"

.

4.

Remove harness bracket.

5.

Loosen mounting bolts and nuts in reverse order as shown in
the figure to remove intake manifold with power tool.

CAUTION:

• Cover engine openings to avoid entry of foreign materi-

als.

• Put a mark on the intake manifold and the cylinder head

with paint before removal because they need installed in
the specified direction.

6.

Remove gaskets.

INSTALLATION

Note the following, and install in the reverse order of removal.

INTAKE MANIFOLD

• If stud bolts were removed, install them and tighten to the specified torque below.

1.

Harness bracket

2.

Intake manifold

3.

Gasket

A.

Refer to

EM-32

Refer to

GI-4, "Components"

 for symbols in the figure.

PBIC5453E

: Engine front

JPBIA0013ZZ

: 10.8 N·m (1.1 kg-m, 8 ft-lb)

INTAKE MANIFOLD

EM-33

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Tighten all mounting bolts and nuts to the specified torque in two or

more steps in numerical order as shown in the figure.

CAUTION:

Install intake manifold with the marks (put on the intake mani-
fold and the cylinder head before removal) aligned.

Inspection

INFOID:0000000003139103

INSPECTION AFTER REMOVAL

Surface Distortion

• Check the surface distortion of the intake manifold mating surface

with a straightedge (A) and a feeler gauge (B).

• If it exceeds the limit, replace intake manifold.

: Engine front

1st step:

: 7.4 N·m (0.75 kg-m, 5 ft-lb)

2nd step and after:

: 25.5 N·m (2.6 kg-m, 19 ft-lb)

JPBIA0013ZZ

Limit

: Refer to

EM-140, "Intake Manifold"

.

JPBIA0015ZZ

EM-34

< ON-VEHICLE REPAIR >

EXHAUST MANIFOLD

EXHAUST MANIFOLD

Exploded View

INFOID:0000000003139104

Removal and Installation

INFOID:0000000003139105

REMOVAL

WARNING:

Perform the work when the exhaust and cooling system have completely cooled down.
NOTE:
When removing bank 1 side parts only, step 2, 5 and 7 are unnecessary.
1.

Remove engine undercover with power tool.

2.

Drain engine coolant. Refer to

CO-7, "Draining"

.

3.

Remove engine cover with power tool. Refer to

EM-25, "Exploded View"

.

4.

Remove air cleaner case and air duct (RH and LH). Refer to

EM-27, "Exploded View"

.

5.

Remove heater pipe and water hose. Refer to

CO-23, "Exploded View"

.

6.

Remove exhaust front tube and three way catalysts (bank 1 and bank 2). Refer to

EX-5, "Exploded View"

.

7.

Disconnect steering lower joint at power steering gear assembly side, and release steering lower shaft.

1.

Heated oxygen sensor 2 (bank 1)

2.

Air fuel ratio sensor 1 (bank 1)

3.

Exhaust manifold cover (upper)

4.

Exhaust manifold (bank 1)

5.

Exhaust manifold cover (lower)

6.

Gasket

7.

Ring gasket

8.

Three way catalyst (bank 1)

9.

Gasket

10. Heated oxygen sensor 2 (bank 2)

11. Gasket

12.

Three way catalyst (bank 2)

13. Ring gasket

14. Exhaust manifold (bank 2)

15.

Exhaust manifold cover (lower)

16. Gasket

17. Air fuel ratio sensor 1 (bank 2)

18.

Exhaust manifold cover (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA1909GB
