AIR CLEANER AND AIR DUCT

Exploded View

INFOID:0000000003139096

Removal and Installation

INFOID:0000000003139097

REMOVAL

1.

Disconnect mass air flow sensor harness connector.

2.

Disconnect PCV hose.

3.

Remove air cleaner case with mass air flow sensor and air duct, disconnecting each joints.
• Add marks as necessary for easier installation.

4.

Remove mass air flow sensor from air cleaner case, as necessary.

CAUTION:

Handle mass air flow sensor with the following cares.
• Never shock mass air flow sensor.
• Never disassemble mass air flow sensor.

1.

Mass air flow sensor (bank 1)

2.

Air cleaner filter

3.

Holder

4.

Bracket

5.

Resonator (RH)

6.

Bracket

7.

Grommet

8.

Grommet

9.

Air cleaner case (RH)

10. Clamp

11.

Air duct (RH)

12. PCV hose

13. Air duct (LH)

14. Mass air flow sensor (bank 2)

15. Air cleaner case (LH)

16. Bracket

17. Resonator (LH)

18. Bracket

19. Clamp

20. PCV hose

A.

To electric throttle control actuator
(bank 2)

B.

To electric throttle control actuator
(bank 1)

C.

To rocker cover (bank 2)

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA1824GB

EM-28

< ON-VEHICLE REPAIR >

AIR CLEANER AND AIR DUCT

• Never touch mass air flow sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.

Inspection

INFOID:0000000003139098

INSPECTION AFTER REMOVAL

Inspect air duct and resonator assembly for crack or tear.
• If anything found, replace air duct and resonator assembly.

INTAKE MANIFOLD COLLECTOR

EM-29

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

INTAKE MANIFOLD COLLECTOR

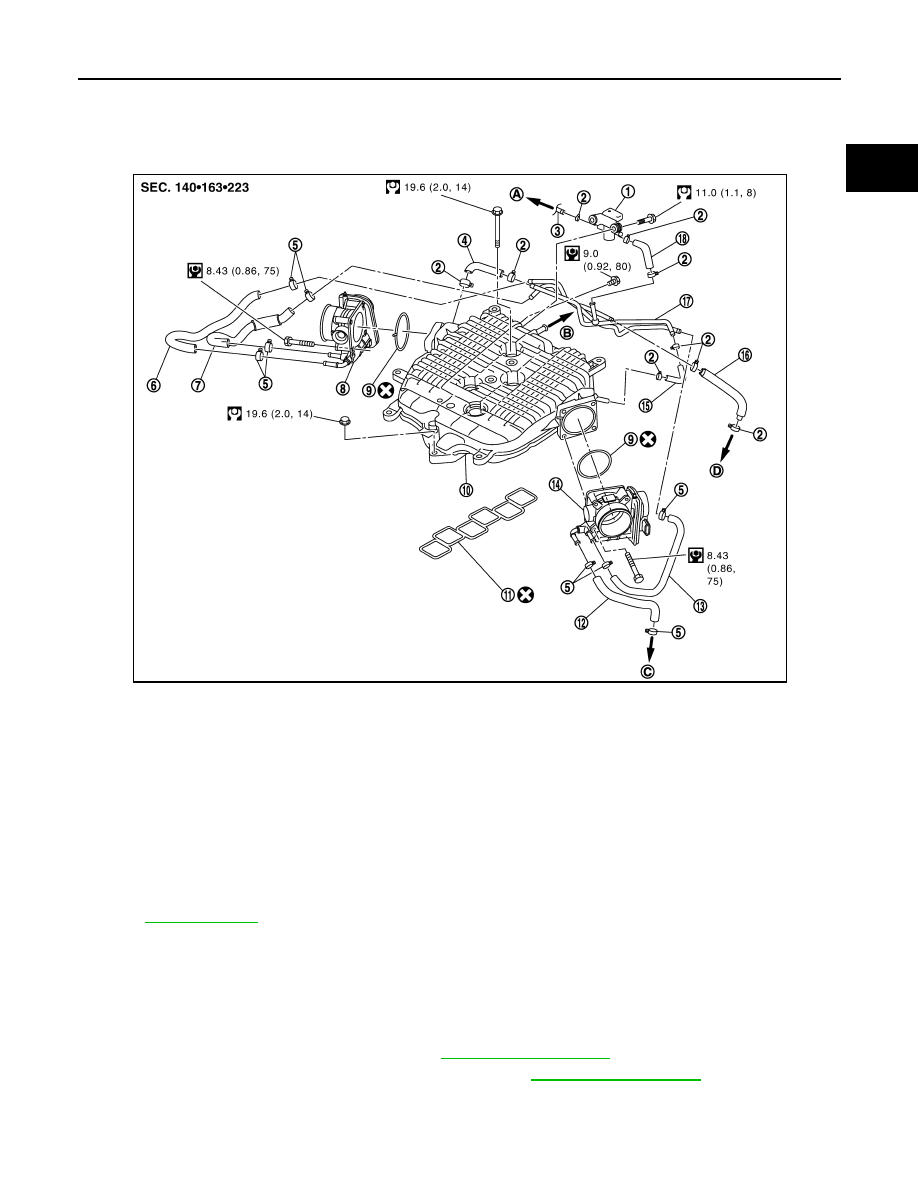

Exploded View

INFOID:0000000003139099

Removal and Installation

INFOID:0000000003139100

REMOVAL

WARNING:

Never drain engine coolant when the engine is hot to avoid the danger of being scalded.
1.

Remove engine cover with power tool. Refer to

EM-25, "Exploded View"

.

2.

Remove air cleaner case and air duct (RH and LH). Refer to

EM-27, "Exploded View"

.

3.

Remove electric throttle control actuator as follows:

a.

Drain engine coolant, or when water hoses are disconnected, attach plug to prevent engine coolant leak-
age.

1.

EVAP canister purge control solenoid
valve

2.

Clamp

3.

EVAP hose

4.

EVAP hose

5.

Clamp

6.

Water hose

7.

Water hose

8.

Electric throttle control actuator
(bank1)

9.

Gasket

10. Intake manifold collector

11.

Gasket

12. Water hose

13. Water hose

14.

Electric throttle control actuator
(bank2)

15. EVAP hose

16. Water hose

17. EVAP tube assembly

18. EVAP hose

A.

To vacuum pipe

B.

To brake booster

C.

To heater pipe

D.

To water outlet (rear)

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA1900GB

EM-30

< ON-VEHICLE REPAIR >

INTAKE MANIFOLD COLLECTOR

CAUTION:

• Perform this step when engine is cold.
• Never spill engine coolant on drive belt.

b.

Disconnect water hoses from electric throttle control actuator. When engine coolant is not drained from
radiator, attach plug to water hoses to prevent engine coolant leakage.

c.

Disconnect harness connector.

d.

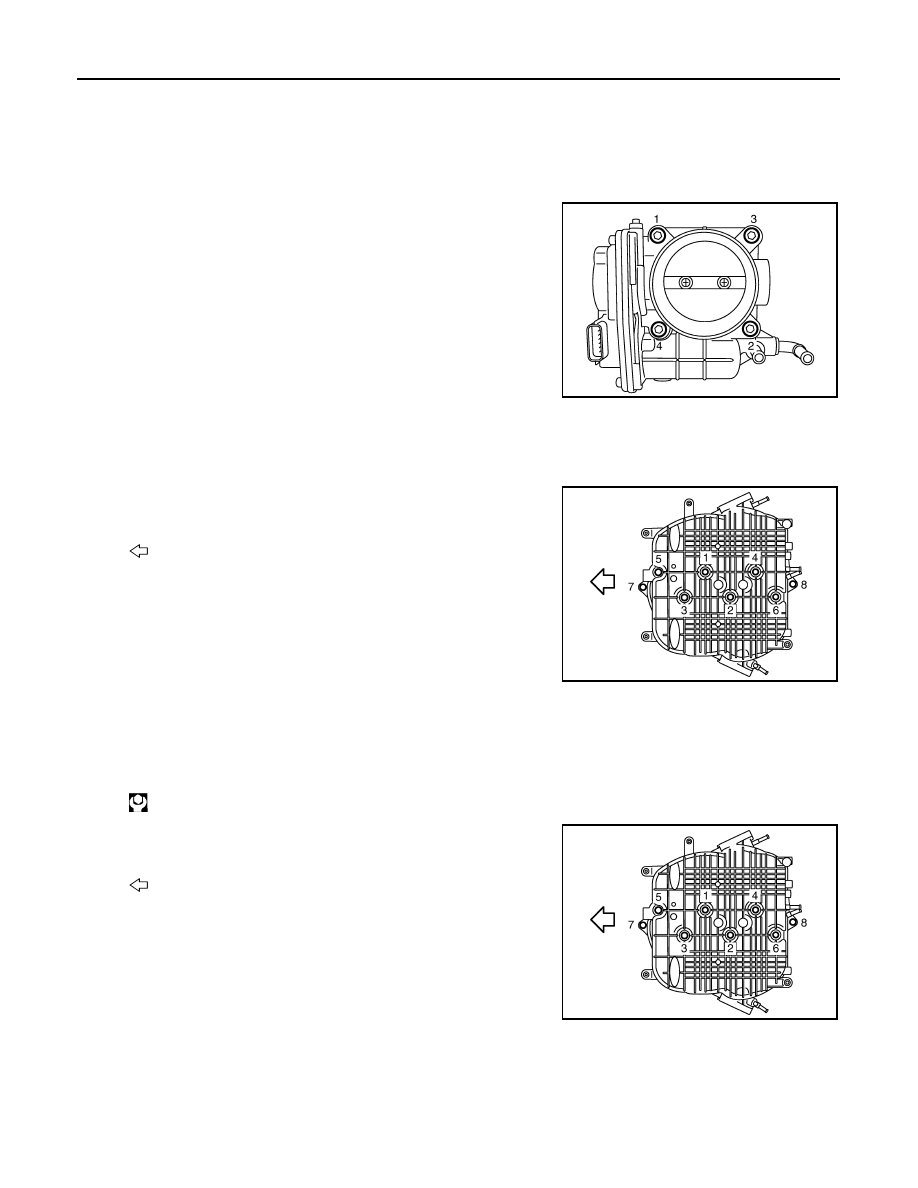

Loosen mounting bolts in reverse order as shown in the figure.
NOTE:
• When removing only intake manifold collector, move electric

throttle control actuator without disconnecting the water hose.

• The figure shows the electric throttle control actuator (bank 1)

viewed from the air duct side.

• Viewed from the air duct side, order of loosening mounting

bolts of electric throttle control actuator (bank 2) is the same
as that of the electric throttle control actuator (bank 1).

CAUTION:

Handle carefully to avoid any shock to electric throttle con-
trol actuator.

4.

Disconnect vacuum hose, PCV hose and EVAP hose from intake manifold collector.

5.

Remove EVAP canister purge volume control solenoid valve and EVAP tube assembly from intake mani-
fold collector.

6.

Loosen mounting bolts and nuts with power tool in the reverse
order as shown in the figure to remove intake manifold collector.

INSTALLATION

Note the following, and install in the reverse order of removal.

INTAKE MANIFOLD COLLECTOR

• If stud bolts were removed, install them and tighten to the specified torque below.

• Tighten mounting bolts and nuts in numerical order as shown in the

figure.

WATER HOSE

• Insert hose by 27 to 32 mm (1.06 to 1.26 in) from connector end.
• Clamp hose at location of 3 to 7 mm (0.12 to 0.28 in) from hose end.

ELECTRIC THROTTLE CONTROL ACTUATOR (BANK 1 AND BANK 2)

JPBIA0011ZZ

: Engine front

JPBIA0012ZZ

: 10.8 N·m (1.1 kg-m, 8 ft-lb)

: Engine front

JPBIA0012ZZ
