NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

EM-3

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting - Engine Noise

INFOID:0000000003139068

Use the Chart Below to Help You Find the Cause of the Symptom

INFOID:0000000003139069

1.

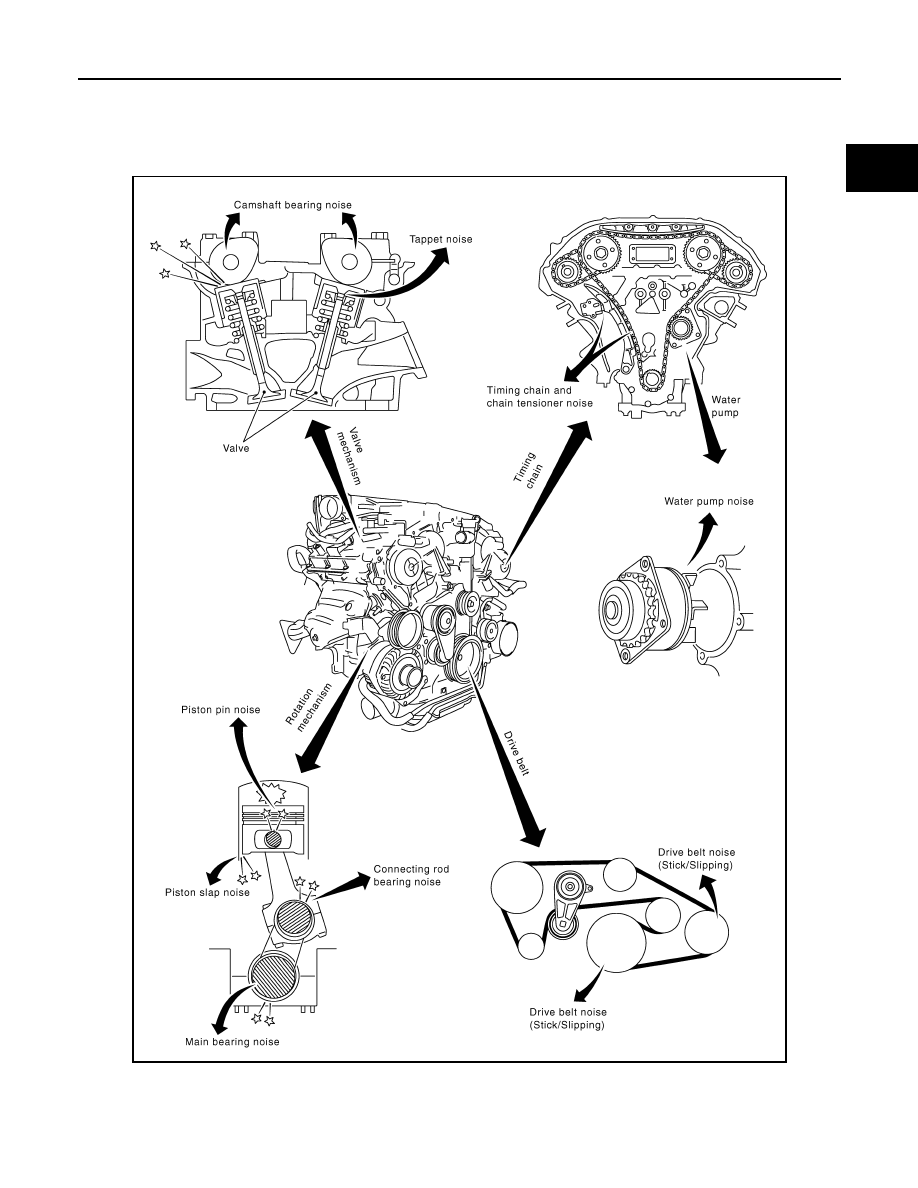

Locate the area where noise occurs.

JPBIA0001GB

EM-4

< SYMPTOM DIAGNOSIS >

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

2.

Confirm the type of noise.

3.

Specify the operating condition of the engine.

4.

Check specified noise source.

If necessary, repair or replace these parts.

A: Closely related

B: Related

C: Sometimes related

—: Not related

Location

of noise

Type of

noise

Operating condition of engine

Source of

noise

Check item

Refer-

ence page

Before

warm-

up

After

warm-

up

When

start-

ing

When

idling

When

racing

While

driving

Top of en-
gine
Rocker
cover
Cylinder
head

Ticking or
clicking

C

A

A

B

Tappet
noise

Valve clearance

EM-18

Rattle

C

A

A

B

C

Camshaft
bearing
noise

Camshaft runout
Camshaft journal oil
clearance

EM-140
EM-140

Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil pan

Slap or
knock

A

B

B

Piston pin
noise

Piston to piston pin oil
clearance
Connecting rod bushing
oil clearance

EM-144

EM-144

Slap or
rap

A

B

B

A

Piston
slap noise

Piston to cylinder bore
clearance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsion

EM-144

EM-144

EM-144
EM-144

Knock

A

B

C

B

B

B

Connect-
ing rod
bearing
noise

Connecting rod bushing
oil clearance
Connecting rod bearing
oil clearance

EM-144

EM-149

Knock

A

B

A

B

C

Main bear-
ing noise

Main bearing oil clear-
ance
Crankshaft runout

EM-148

EM-144

Front of
engine
Timing
chain case

Tapping or
ticking

A

A

B

B

B

Timing
chain and
timing
chain ten-
sioner
noise

Timing chain cracks
and wear
Timing chain tensioner
operation

EM-65

EM-51

Front of
engine

Squeak-
ing or fizz-
ing

A

B

B

C

Drive belt
(Sticking
or slip-
ping)

Drive belt deflection

EM-13

Creaking

A

B

A

B

A

B

Drive belt
(Slipping)

Idler pulley bearing op-
eration

Squall
Creak

A

B

B

A

B

Water
pump
noise

Water pump operation

CO-18,

"Exploded

View"
