P0014, P0024 EVT CONTROL

1.

Select “DATA MONITOR” mode with CONSULT-III.

2.

Maintain the following conditions for at least 20 consecutive seconds.

CAUTION:

Always drive at a safe speed.

3.

Check 1st trip DTC.

With GST

Follow the procedure “With CONSULT-III” above.

Is 1st trip DTC detected?

YES

>> Go to

EC-142, "Diagnosis Procedure"

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000003133301

1.

CHECK FUNCTION OF EXHAUST VALVE TIMING CONTROL

 With CONSULT-III

1.

Turn ignition switch ON.

2.

Select “EXH V/T ANGLE” in “ACTIVE TEST” mode with CONSULT-III.

3.

Start engine and keep the engine speed at 2,500 rpm, then touch “START”.

4.

Check that the values of “EXH/V TIM B1” and “EXH/V TIM B2” change when touching “UP” or “DOWN”.

 Without CONSULT-III

1.

Start engine and rev engine up above 1,500 rpm.

2.

Read the voltage signal between ECM harness connector terminals as follows with an oscilloscope.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> GO TO 2.

2.

CHECK EXHAUST VALVE TIMING CONTROL MAGNET RETARDER

Refer to

EC-143, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

REPLACE EXHAUST VALVE TIMING CONTROL MAGNET RETARDER

1.

Replace malfunctioning exhaust valve timing control magnet retarder.

2.

Perform

EC-19, "EXHAUST VALVE TIMING CONTROL LEARNING : Special Repair Requirement"

.

ENG SPEED

1,700 - 2,950 rpm (A constant rotation is maintained.)

COOLAN TEMP/S

More than 70

°

C (158

°

F)

Selector lever

1st or 2nd position

Driving location uphill

Driving vehicle uphill
(Increased engine load will help maintain the driving
conditions required for this test.)

ECM

Voltage signal

+

–

Connector

Terminal

Connector

Terminal

F101

6

[EVT control magnet re-

tarder (bank 1) signal]

M107

128

7

[EVT control magnet re-

tarder (bank 2) signal]

JMBIA0034GB

P0014, P0024 EVT CONTROL

EC-143

< COMPONENT DIAGNOSIS >

[VQ35HR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

>> INSPECTION END

4.

CHECK EXHAUST VALVE TIMING CONTROL POSITION SENSOR

Refer to

EC-348, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace malfunctioning exhaust valve timing control position sensor.

5.

CHECK CRANKSHAFT POSITION SENSOR (POS)

Refer to

EC-255, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace crankshaft position sensor (POS).

6.

CHECK CAMSHAFT POSITION SENSOR (PHASE)

Refer to

EC-260, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace malfunctioning camshaft position sensor (PHASE).

7.

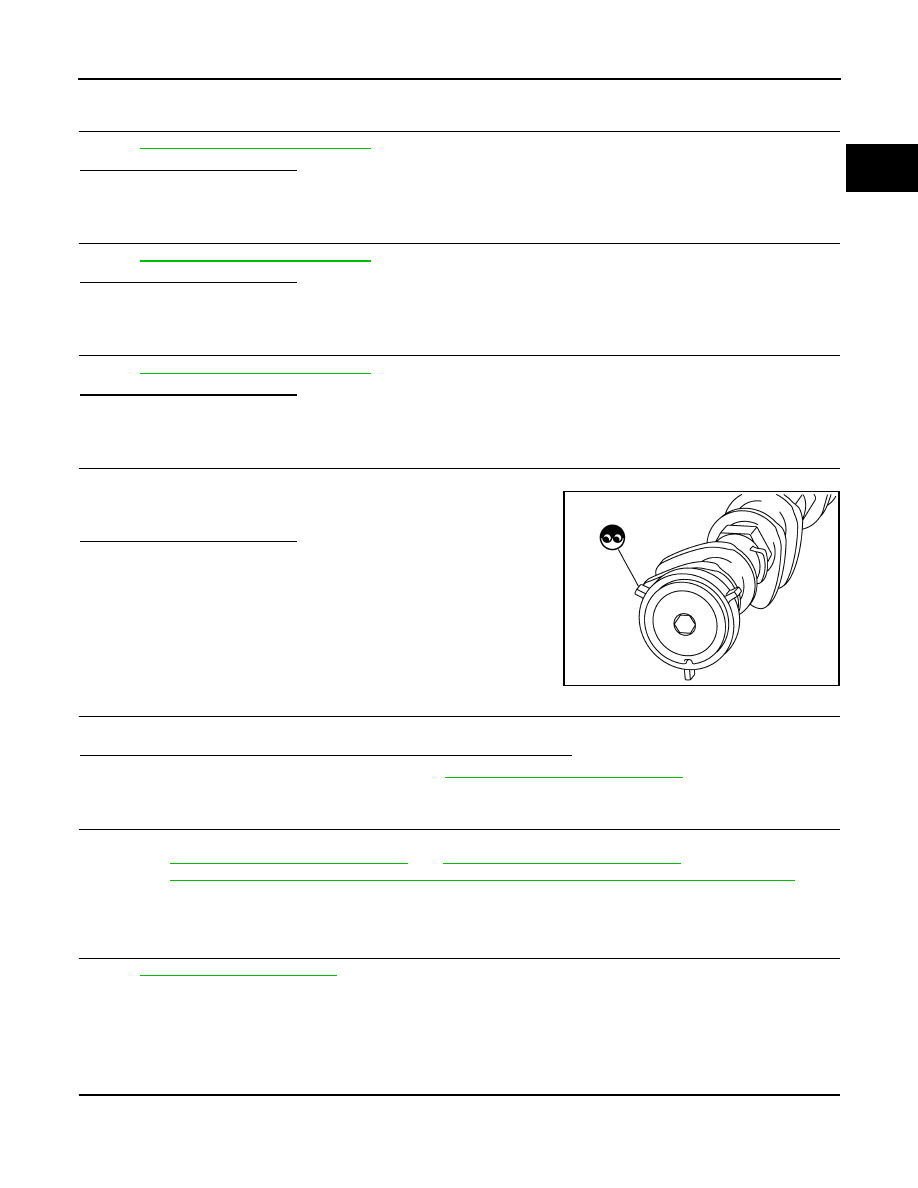

CHECK CAMSHAFT (EXH)

Check the following.
• Accumulation of debris to the signal plate of camshaft rear end
• Chipping signal plate of camshaft rear end
Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Remove debris and clean the signal plate of camshaft

rear end or replace camshaft.

8.

CHECK TIMING CHAIN INSTALLATION

Check service records for any recent repairs that may cause timing chain misaligned.
Are there any service records that may cause timing chain misaligned?

YES

>> Check timing chain installation. Refer to

EM-51, "Removal and Installation"

.

NO

>> GO TO 9.

9.

REPLACE EXHAUST VALVE TIMING CONTROL PULLEY ASSEMBLY

1.

Replace exhaust valve timing control pulley assembly and exhaust valve timing control magnet retarder.
Refer to

EM-51, "Removal and Installation"

 and

EM-67, "Removal and Installation"

.

2.

Perform

EC-19, "EXHAUST VALVE TIMING CONTROL LEARNING : Special Repair Requirement"

.

>> INSPECTION END

10.

CHECK INTERMITTENT INCIDENT

Refer to

GI-38, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000003133302

1.

CHECK EXHAUST VALVE TIMING CONTROL MAGNET RETARDER

1.

Turn ignition switch OFF.

2.

Disconnect exhaust valve timing control magnet retarder harness connector.

JMBIA0059ZZ

EC-144

< COMPONENT DIAGNOSIS >

[VQ35HR]

P0014, P0024 EVT CONTROL

3.

Check resistance between exhaust valve timing control magnet retarder terminals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

REPLACE EXHAUST VALVE TIMING CONTROL MAGNET RETARDER

1.

Replace malfunctioning exhaust valve timing control magnet retarder.

2.

Perform

EC-19, "EXHAUST VALVE TIMING CONTROL LEARNING : Special Repair Requirement"

.

>> INSPECTION END

Terminals

Resistance

1 and 2

9.0 - 11.0

Ω

 [at 20

°

C (68

°

F)]

P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER

EC-145

< COMPONENT DIAGNOSIS >

[VQ35HR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER

Description

INFOID:0000000003133303

SYSTEM DESCRIPTION

The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the engine operating
condition to keep the temperature of A/F sensor 1 element at the specified range.

DTC Logic

INFOID:0000000003133304

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10.5V and 16V at
idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start engine and let it idle for at least 10 seconds.

2.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-145, "Diagnosis Procedure"

.

NG

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000003133305

1.

CHECK GROUND CONNECTION

1.

Turn ignition switch OFF.

2.

Check ground connection M95. Refer to Ground Inspection in

GI-41, "Circuit Inspection"

.

Sensor

Input signal to ECM

ECM function

Actuator

Camshaft position sensor (PHASE)
Crankshaft position sensor (POS)

Engine speed

Air fuel ratio (A/F) sensor 1
heater control

Air fuel ratio (A/F) sensor 1
heater

Mass air flow sensor

Amount of intake air

 DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0031

Air fuel ratio (A/F) sensor
1 heater (bank 1) control
circuit low

The current amperage in the A/F sensor 1 heater
circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the A/F sensor 1 heater.)

• Harness or connectors

(The A/F sensor 1 heater circuit is
open or shorted.)

• A/F sensor 1 heater

P0032

Air fuel ratio (A/F) sensor
1 heater (bank 1) control
circuit high

The current amperage in the A/F sensor 1 heater
circuit is out of the normal range.
(An excessively high voltage signal is sent to ECM
through the A/F sensor 1 heater.)

• Harness or connectors

(The A/F sensor 1 heater circuit is
shorted.)

• A/F sensor 1 heater

P0051

Air fuel ratio (A/F) sensor
1 heater (bank 2) control
circuit low

The current amperage in the A/F sensor 1 heater
circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the A/F sensor 1 heater.)

• Harness or connectors

(The A/F sensor 1 heater circuit is
open or shorted.)

• A/F sensor 1 heater

P0052

Air fuel ratio (A/F) sensor
1 heater (bank 2) control
circuit high

The current amperage in the A/F sensor 1 heater
circuit is out of the normal range.
(An excessively high voltage signal is sent to ECM
through the A/F sensor 1 heater.)

• Harness or connectors

(The A/F sensor 1 heater circuit is
shorted.)

• A/F sensor 1 heater
