Infiniti EX35. Manual - part 535





DLN-90

< ON-VEHICLE REPAIR >

[REAR PROPELLER SHAFT: 3F80A-1VL107]

REAR PROPELLER SHAFT

5.

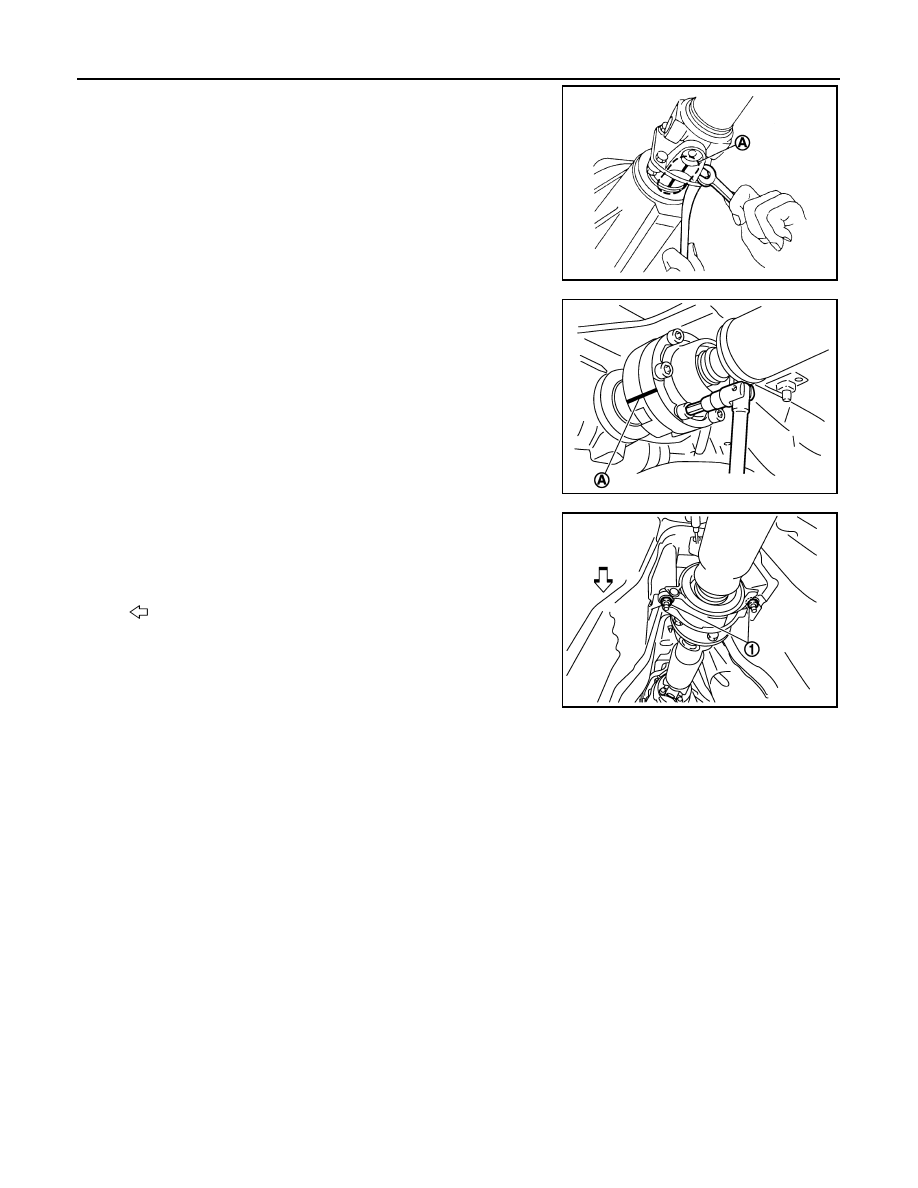

Put matching marks (A) on propeller shaft flange yoke and
transfer companion flange.

CAUTION:

For matching marks, use paint. Never damage propeller
shaft flange yoke and transfer companion flange.

6.

Put matching marks (A) on propeller shaft rebro joint and final
drive companion flange.

CAUTION:

For matching marks, use paint. Never damage propeller
shaft rebro joint and final drive companion flange.

7.

Loosen mounting nuts (1) of center bearing mounting brackets
(upper/lower).

CAUTION:

Tighten mounting nuts temporarily.

8.

Remove propeller shaft assembly fixing bolts and nuts.

9.

Remove center bearing mounting bracket fixing nuts.

10. Remove propeller shaft assembly.

CAUTION:

• Never damage the rear oil seal of transmission.
• If constant velocity joint was bent during propeller shaft assembly removal, installation, or trans-

portation, its boot may be damaged. Wrap boot interference area to metal part with shop cloth or
rubber to protect boot from breakage.

INSTALLATION

Note the following, and install in the reverse order of removal.

JPDID0207ZZ

JPDID0208ZZ

: Vehicle front

JPDID0187ZZ

REAR PROPELLER SHAFT

DLN-91

< ON-VEHICLE REPAIR >

[REAR PROPELLER SHAFT: 3F80A-1VL107]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

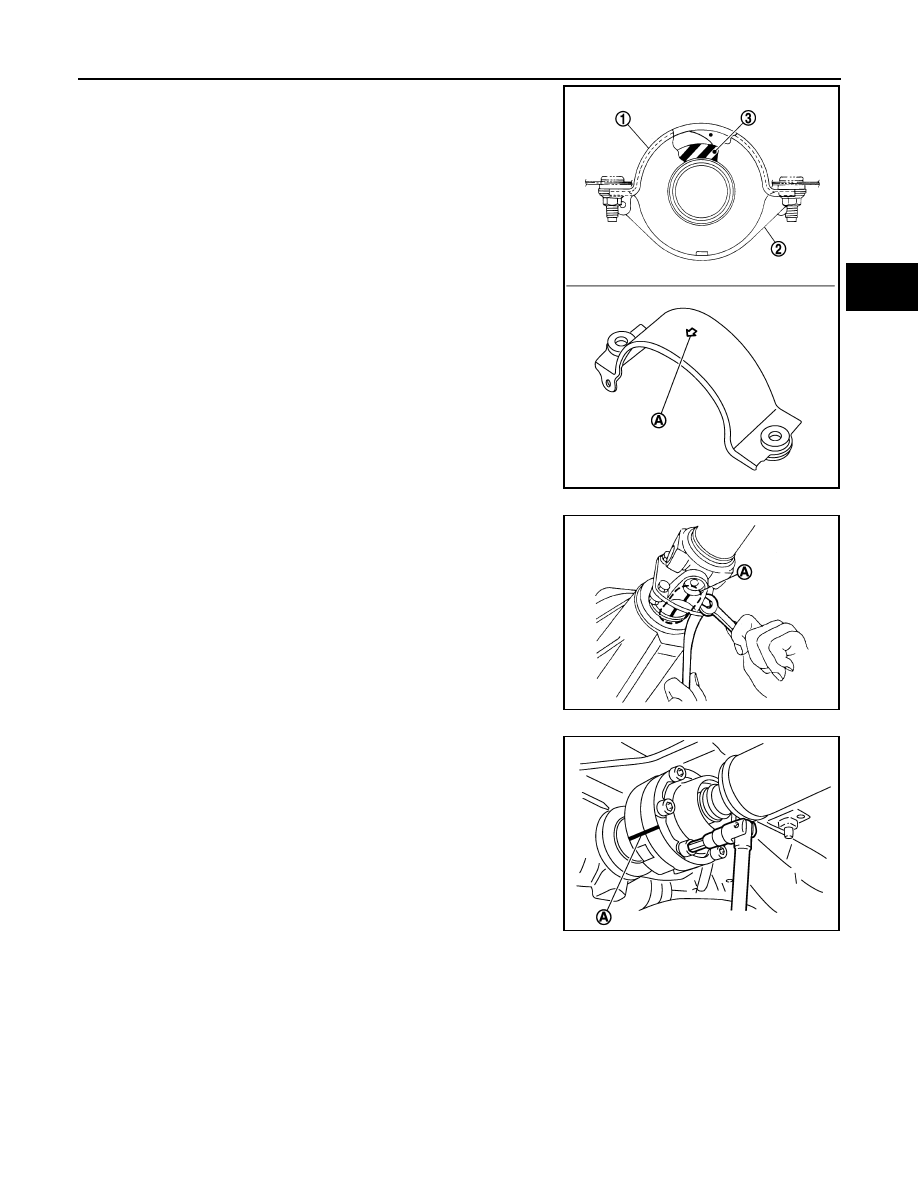

• Install center bearing mounting bracket (upper) (1) with its arrow

mark (A) facing forward.

• Adjust position of center bearing mounting bracket (upper), center

bearing mounting bracket (lower) (2) sliding back and forth to pre-
vent play in thrust direction of center bearing insulator (3). Install
center bearing mounting bracket (upper/lower) to vehicle.

• Align matching marks (A) to install propeller shaft flange yoke and

transfer companion flange.

• Align matching marks (A) to install propeller shaft rebro joint and

final drive companion flange.

CAUTION:

JPDID0145ZZ

JPDID0207ZZ

JPDID0208ZZ

DLN-92

< ON-VEHICLE REPAIR >

[REAR PROPELLER SHAFT: 3F80A-1VL107]

REAR PROPELLER SHAFT

Tighten mounting bolt and nut in the order shown in the fig-
ure.

• After assembly, perform a driving test to check propeller shaft

vibration. If vibration occurred, separate propeller shaft from final
drive. Reinstall companion flange after rotating it by 60, 120, 180,
240, 300 degrees. Then perform driving test and check propeller
shaft vibration again at each point.

• If propeller shaft or final drive has been replaced, connect them as

follows:

- Install the propeller shaft while aligning its matching mark (A) with

the matching mark (B) on the joint as close as possible.

CAUTION:

• Avoid damaging the rebro joint boot, protect it with a shop

towel or equivalent.

• Tighten mounting bolt and nut in the order shown in the fig-

ure.

Inspection

INFOID:0000000003135772

APPEARANCE

Check propeller shaft for bend and damage. If damage is detected, replace propeller shaft assembly.

PROPELLER SHAFT RUNOUT

Check propeller shaft runout at measuring points with a dial indica-
tor. If runout exceeds specifications, replace propeller shaft assem-
bly. For measuring point, refer to

DLN-88, "Inspection"

.

JOURNAL AXIAL PLAY

JPDID0204ZZ

SDIA2049E

JPDID0204ZZ

Limit

Propeller shaft runout

: Refer to

DLN-94, "Propel-

ler Shaft Runout"

.

JSDIA0079ZZ

REAR PROPELLER SHAFT

DLN-93

< ON-VEHICLE REPAIR >

[REAR PROPELLER SHAFT: 3F80A-1VL107]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

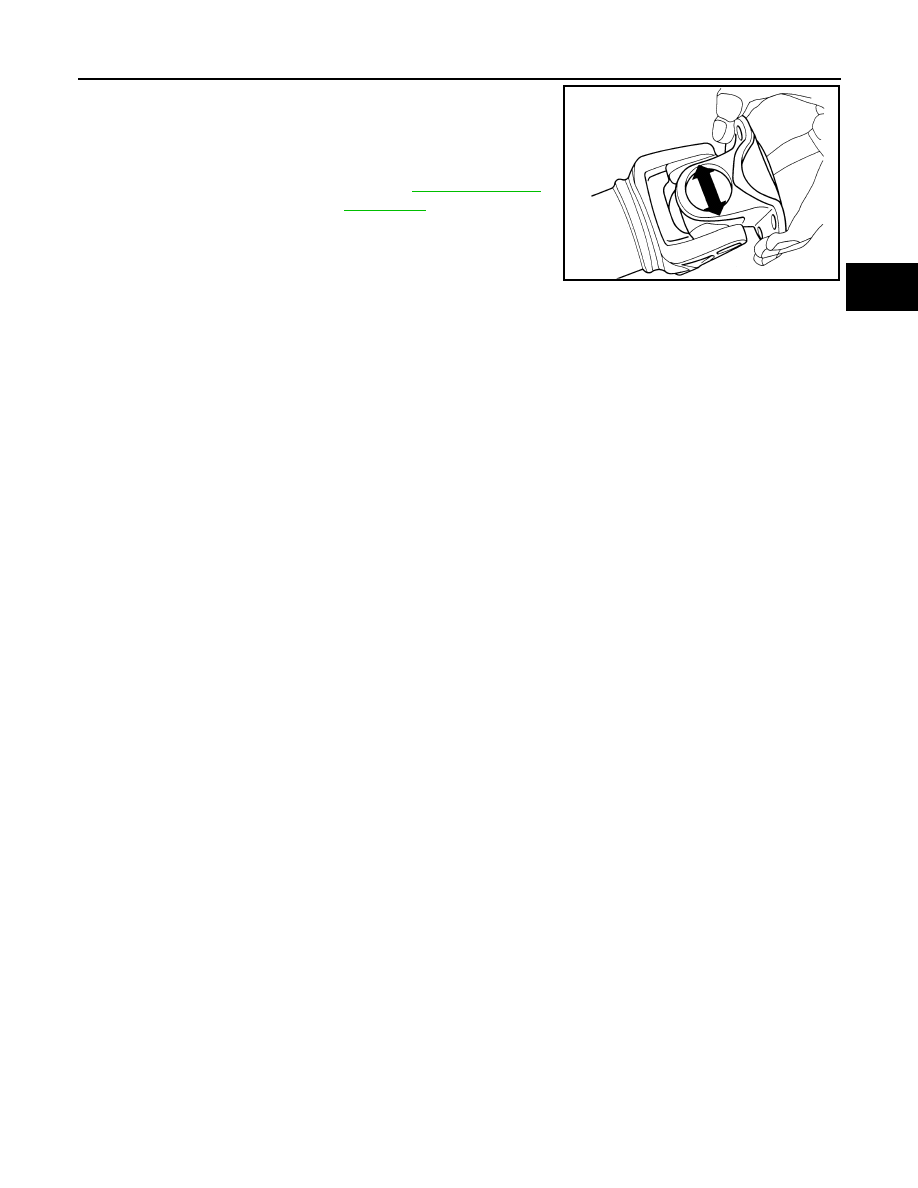

As shown in the figure, while fixing yoke on one side, check axial
play of joint. If it is outside the standard, replace propeller shaft
assembly.

CAUTION:

Never disassemble joints.

CENTER BEARING

Check center bearing for noise and damage. If noise or damage is detected, replace propeller shaft assembly.

CAUTION:

Never disassemble center bearing.

Standard

Journal axial play

: Refer to

DLN-94, "Journal

Axial Play"

.

PDA0005D
