DLN-74

< ON-VEHICLE MAINTENANCE >

[FRONT PROPELLER SHAFT: 2S56A]

FRONT PROPELLER SHAFT

ON-VEHICLE MAINTENANCE

FRONT PROPELLER SHAFT

Inspection

INFOID:0000000003135742

NOISE

Check the propeller shaft tube surface for dents or cracks. If damaged, replace propeller shaft assembly.

VIBRATION

If vibration is present at high speed, inspect propeller shaft runout first.
1.

With a dial indicator, measure propeller shaft runout at runout
measuring points by rotating final drive companion flange with
hands.

2.

If runout still exceeds specifications, separate propeller shaft at
final drive companion flange; then rotate companion flange 90,
180, 270 degrees and install propeller shaft.

3.

Check runout again. If runout still exceeds specifications, replace propeller shaft assembly.

4.

Check the vibration by driving vehicle.

RUNOUT MEASURING POINT

Propeller shaft runout measuring point (Point “ ”).

: Vehicle front

Limit

Propeller shaft runout

: Refer to

DLN-77, "Propel-

ler Shaft Runout"

.

JPDID0185ZZ

Standard

A

: 381.5 mm (15.02 in)

PDIA0768J

FRONT PROPELLER SHAFT

DLN-75

< ON-VEHICLE REPAIR >

[FRONT PROPELLER SHAFT: 2S56A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

ON-VEHICLE REPAIR

FRONT PROPELLER SHAFT

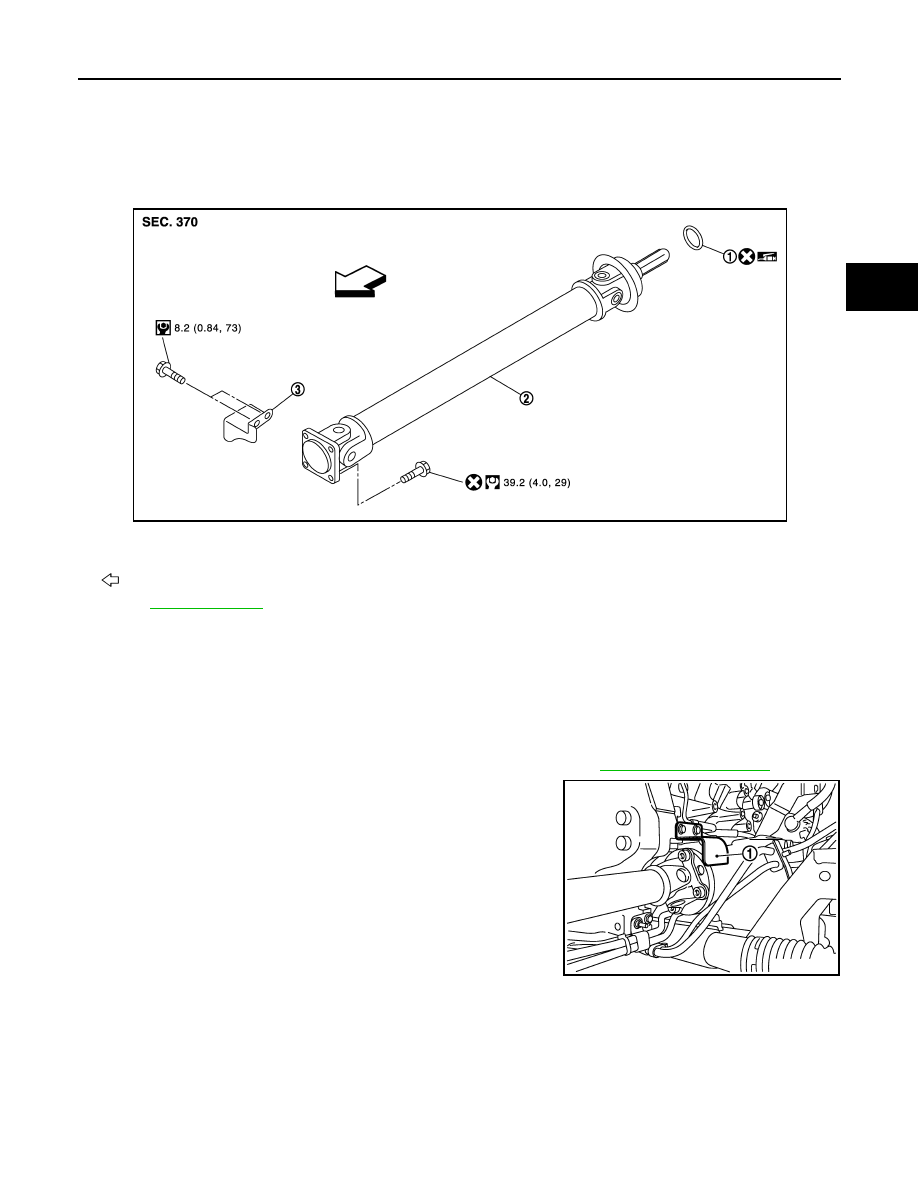

Exploded View

INFOID:0000000003135743

Removal and Installation

INFOID:0000000003135744

REMOVAL

1.

Shift the transaxle to the neutral position, and then release the parking brake.

2.

Remove engine undercover with a power tool.

3.

Remove front cross bar.

4.

Remove the three-way catalyst (right bank) with a power tool. Refer to

EM-34, "Exploded View"

.

5.

Remove heat bracket (1).

1.

O-ring

2.

Propeller shaft assembly

3.

Heat bracket

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDID0186GB

JSDIA0013ZZ

DLN-76

< ON-VEHICLE REPAIR >

[FRONT PROPELLER SHAFT: 2S56A]

FRONT PROPELLER SHAFT

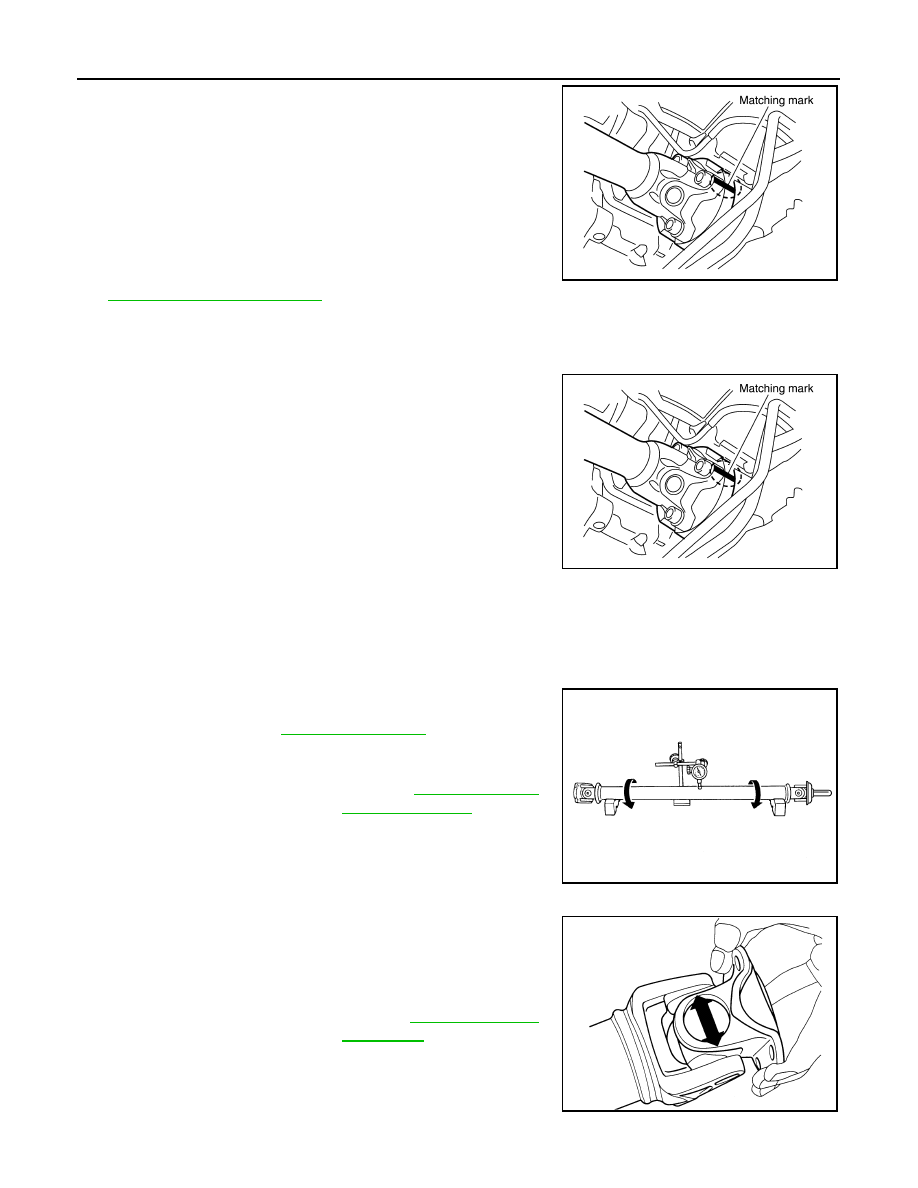

6.

Put matching mark onto propeller shaft flange yoke and final
drive companion flange.

CAUTION:

For matching mark, use paint. Never damage propeller shaft
flange and final drive companion flange.

7.

Remove the propeller shaft assembly fixing bolts.

8.

Remove propeller shaft assembly from the front final drive and
transfer.

CAUTION:

Never damage the transfer front oil seal.

9.

Hang steering hydraulic line not to interfere with work. Refer to

ST-52, "AWD : Exploded View"

.

10. Remove propeller shaft assembly from O-ring.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Align matching mark to install propeller shaft assembly to final

drive companion flange.

• After assembly, perform a driving test to check propeller shaft

vibration. If vibration occurred, separate propeller shaft from final
drive. Reinstall companion flange after rotating it by 90, 180, 270
degrees. Then perform driving test and check propeller shaft vibra-
tion again at each point.

CAUTION:

• Never damage the transfer front oil seal.
• Never reuse O-ring.
• Apply multi-purpose grease onto O-ring.

Inspection

INFOID:0000000003135745

APPEARANCE

Check propeller shaft for bend and damage. If damage is detected, replace propeller shaft assembly.

PROPELLER SHAFT RUNOUT

Check propeller shaft runout at measuring point with a dial indicator.
If runout exceeds specifications, replace propeller shaft assembly.
For measuring point, refer to

DLN-74, "Inspection"

.

JOURNAL AXIAL PLAY

As shown in the figure, while fixing yoke on one side, check axial
play of joint. If it is outside the standard, replace propeller shaft
assembly.

CAUTION:

Never disassemble joints.

SDIA1517E

SDIA1517E

Limit

Propeller shaft runout

: Refer to

DLN-77, "Propel-

ler Shaft Runout"

.

JSDIA0083ZZ

Standard

Journal axial play

: Refer to

DLN-77, "Journal

Axial Play"

.

PDA0005D

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-77

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FRONT PROPELLER SHAFT: 2S56A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000003135746

Propeller Shaft Runout

INFOID:0000000003135747

Unit: mm (in)

Journal Axial Play

INFOID:0000000003135748

Unit: mm (in)

Applied model

AWD

VQ35HR

A/T

Propeller shaft model

2S56A

Number of joints

2

Type of journal bearings
(Non-disassembly type)

Shell type

Coupling method with transfer

Sleeve type

Coupling method with front final drive

Flange type

Shaft length (Spider to spider)

763 mm (30.04 in)

Shaft outer diameter

42.7 mm (1.681 in)

Item

Limit

Propeller shaft runout

0.8 (0.031)

Item

Standard

Journal axial play

0 (0)
