Infiniti EX35. Manual - part 525





DLN-50

< REMOVAL AND INSTALLATION >

[TRANSFER: ETX13B]

TRANSFER ASSEMBLY

REMOVAL AND INSTALLATION

TRANSFER ASSEMBLY

Exploded View

INFOID:0000000003135725

Removal and Installation

INFOID:0000000003135726

REMOVAL

1.

Remove exhaust front tube with power tool. Refer to

EX-6, "Removal and Installation"

.

2.

Remove front propeller shaft. Refer to

DLN-75, "Removal and Installation"

.

3.

Remove rear propeller shaft. Refer to

DLN-89, "Removal and Installation"

.

4.

Disconnect AWD solenoid harness connector and separate harness from transfer assembly.

5.

Remove transfer air breather hose.

6.

Remove control rod. Refer to

TM-161, "Removal and Installation"

.

7.

Support transfer assembly and transmission assembly with a jack.

8.

Remove rear engine mounting member and engine mounting insulator with power tool. Refer to

EM-84,

"AWD : Removal and Installation"

.

9.

Lower jack to the position where the top transfer mounting bolts
can be removed.

10. Remove transfer mounting bolts with power tool and separate

transfer from transmission.

CAUTION:

Secure transfer assembly and transmission assembly to a
jack.

INSTALLATION

Note the following, and install in the reverse order of removal.

1.

Transfer assembly

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JSDIA0052GB

PDIA0560J

TRANSFER ASSEMBLY

DLN-51

< REMOVAL AND INSTALLATION >

[TRANSFER: ETX13B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

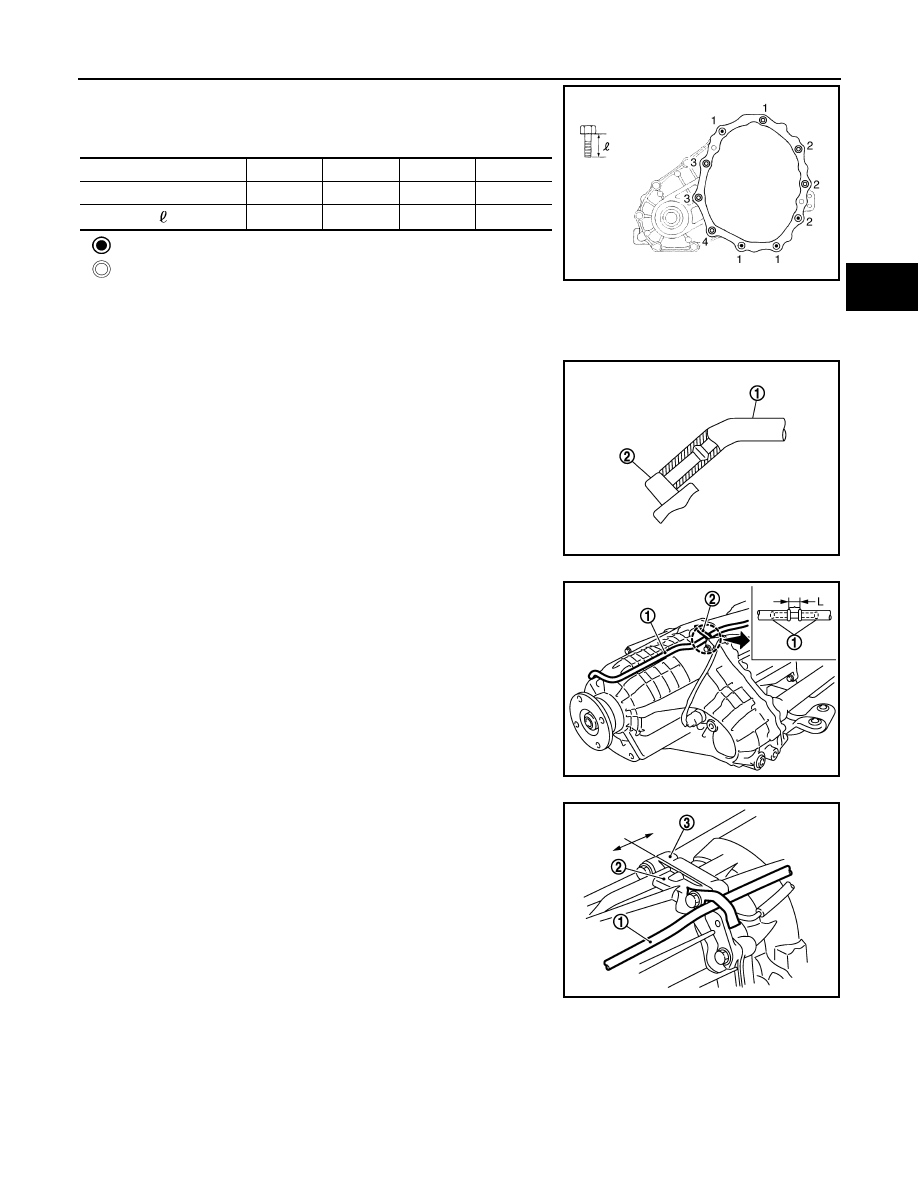

• When installing the transfer to the transmission, install the mount-

ing bolts following the standard below, tighten bolts to the specified
torque.

:Transfer to transmission.

:Transmission to transfer.

• When installing transfer air breather hose, make sure there are no pinched or restricted areas on the transfer

air breather hose caused by bending or winding.

- Set transfer air breather hose with paint mark facing upward.
- Be sure to insert transfer air breather hose (1) into breather tube

(2) until hose end reaches the tube's base.

- Do not deviate from the range (L) of the transfer air breather when

installing the transfer air breather hose (1) to the harness bracket
(2) of the transfer.

- Install transfer air breather hose (1) with bracket between the

adapter case (2) and the transmission case (3).

Bolt  No.

1

2

3

4

Quantity

4

3

2

1

Bolt length “

” mm (in)

75 (2.95)

45 (1.77)

40 (1.57)

30 (1.18)

JPDIE0064ZZ

JSDIA0053ZZ

JSDIA0054ZZ

JSDIA0055ZZ

DLN-52

< REMOVAL AND INSTALLATION >

[TRANSFER: ETX13B]

TRANSFER ASSEMBLY

- Check that transfer breather hose is on the (

) side when install-

ing the transfer air breather hose (1) to A/T fluid charging pipe (2).

- Be sure to insert air breather hose to transfer tube until hose end

reaches the tube's base and another hose end reaches the tube
bend R portion of A/T fluid charging pipe.

• After the installation, check the fluid level, fluid leakage and the A/T

positions. Refer to

DLN-43, "Inspection"

.

JSDIA0056ZZ

FRONT CASE AND REAR CASE

DLN-53

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ETX13B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

DISASSEMBLY AND ASSEMBLY

FRONT CASE AND REAR CASE

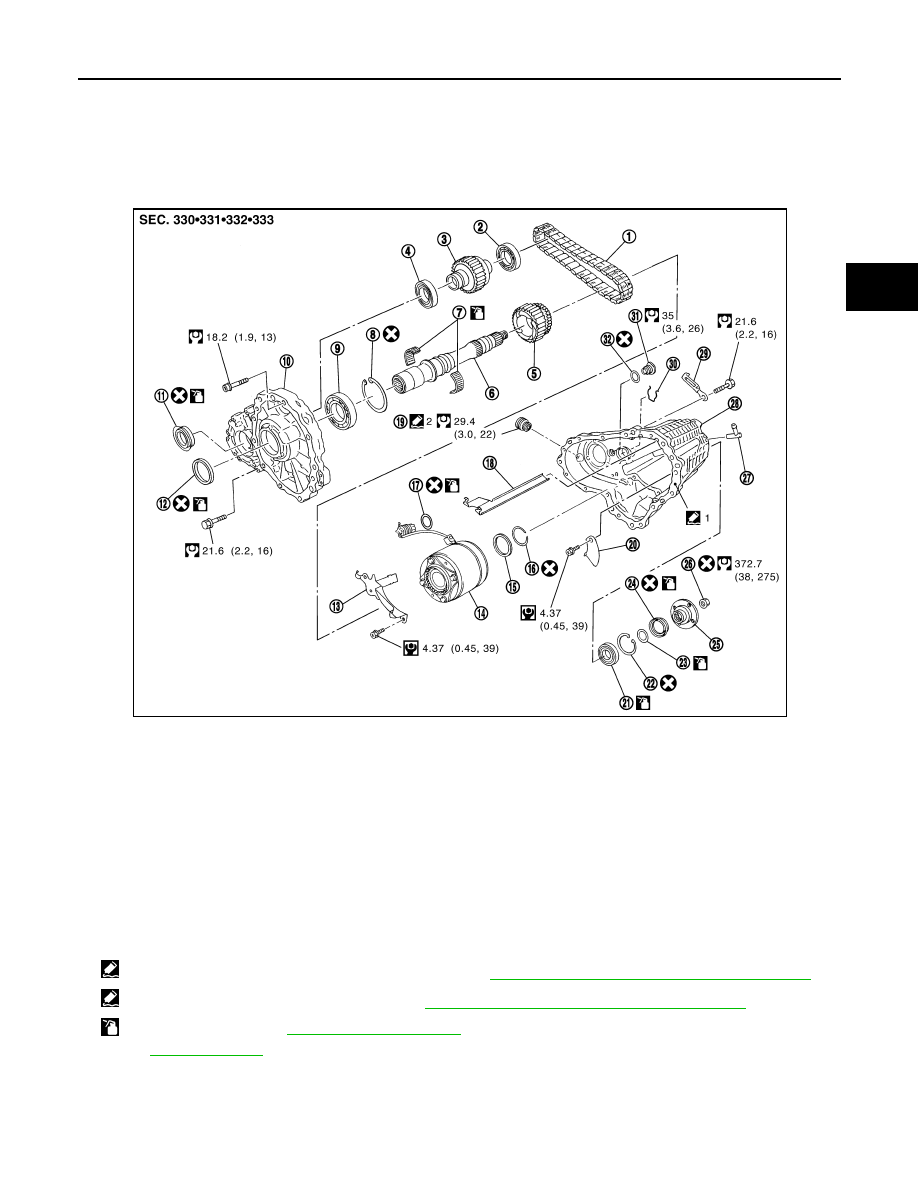

Exploded View

INFOID:0000000003566116

Disassembly

INFOID:0000000003135728

1.

Remove drain plug and filler plug.

1.

Drive chain

2.

Front drive shaft rear bearing

3.

Front drive shaft

4.

Front drive shaft front bearing

5.

Sprocket

6.

Mainshaft

7.

Needle bearing

8.

Snap ring

9.

Mainshaft bearing

10. Front case

11.

Front oil seal

12. Mainshaft oil seal

13. Oil cover

14. Electric controlled coupling

15. Spacer

16. Snap ring

17. O-ring

18. Oil gutter

19. Drain plug

20. Baffle plate

21. Rear bearing

22. Snap ring

23. Spacer

24. Rear oil seal

25. Companion flange

26. Self-lock nut

27. Breather tube

28. Rear case

29. Harness bracket

30. Retainer

31. Filler plug

32. Gasket

1: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

2: Apply Genuine Silicone RTV or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

: Apply transfer fluid. Refer to

MA-10, "Fluids and Lubricants"

.

Refer to

GI-4, "Components"

 for symbols not described above.

JPDIE0057GB
