Infiniti EX35. Manual - part 524





DLN-46

< ON-VEHICLE REPAIR >

[TRANSFER: ETX13B]

FRONT OIL SEAL

3.

Remove front oil seal with a suitable tool.

CAUTION:

Never damage the front case and front drive shaft.

INSTALLATION

1.

Apply transfer fluid to front oil seal, install it with a drift (A) [SST:
ST27862000 (

)] until the end face of front case.

CAUTION:

• Never reuse front oil seal.
• When installing, never incline front oil seal.

2.

Install front propeller shaft. Refer to

DLN-75, "Removal and

Installation"

.

3.

Install transfer fluid, check fluid level and for fluid leakage. Refer
to

DLN-43, "Inspection"

.

PDIA0537J

JPDIE0058ZZ

REAR OIL SEAL

DLN-47

< ON-VEHICLE REPAIR >

[TRANSFER: ETX13B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

REAR OIL SEAL

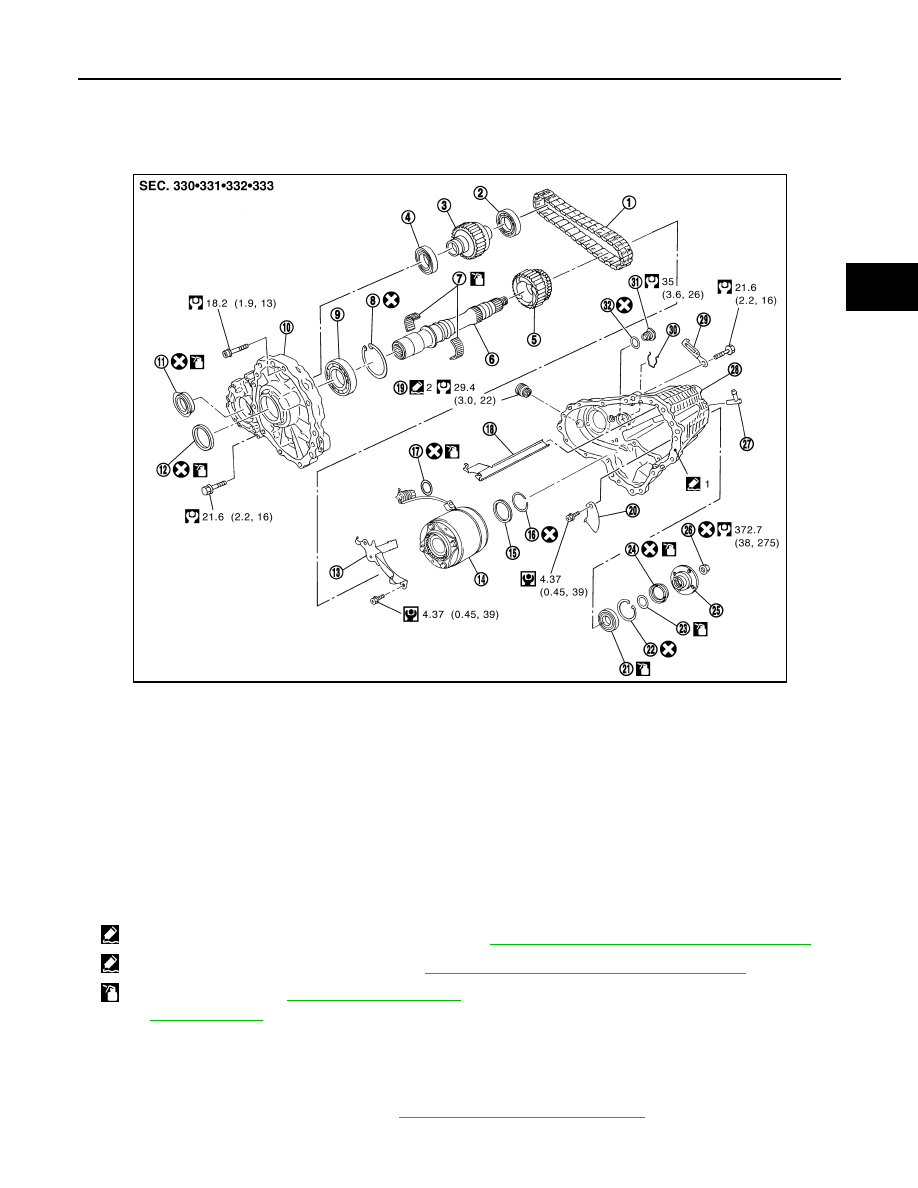

Exploded View

INFOID:0000000003566112

Removal and Installation

INFOID:0000000003135724

REMOVAL

1.

Remove the rear propeller shaft. Refer to

DLN-89, "Removal and Installation"

.

1.

Drive chain

2.

Front drive shaft rear bearing

3.

Front drive shaft

4.

Front drive shaft front bearing

5.

Sprocket

6.

Mainshaft

7.

Needle bearing

8.

Snap ring

9.

Mainshaft bearing

10. Front case

11.

Front oil seal

12. Mainshaft oil seal

13. Oil cover

14. Electric controlled coupling

15. Spacer

16. Snap ring

17. O-ring

18. Oil gutter

19. Drain plug

20. Baffle plate

21. Rear bearing

22. Snap ring

23. Spacer

24. Rear oil seal

25. Companion flange

26. Self-lock nut

27. Breather tube

28. Rear case

29. Harness bracket

30. Retainer

31. Filler plug

32. Gasket

1: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

2: Apply Genuine Silicone RTV or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

: Apply transfer fluid. Refer to

MA-10, "Fluids and Lubricants"

.

Refer to

GI-4, "Components"

 for symbols not described above.

JPDIE0057GB

DLN-48

< ON-VEHICLE REPAIR >

[TRANSFER: ETX13B]

REAR OIL SEAL

2.

Remove self-lock nut of companion flange with a flange wrench
(A) (commercial service tool).

3.

Put matching mark (A) on the end of the mainshaft. The mark
should be in line with the mark (B) on the companion flange.

CAUTION:

For matching mark, use paint. Never damage mainshaft.

4.

Remove the companion flange with a puller (A) (commercial ser-
vice tool).

CAUTION:

Never damage the companion flange.

5.

Remove the rear oil seal with the puller (A) [SST: KV381054S0
(J-34286)].

CAUTION:

Never damage the rear case.

INSTALLATION

JPDIE0059ZZ

JPDIE0060ZZ

JPDIE0061ZZ

JPDIE0062ZZ

REAR OIL SEAL

DLN-49

< ON-VEHICLE REPAIR >

[TRANSFER: ETX13B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

1.

Apply transfer fluid to rear oil seal, install it with the drifts within
the dimension (L) shown as follows.

CAUTION:

• Never reuse rear oil seal.
• When installing, never incline rear oil seal.

2.

Align the matching mark (A) of mainshaft with the mark (B) of
companion flange, then install the companion flange.

3.

Using a flange wrench (A) (commercial service tool), install the
self-lock nut of companion flange and tighten to the specified
torque.

CAUTION:

Never reuse self-lock nut.

4.

Install the rear propeller shaft. Refer to

DLN-89, "Removal and

Installation"

.

5.

Check fluid level. Refer to

DLN-43, "Inspection"

.

A

: Drift [SST: ST30720000 (J-25405)]

B

: Drift [SST: KV40104830 (

)]

L

: 6.7 – 7.3 mm (0.264 – 0.287 in)

JSDIA0167ZZ

JPDIE0060ZZ

JPDIE0063ZZ
