DLK-258

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

INSIDE KEY ANTENNA

INSIDE KEY ANTENNA

INSTRUMENT CENTER

INSTRUMENT CENTER : Exploded View

INFOID:0000000003729111

INSTRUMENT CENTER : Removal and Installation

INFOID:0000000003729112

REMOVAL

1.

Remove the console finisher assembly. Refer to

IP-22, "Removal and Installation"

.

2.

Remove the key antenna mounting screw (instrument center)
(A), and then remove inside key antenna (instrument center) (1).

INSTALLATION

Install in the reverse order of removal.

CONSOLE

CONSOLE : Exploded View

INFOID:0000000003729113

Refer to

IP-22, "Exploded View"

.

CONSOLE : Removal and Installation

INFOID:0000000003729114

REMOVAL

1.

Remove the console pocket and rear finisher. Refer to

IP-22, "Removal and Installation"

.

1.

Inside key antenna (instrument center)

JMKIA1814ZZ

JMKIA1815ZZ

INSIDE KEY ANTENNA

DLK-259

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

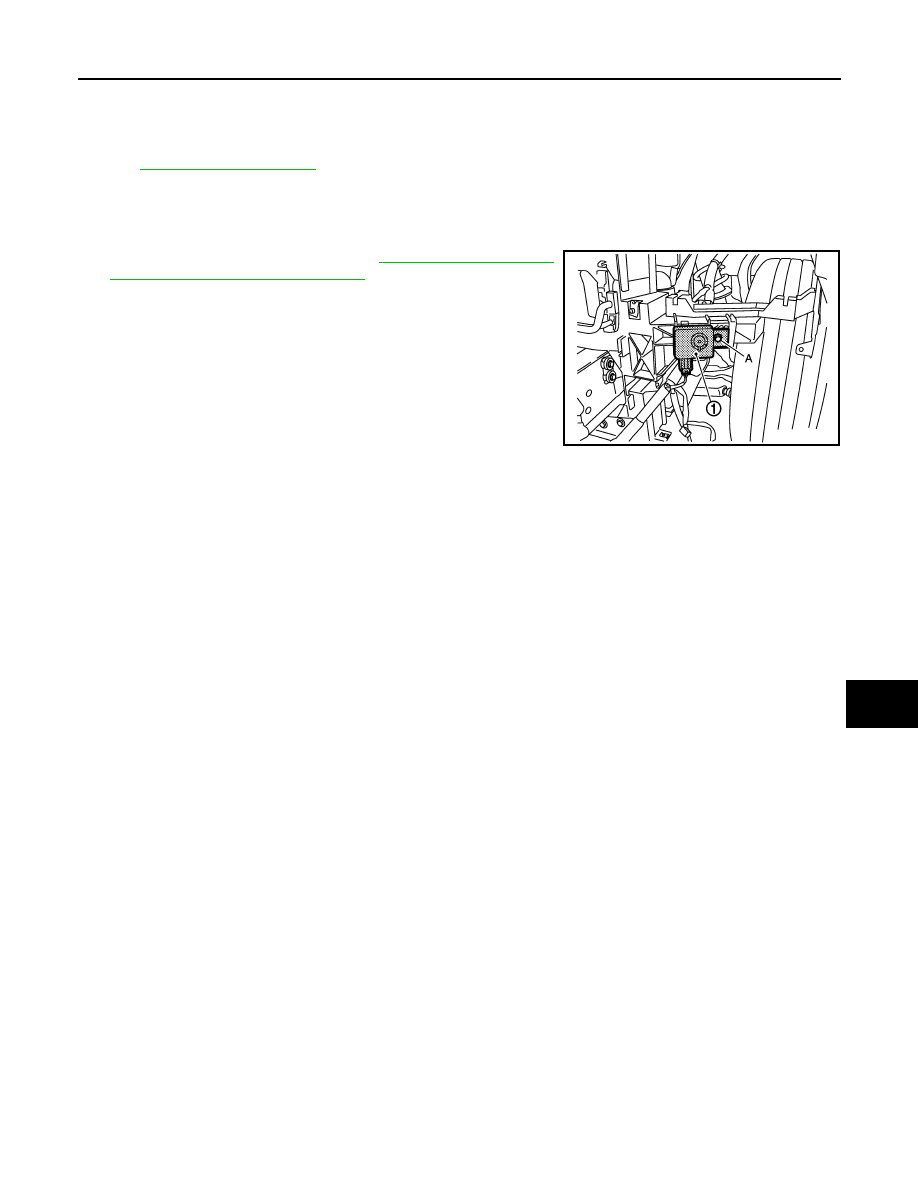

2.

Remove the inside key antenna mounting screw (A), and then
remove inside key antenna (console) (1).

INSTALLATION

Install in the reverse order of removal.

LUGGAGE ROOM

LUGGAGE ROOM : Exploded View

INFOID:0000000003729115

Refer to

INT-34, "Exploded View"

.

LUGGAGE ROOM : Removal and Installation

INFOID:0000000003729116

REMOVAL

1.

Remove the luggage floor finisher front. Refer to

INT-35, "Removal and Installation"

.

2.

Remove the inside key antenna (luggage room) mounting clip
(A), and then remove inside key antenna (luggage room) (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA2113ZZ

JMKIA2253ZZ

DLK-260

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

OUTSIDE KEY ANTENNA

OUTSIDE KEY ANTENNA

DRIVER SIDE

DRIVER SIDE : Exploded View

INFOID:0000000003729117

Refer to

DLK-247, "OUTSIDE HANDLE : Exploded View"

.

DRIVER SIDE : Removal and Installation

INFOID:0000000003729118

REMOVAL

Remove the front outside handle LH. Refer to

DLK-247, "OUTSIDE HANDLE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

PASSENGER SIDE

PASSENGER SIDE : Exploded View

INFOID:0000000003729119

Refer to

DLK-247, "OUTSIDE HANDLE : Exploded View"

.

PASSENGER SIDE : Removal and Installation

INFOID:0000000003729120

REMOVAL

Remove the front outside handle RH. Refer to

DLK-247, "OUTSIDE HANDLE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

BACK DOOR

BACK DOOR : Exploded View

INFOID:0000000003729121

Refer to

INT-38, "Exploded View"

.

BACK DOOR : Removal and Installation

INFOID:0000000003729122

REMOVAL

1.

Remove the back door finisher inner. Refer to

EXT-48, "Removal and Installation"

.

2.

Remove the outside key antenna (back door) mounting bolts
(A), and then remove outside key antenna (back door) (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA2283ZZ

INTELLIGENT KEY WARNING BUZZER

DLK-261

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY WARNING BUZZER

Exploded View

INFOID:0000000003729123

Refer to

EXT-12, "Exploded View"

.

Removal and Installation

INFOID:0000000003729124

REMOVAL

1.

Remove the fender protector. Refer to

EXT-25, "FENDER PRO-

TECTOR : Removal and Installation"

.

2.

Remove the Intelligent Key warning buzzer mounting bolt (A),
and then remove the Intelligent Key warning buzzer (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA2112ZZ
