Infiniti EX35. Manual - part 509

DLK-250

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

REAR DOOR LOCK

REAR DOOR LOCK

DOOR LOCK

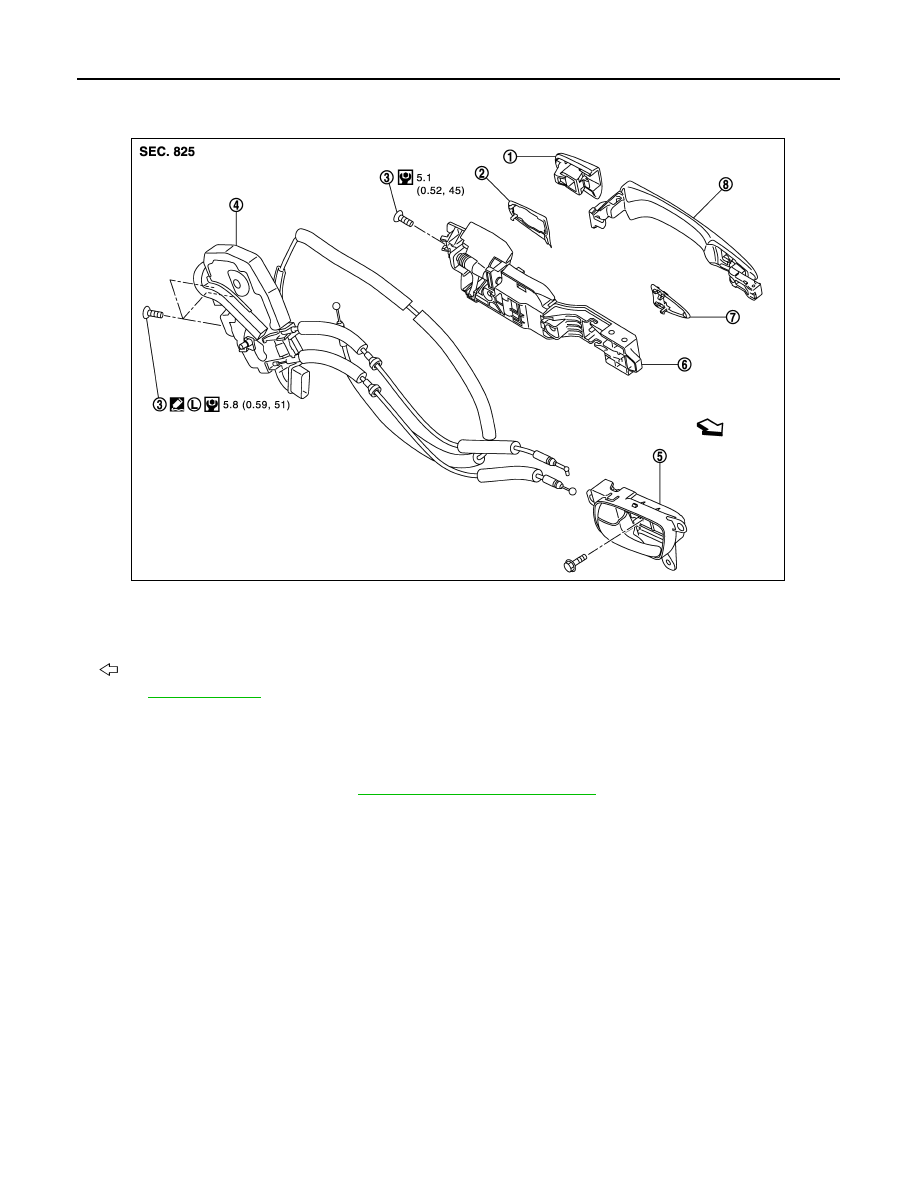

DOOR LOCK : Exploded View

INFOID:0000000003556370

DOOR LOCK : Removal and Installation

INFOID:0000000003556371

REMOVAL

1.

Remove rear door finisher. Refer to

INT-17, "Removal and Installation"

.

2.

Remove sealing screen. Refer to

GW-23, "Removal and Installation"

.

3.

Fully close the rear door glass.

4.

Remove door side grommet, and loosen TORX bolt from grom-
met hole.

CAUTION:

Never remove TORX bolt forcibly.

1.

Outside handle escutcheon

2.

Rear gasket

3.

TORX bolt

4.

Door lock assembly

5.

Inside handle

6.

Outside handle bracket

7.

Front gasket

8.

Outside handle

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2054GB

: TORX bolt

JMKIA2095ZZ

REAR DOOR LOCK

DLK-251

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

5.

While pulling outside handle, remove outside handle escutch-
eon.

6.

While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.

7.

Remove front gasket and rear gasket.

8.

While pulling outside handle bracket, slide toward rear of vehicle
to remove outside handle bracket.

9.

Reach in to separate outside handle cable connection on outside handle bracket.

10. Remove door lock mounting bolts.

11. Remove door lock assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

INSIDE HANDLE

JMKIA0560ZZ

JMKIA0524ZZ

: Pawl

JMKIA2302ZZ

DLK-252

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

REAR DOOR LOCK

INSIDE HANDLE : Exploded View

INFOID:0000000003691277

INSIDE HANDLE : Removal and Installation

INFOID:0000000003556373

REMOVAL

1.

Remove rear door finisher. Refer to

INT-17, "Removal and Installation"

.

2.

Disconnect inside handle cable, and then remove inside handle.

3.

Remove inside handle mounting screws.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

OUTSIDE HANDLE

1.

Outside handle escutcheon

2.

Rear gasket

3.

TORX bolt

4.

Door lock assembly

5.

Inside handle

6.

Outside handle bracket

7.

Front gasket

8.

Outside handle

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2054GB

REAR DOOR LOCK

DLK-253

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

OUTSIDE HANDLE : Exploded View

INFOID:0000000003691279

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000003556375

REMOVAL

1.

Remove door side grommet, and loosen TORX bolt from grom-
met hole.

CAUTION:

Never remove TORX bolt forcibly.

1.

Outside handle escutcheon

2.

Rear gasket

3.

TORX bolt

4.

Door lock assembly

5.

Inside handle

6.

Outside handle bracket

7.

Front gasket

8.

Outside handle

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2054GB

: TORX bolt

JMKIA2095ZZ
