DLK-238

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

BACK DOOR

• Check back door open/close operation after installation.
• Check back door hinge rotating part for poor lubrication. If necessary, apply body grease.
• When removing and installing back door assembly, perform the fitting adjustment. Refer to

DLK-235,

"BACK DOOR ASSEMBLY : Adjustment"

.

• After installation, apply touch-up paint (the body color) onto the head of back door hinge mounting

nuts.

BACK DOOR STAY

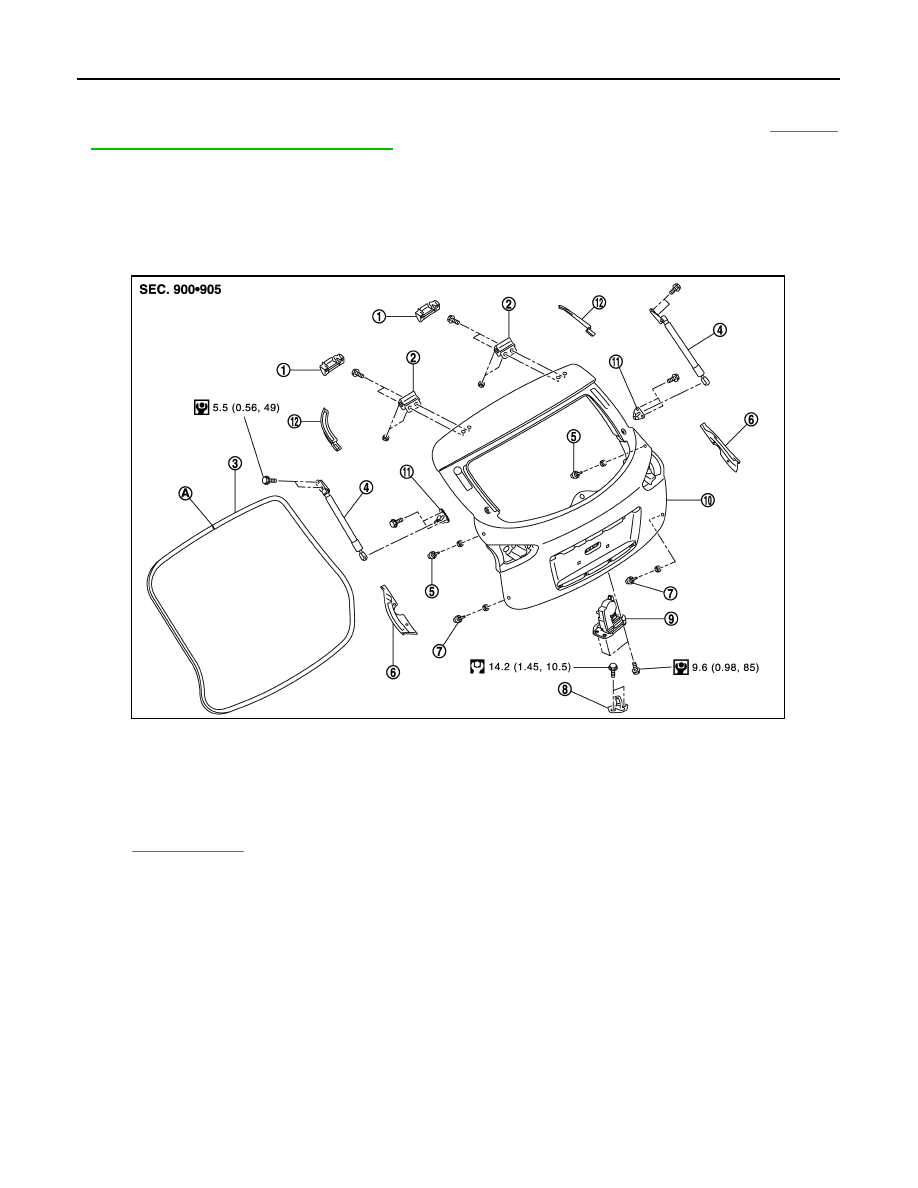

BACK DOOR STAY : Exploded View

INFOID:0000000003586771

BACK DOOR STAY : Removal and Installation

INFOID:0000000003556361

REMOVAL

1.

Support back door lock with the proper material to prevent it from falling.

WARNING:

Body injury may occur if no supporting rod is holding the back door open when removing the
back door stay.

2.

Remove mounting bolts of back door stay (body side).

1.

Back door hinge cover (RH/LH)

2.

Back door hinge (RH/LH)

3.

Back door weather-strip

4.

Back door stay (RH/LH)

5.

Bumper rubber (side) (RH/LH)

6.

Back door seal (side) (RH/LH)

7.

Bumper rubber (lower) (RH/LH)

8.

Back door striker

9.

Back door lock assembly

10. Back door assembly

11. Stud ball assembly (RH/LH)

12.

Back door seal (upper) (RH/LH)

A

:  Center  mark

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2051GB

BACK DOOR

DLK-239

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3.

Remove the metal clip (3) located on the connection between
the back door stay (1) and the stud ball (2) (back door side) by
using a flatted-blade screwdriver (A).

4.

Remove back door stay (back door side).

5.

Remove mounting bolts of stud ball assembly, and then remove stud ball assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check back door open/close operation after installation.

BACK DOOR WEATHER-STRIP

BACK DOOR WEATHER-STRIP : Exploded View

INFOID:0000000003586772

BACK DOOR WEATHER-STRIP : Removal and Installation

INFOID:0000000003556363

REMOVAL

JMKIA2255ZZ

1.

Back door hinge cover (RH/LH)

2.

Back door hinge (RH/LH)

3.

Back door weather-strip

4.

Back door stay (RH/LH)

5.

Bumper rubber (side) (RH/LH)

6.

Back door seal (side) (RH/LH)

7.

Bumper rubber (lower) (RH/LH)

8.

Back door striker

9.

Back door lock assembly

10. Back door assembly

11. Stud ball assembly (RH/LH)

12.

Back door seal (upper) (RH/LH)

A

:  Center  mark

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2051GB

DLK-240

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

BACK DOOR

Pull up and remove engagement with body from weather-strip joint.

CAUTION:

Never pull strongly on weather-strip.

INSTALLATION

1.

Working from the upper section, align weather-strip mark with vehicle center position mark and install
weather-strip onto the vehicle.

2.

For the lower section, align weather-strip seam with center of back door striker.

3.

Pull weather-strip gently to ensure that there is no loose section.
NOTE:
Make sure that weather-strip is fit tightly at each corner and luggage rear plate.

4.

Install mounting bolts of power back door drive assembly (Back door side).

HOOD LOCK

DLK-241

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HOOD LOCK

Exploded View

INFOID:0000000003556328

Removal and Installation

INFOID:0000000003556329

REMOVAL

CAUTION:

Check wiring of hood lock control before removal.
1.

Remove mounting clips, of front grille upper side and front
bumper fascia. Refer to

EXT-20, "Removal and Installation"

 and

EXT-13, "Removal and Installation"

.

2.

Remove mounting bolts of hood lock cover.

3.

Disconnect harness clip and hood lock cable from hood lock cover.

4.

Remove hood lock cover.

1.

Hood striker (RH/LH)

2.

Hood lock cover (RH/LH)

3.

Hood lock (RH/LH)

4.

Secondary latch

5.

Hood lock control cable (front)

6.

Hood lock control cable protector

7.

Hood lock control cable protector
cover

8.

Hood lock control cable (rear)

9.

Hood lock opener

: Clip

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2052GB

: Clip

JMKIA2118ZZ
