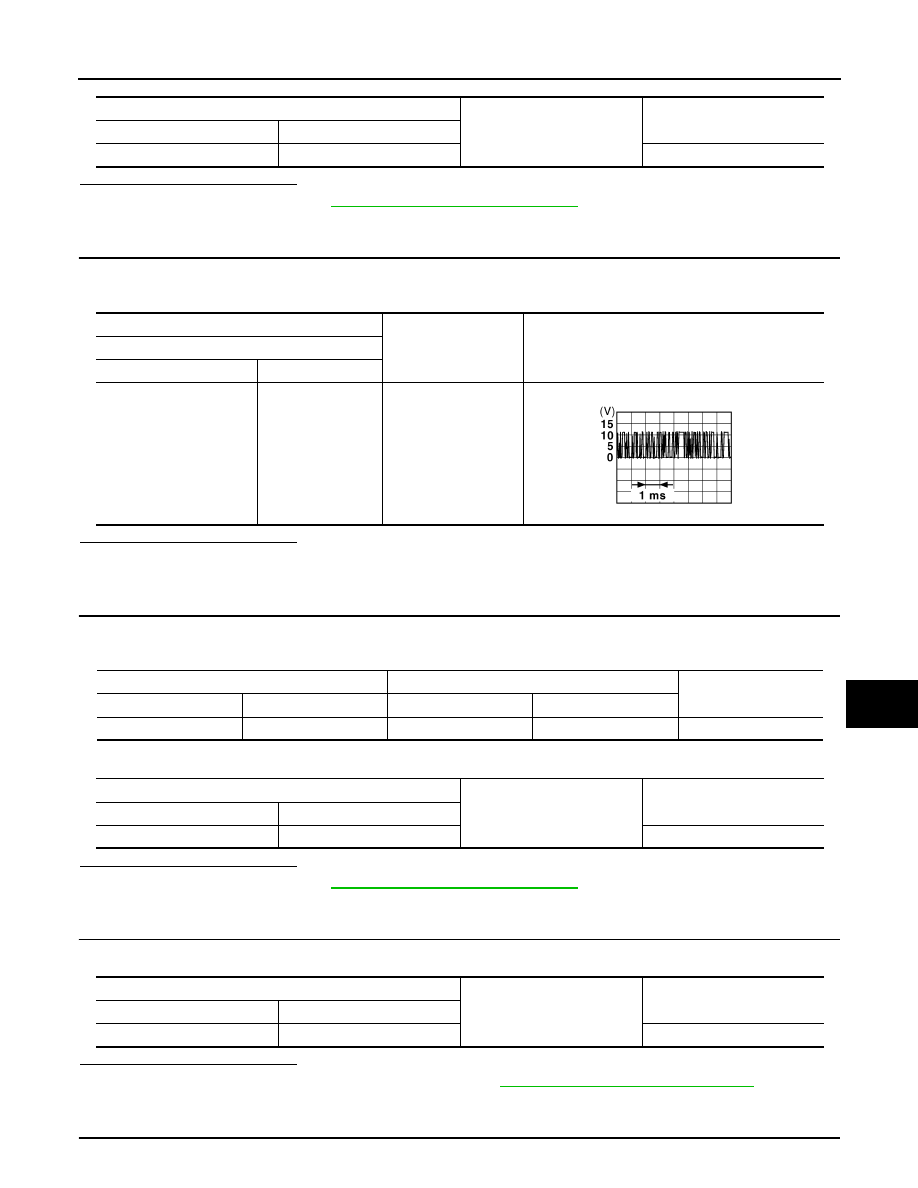

DLK-78 < COMPONENT DIAGNOSIS > [INTELLIGENT KEY SYSTEM] REMOTE KEYLESS ENTRY RECEIVER REMOTE KEYLESS ENTRY RECEIVER Description INFOID:0000000003728895 Receives Intelligent Key operation and transmits to BCM. Component Function Check INFOID:0000000003728896 1. CHECK FUNCTION With CONSULT-III Check remote keyless entry receiver (“RKE OPE COUN1”) in Data Monitor mode with CONSULT-III. Is the inspection result normal? YES >> Remote keyless entry receiver is OK. NO >> Refer to . Diagnosis Procedure INFOID:0000000003728897 1. CHECK REMOTE KEYLESS ENTRY RECEIVER OUTPUT SIGNAL 1. Turn ignition switch OFF. 2. Check signal between remote keyless entry receiver harness connector and ground with oscilloscope. Is the inspection result normal? YES >> GO TO 3. NO >> GO TO 2. 2. CHECK REMOTE KEYLESS ENTRY RECEIVER CIRCUIT 1 1. Disconnect BCM connector and remote keyless entry receiver connector 2. Check continuity between BCM harness connector and remote keyless entry receiver harness connector. 3. Check continuity between BCM harness connector and ground. Monitor item Condition RKE OPE COUN1 Checks whether value changes when operating Intelligent Key. (+) (–) Condition Signal (Reference value) Remote keyless entry receiver Connector Terminal M104 2 Ground Waiting (All door closed) When signal is received (All door closed) JMKIA0064GB JMKIA0065GB BCM Remote keyless entry receiver Continuity Connector Terminal Connector Terminal M122 83 M104 2 Existed |
