Infiniti EX35. Manual - part 387

CCS

ICC SENSOR INTEGRATED UNIT

CCS-83

< ECU DIAGNOSIS >

[INTELLIGENT CRUISE CONTROL]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

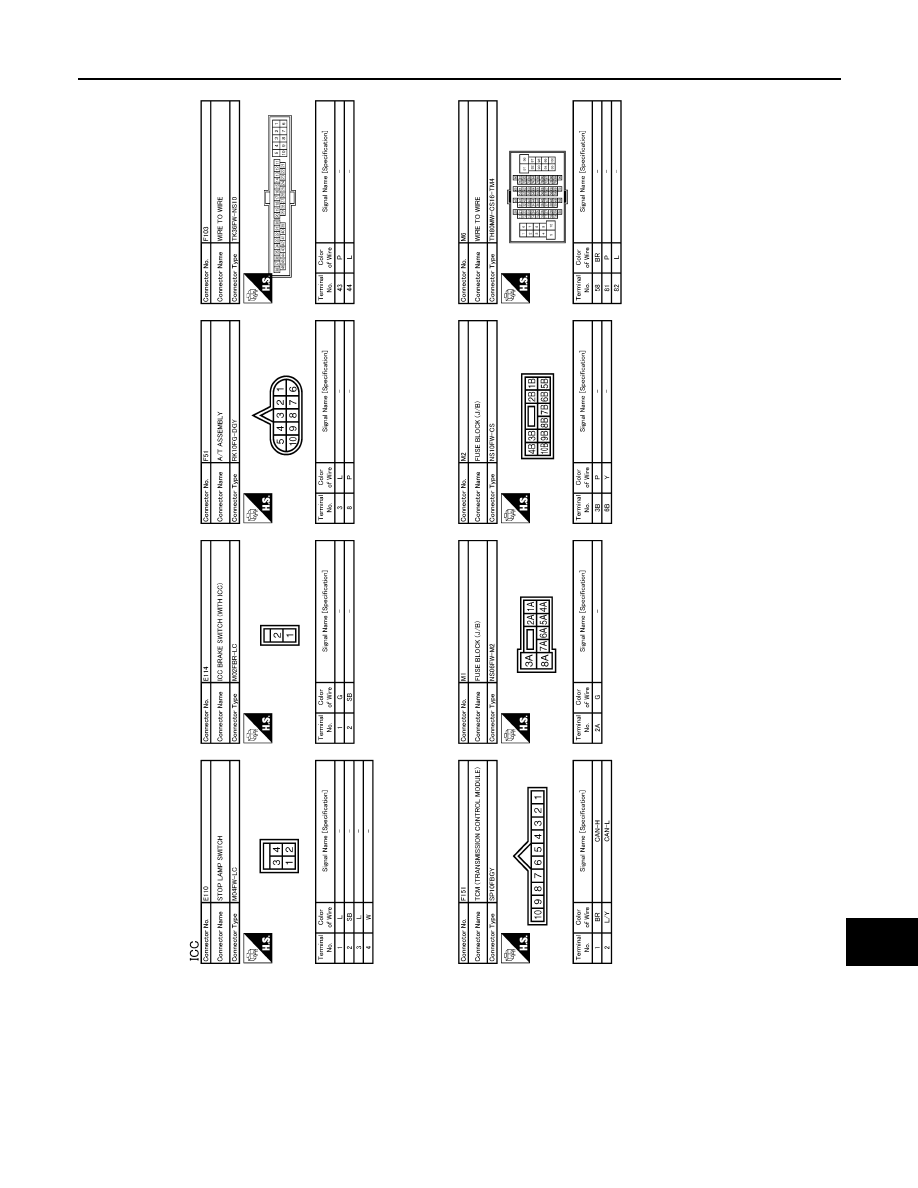

JCOWM0024GB

CCS-84

< ECU DIAGNOSIS >

[INTELLIGENT CRUISE CONTROL]

ICC SENSOR INTEGRATED UNIT

JCOWM0025GB

CCS

ICC SENSOR INTEGRATED UNIT

CCS-85

< ECU DIAGNOSIS >

[INTELLIGENT CRUISE CONTROL]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

Fail-safe

INFOID:0000000003130119

When a malfunction occurs in ICC system, a chime sounds a beep, the system is released and ICC system
warning lamp in combination meter illuminates. System setting is not accepted when malfunction is detected.

DTC Index

INFOID:0000000003130120

×

: Applicable

JCOWM0026GB

CCS-86

< ECU DIAGNOSIS >

[INTELLIGENT CRUISE CONTROL]

ICC SENSOR INTEGRATED UNIT

DTC No.

CONSULT-III
screen terms

ICC

system

warning

lamp

Fail-safe

Reference page

CONSULT-III

On board

display

Vehicle-

to-

vehicle

 distance

control

mode

Conven-

tional

(Fixed

speed)

cruise

control

mode

Brake as-

sist (With

preview

function)

C1A00

0

CONTROL UNIT

×

×

×

×

CCS-28

C1A01

1

POWER SUPPLY CIR

×

×

×

×

CCS-29

C1A02

2

POWER SUPPLY CIR 2

×

×

×

×

C1A03

3

VHCL SPEED SE CIRC

×

×

×

×

CCS-31

C1A04

4

ABS/TCS/VDC CIRC

×

×

×

×

CCS-33

C1A05

5

BRAKE SW/STOP L SW

×

×

×

×

CCS-35

C1A06

6

OPERATION SW CIRC

×

×

×

CCS-40

C1A12

12

LASER BEAM OFFCNTR

×

×

×

CCS-43

C1A13

13

STOP LAMP RLY FIX

×

×

×

CCS-44

C1A14

14

ECM CIRCUIT

×

×

×

×

CCS-51

C1A15

15

GEAR POSITION

×

×

×

CCS-53

C1A16

16

RADAR STAIN

×

×

×

CCS-55

C1A18

18

LASER AIMING INCMP

×

×

×

CCS-57

C1A21

21

UNIT HIGH TEMP

×

×

×

CCS-58

C1A24

24

NP RANGE

×

×

×

CCS-59

C1A26

26

ECD MODE MALF

×

×

×

×

CCS-61

C1A27

27

ECD PWR SUPLY CIR

×

×

×

×

CCS-63

C1A33

33

CAN TRANSMISSION ERROR

×

×

×

×

CCS-65

C1A34

34

COMMAND ERROR

×

×

×

×

CCS-66

NO DTC IS

DETECTED.

FURTHER

TESTING

MAY BE RE-

QUIRED.

55

NO DTC IS DETECTED.

FURTHER TESTING

MAY BE REQUIRED.

—

—

—

—

—

U0121

127

VDC CAN CIR2

×

×

×

×

CCS-67

U0401

120

ECM CAN CIR1

×

×

×

×

CCS-69

U0402

122

TCM CAN CIR1

×

×

×

×

CCS-71

U0415

126

VDC CAN CIR1

×

×

×

×

CCS-73

U1000

100

CAN COMM CIRCUIT

×

×

×

×

CCS-75

U1010

110

CONTROL UNIT (CAN)

×

×

×

×

CCS-76
