Infiniti EX35. Manual - part 376





CCS

C1A05 BRAKE SW/STOP LAMP SW

CCS-39

< COMPONENT DIAGNOSIS >

[INTELLIGENT CRUISE CONTROL]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

>> GO TO 27.

27.

CHECK ICC SYSTEM

1.

Erase DTC and perform ICC system action test. Then perform self-diagnosis of ICC sensor integrated
unit. (For the details on the ICC system action test, refer to

CCS-13, "ACTION TEST : Special Repair

Requirement (Vehicle-To-Vehicle Distance Control Mode)"

).

2.

Check that no abnormal condition is present in the ICC system.

>> INSPECTION END

Component Inspection (ICC BRAKE SWITCH)

INFOID:0000000003130050

1.

CHECK ICC BRAKE SWITCH

Check continuity between ICC brake switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace ICC brake switch.

Component Inspection (STOP LAMP SWITCH)

INFOID:0000000003130051

1.

CHECK STOP LAMP SWITCH

Check continuity between stop lamp switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace stop lamp switch.

terminals

Condition

Continuity

1

2

When brake pedal is depressed

Not existed

When brake pedal is released

Existed

terminals

Condition

Continuity

1

2

When brake pedal is depressed

Existed

When brake pedal is released

Not existed

3

4

When brake pedal is depressed

Existed

When brake pedal is released

Not existed

CCS-40

< COMPONENT DIAGNOSIS >

[INTELLIGENT CRUISE CONTROL]

C1A06 OPERATION SW

C1A06 OPERATION SW

Description

INFOID:0000000003130053

• To activate or deactivate the ICC system and set the vehicle speed and vehicle-to-vehicle distance, use the

ICC steering switch.

• The ICC steering switch signal is inputted to ECM. ECM transmits the data to the ICC sensor integrated unit

with CAN communication.

DTC Logic

INFOID:0000000003130054

DTC DETECTION LOGIC

NOTE:
If DTC “C1A06” is detected along with DTC “U1000” or “U0401”, first diagnose the DTC “U1000” or “U0401”.
• DTC “U1000”: Refer to

CCS-75, "Diagnosis Procedure"

.

• DTC “U0401”: Refer to

CCS-69, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003130055

1.

PERFORM SELF-DIAGNOSIS OF ICC SENSOR INTEGRATED UNIT

1.

Perform self-diagnosis of ICC sensor integrated unit.

2.

Check if DTC “U1000: CAN COMM CIRCUIT” (DTC 100) or “U0401: ECM CAN CIR 1” (DTC 120) other
than “C1A06: OPERATION SW CIRC” (DTC 6) is detected.

Is any DTC detected?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

DIAGNOSIS FOR DETECTED DTC

Perform diagnosis on the detected DTC and repair or replace the applicable item. Refer to

CCS-85, "DTC

Index"

.

>> GO TO 12.

3.

CHECK CONNECTOR OF ECM

1.

Turn ignition switch OFF.

2.

Disconnect ECM connector, and connect it securely again.

3.

Erase DTC.

4.

Operate the ICC steering switch.

5.

Perform self-diagnosis of ICC sensor integrated unit.

6.

Check if DTC “C1A06: OPERATION SW CIRC” (DTC 6) is detected.

Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 4.

4.

CHECK ECM CONNECTOR

1.

Check ECM connector housing for disconnected, loose, bent, and collapsed terminals.

2.

Repair or replace the applicable item if any abnormal condition is found.

>> GO TO 12.

5.

CHECK ICC STEERING SWITCH

DTC No.

(On board

display)

Trouble diagnosis name

DTC detecting condition

Possible cause

C1A06

(6)

OPERATION SW CIRC

If any abnormal condition is present in the input
signal from the ICC steering switch.

• ICC steering switch circuit
• ICC steering switch
• ECM

CCS

C1A06 OPERATION SW

CCS-41

< COMPONENT DIAGNOSIS >

[INTELLIGENT CRUISE CONTROL]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

1.

Turn ignition switch OFF.

2.

Disconnect ICC steering switch connector.

3.

Check ICC steering switch. Refer to

CCS-42, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

REPLACE ICC STEERING SWITCH

Replace ICC steering switch.

>> GO TO 12.

7.

CHECK ICC STEERING SWITCH SIGNAL CIRCUIT

1.

Disconnect spiral cable connector and ECM connector.

2.

Check continuity between spiral cable harness connector and ECM harness connector.

3.

Check continuity between spiral cable harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> GO TO 8.

8.

REPAIR OR REPLACE HARNESS BETWEEN SPIRAL CABLE AND ECM

Repair or replace harness between spiral cable and ECM.

>> GO TO 12.

9.

CHECK COMBINATION SWITCH (SPIRAL CABLE)

Check continuity between spiral cable terminals.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> GO TO 10.

10.

REPLACE SPIRAL CABLE

Replace spiral cable.

>> GO TO 12.

11.

PERFORM SELF-DIAGNOSIS OF ECM

1.

Perform self-diagnosis of ECM.

Spiral cable

ECM

Continuity

Connector

Terminal Connector

Terminal

M36

25

M107

101

Existed

32

108

Spiral cable

Ground

Continuity

Connector

Terminal

M36

25

Not existed

32

M36

M303

Continuity

Terminal Terminal

25

13

Existed

32

16

CCS-42

< COMPONENT DIAGNOSIS >

[INTELLIGENT CRUISE CONTROL]

C1A06 OPERATION SW

2.

Repair or replace applicable item. Refer to

EC-514, "DTC Index"

.

>> GO TO 12.

12.

CHECK ICC SYSTEM

1.

Erase DTC and perform ICC system action test. Then perform self-diagnosis of ICC sensor integrated
unit. (For the details on the ICC system action test, refer to

CCS-13, "ACTION TEST : Special Repair

Requirement (Vehicle-To-Vehicle Distance Control Mode)"

).

2.

Check that no abnormal condition is present in the ICC system.

>> INSPECTION END

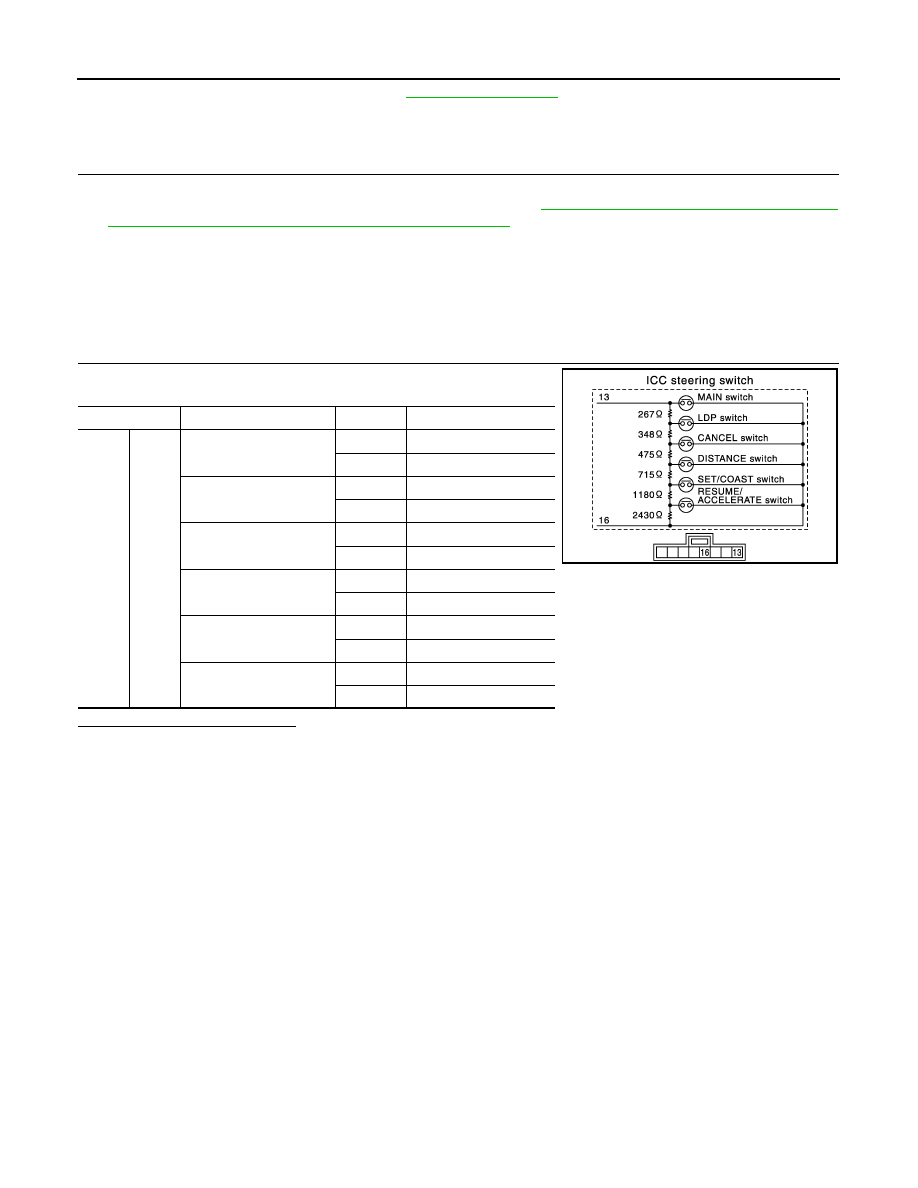

Component Inspection

INFOID:0000000003130056

1.

CHECK ICC STEERING SWITCH

Check resistance between terminals by pressing each switch.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace ICC steering switch.

Terminal

Switch

Condition

Resistance [

]

13

16

MAIN

Pressed

Approx. 0

Released

Approx. 5415

LDP

Pressed

Approx. 267

Released

Approx. 5415

CANCEL

Pressed

Approx. 615

Released

Approx. 5415

DISTANCE

Pressed

Approx. 1090

Released

Approx. 5415

SET/COAST

Pressed

Approx. 1805

Released

Approx. 5415

RESUME/ACCELERATE

Pressed

Approx. 2985

Released

Approx. 5415

JPOIA0109ZZ
