• Perform the ICC system action test to check the ICC system operation status. Refer to

CCS-13, "ACTION

TEST : Special Repair Requirement (Vehicle-To-Vehicle Distance Control Mode)"

.

>> GO TO 2.

2.

PERFORM SELF-DIAGNOSIS OF ICC SENSOR INTEGRATED UNIT

1.

Perform self-diagnosis of ICC sensor integrated unit.

2.

Check if DTC is detected.

Is any DTC detected?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

CHECK SELF-DIAGNOSIS RESULTS

1.

Check the DTC detected in the self-diagnosis results.

2.

Perform the relevant diagnosis by referring to the DTC index. Refer to

CCS-85, "DTC Index"

.

NOTE:
If “U1000: CAN COMM CIRCUIT” (DTC 100) is displayed, start with the diagnosis for the CAN communication
system. Refer to

CCS-75, "Diagnosis Procedure"

.

>> GO TO 5.

4.

DIAGNOSIS BY SYMPTOM

Referring to the diagnosis chart by symptom, perform the relevant diagnosis. Refer to

CCS-87, "Symptom

Table"

.

>> GO TO 5.

5.

REPAIR OR REPLACE APPLICABLE ITEM

Repair or replace applicable item.

>> GO TO 6.

6.

CHECK AFTER REPAIRING OR REPLACING THE APPLICABLE ITEM

1.

Erase DTC.

2.

Perform the self-diagnosis for the ICC sensor integrated unit again after repairing or replacing the applica-
ble item.

3.

Check if DTC is detected.

Is any DTC detected?

YES

>> GO TO 3.

NO

>> GO TO 7.

7.

CHECK ICC SYSTEM

Test the ICC system for normal operation to see if the malfunction symptom is solved and no other symptoms
are present.
No symptoms?

YES

>> INSPECTION END

NO

>> GO TO 4.

CCS-8

< BASIC INSPECTION >

[INTELLIGENT CRUISE CONTROL]

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000003130019

Always perform the laser beam aiming adjustment after replacing the ICC sensor integrated unit. In addition,
test the ICC system operations to see if it functions normally.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000003130020

1.

LASER BEAM AIMING ADJUSTMENT

Adjust laser beam aiming. Refer to

CCS-8, "LASER BEAM AIMING ADJUSTMENT : Special Repair Require-

ment (Preparation)"

.

>> GO TO 2.

2.

ICC SYSTEM ACTION TEST

1.

Perform the ICC system action test. Refer to

CCS-13, "ACTION TEST : Special Repair Requirement

(Vehicle-To-Vehicle Distance Control Mode)"

.

2.

Check that the ICC system operates normally.

>> INSPECTION END

LASER BEAM AIMING ADJUSTMENT

LASER BEAM AIMING ADJUSTMENT : Description

INFOID:0000000003130021

OUTLINE OF LASER BEAM AIMING ADJUSTMENT

Adjust the laser beam aiming every time the ICC sensor integrated unit is removed or installed.
1.

Set up the ICC target board [SST: KV99110100 (J-45718)].

2.

Adjust the sensor following the procedure on CONSULT-III. (Turn manually the screw for up-down position
adjustment. ICC sensor integrated unit automatically adjust the right-left position.)

CAUTIONARY POINTS FOR LASER BEAM AIMING

CAUTION:

• Adjust laser beam aiming at a horizontal place as far as 12 m (39 ft) forward the vehicle can be seen.
• Adjust laser beam aiming 5 seconds after starting engine.
• Never view ICC sensor integrated unit body window directly during laser beam aiming adjustment.
• Follow the CONSULT-III when adjusting the laser beam aiming (laser beam aiming adjustment can-

not be operated without CONSULT-III).

• Never ride on vehicle during laser beam aiming adjustment.
• Idle and turn headlamps OFF during laser beam aiming adjustment.

LASER BEAM AIMING ADJUSTMENT : Special Repair Requirement (Preparation)

INFOID:0000000003130022

1.

PREPARATION OF BEFORE LASER BEAM AIMING ADJUSTMENT

1.

Adjust the tire pressure to the specified value.

2.

See that there is no load in the vehicle.

3.

Fill up the fuel tank full, and check coolant and engine oil are filled up to correct level.

4.

Shift the selector lever to the “P” range and release the parking brake.

CCS

INSPECTION AND ADJUSTMENT

CCS-9

< BASIC INSPECTION >

[INTELLIGENT CRUISE CONTROL]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

5.

Clean the ICC sensor integrated unit body window with a soft
cloth.

>> Go to

CCS-9, "LASER BEAM AIMING ADJUSTMENT :

Special Repair Requirement (Setting The ICC Target
Board)"

.

LASER BEAM AIMING ADJUSTMENT : Special Repair Requirement (Setting The ICC
Target Board)

INFOID:0000000003130023

Accurate ICC target board setting is required for the laser beam aiming adjustment.

CAUTION:

ICC system does not function normally if laser beam aiming is not accurate.

1.

ADJUSTING HEIGHT OF THE ICC TARGET BOARD

1.

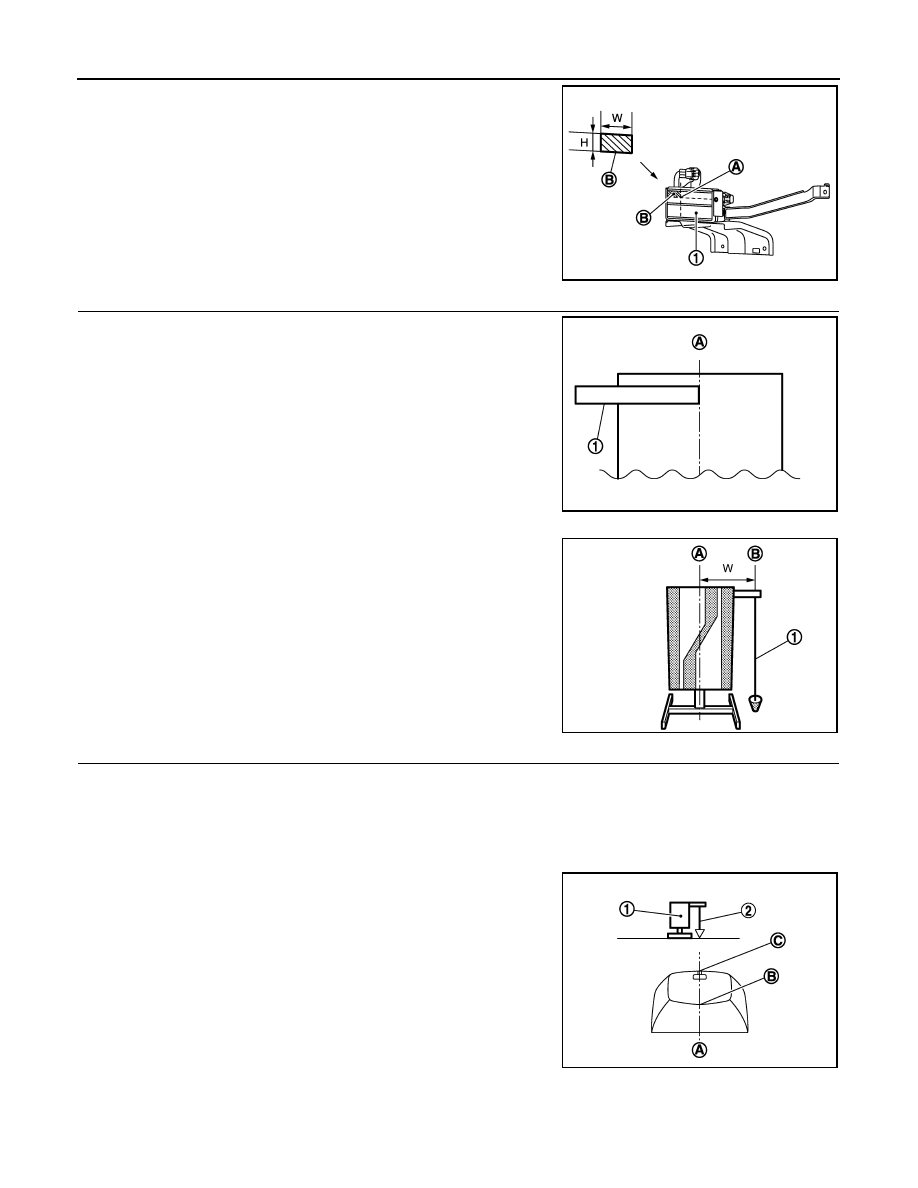

Attach a ruler (2) at a position 42 mm (1.65 in) (H) below the
center (A) of the ICC target board (1).

2.

Adjust the height of the ICC target board aligning the upside tip
of the ruler (1) with the center of laser beam axis (A).

NOTE:
• The center of laser beam axis (A) is located at 38 mm (1.5 in) (W)

from the left side and 22 mm (0.87 in) (H) from the top of the ICC
sensor integrated unit from a front view of vehicle.

1:

ICC sensor integrated unit

JPOIA0127ZZ

3

:  Adjust  nut

b

:  90

°

JPOIA0118ZZ

2

: ICC sensor integrated unit

JPOIA0114ZZ

JPOIA0107ZZ

CCS-10

< BASIC INSPECTION >

[INTELLIGENT CRUISE CONTROL]

INSPECTION AND ADJUSTMENT

• To identify the center of laser beam axis (A) easily, prepare a piece

of paper (B) cut to the size of 38 mm (1.5 in) (W)

×

22 mm (0.87 in)

(H) and attach it on the upper left point of the ICC sensor inte-
grated unit (1).

>> GO TO 2.

2.

ADJUSTING THE RIGHT-LEFT POSITION OF THE ICC TARGET BOARD

1.

Attach a ruler (1) or equivalent tool with a length of 450 mm
(17.72 in) or more to the back face of the ICC target board cen-
ter (A) in the leftward direction.

2.

Suspend a thread with weight (1) at the point (B) rightward from
the ICC target board center (A).

>> GO TO 3.

3.

SETTING THE ICC TARGET BOARD

1.

Suspend a thread with weight on tip from the center of the front and rear bumpers. Then, mark the center
points on the ground as each weight points.

2.

Link the front and rear bumpers center points marked on the ground and extend a straight line ahead.
Then mark a point 3.9 m (12.8 ft) position ahead of the front bumper. Then, adjust the position of the ICC
target board so that the weight come on the top of the marked point [3.9 m (12.8 ft) position ahead of the
front bumper] and face to the vehicle.

3.

Adjust the position of the ICC target board (1) so that the
extended line (A) that links the center of the rear window glass
(the center of the rear window defogger pattern) (B) and the cen-
ter of the windshield (the setting part of the room mirror) (C)
align with the weight suspended (2) from the ICC target board.

4.

Remove the thread suspended to the right side of ICC target board and suspend a thread with weight on
tip on the center of the ICC target board. Then mark the point of weight on the ground.

JPOIA0108ZZ

JSOIA0024ZZ

W [mm (in)]

:257 (10.12)

JSOIA0016ZZ
